Overhead Control Panel (OCP) Control Module PE54.21-U-2107BA
Overhead Control Panel (OCP) Control Module PE54.21-U-2107BA - control module N70

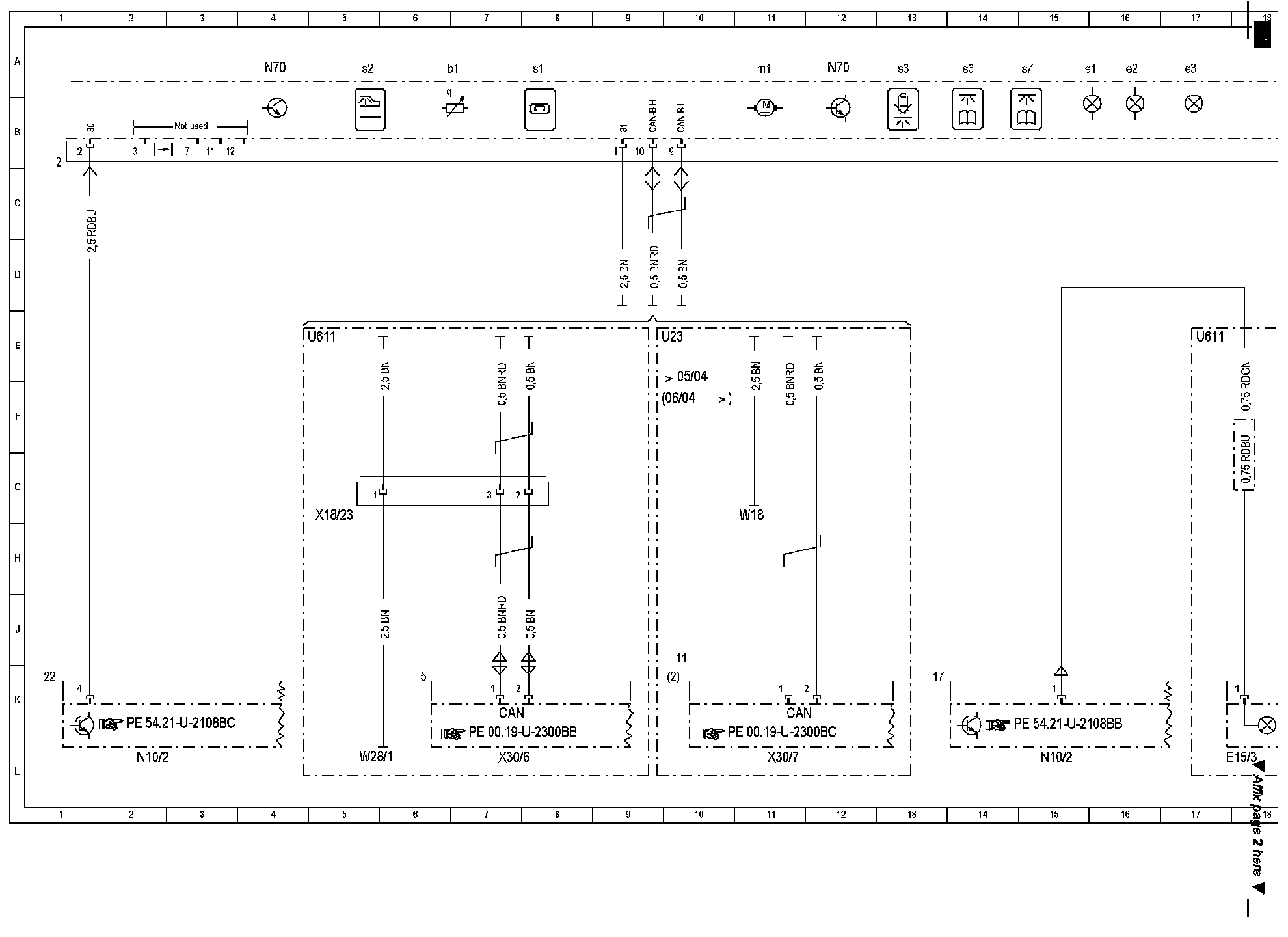

Wiring Diagram (Part 1):

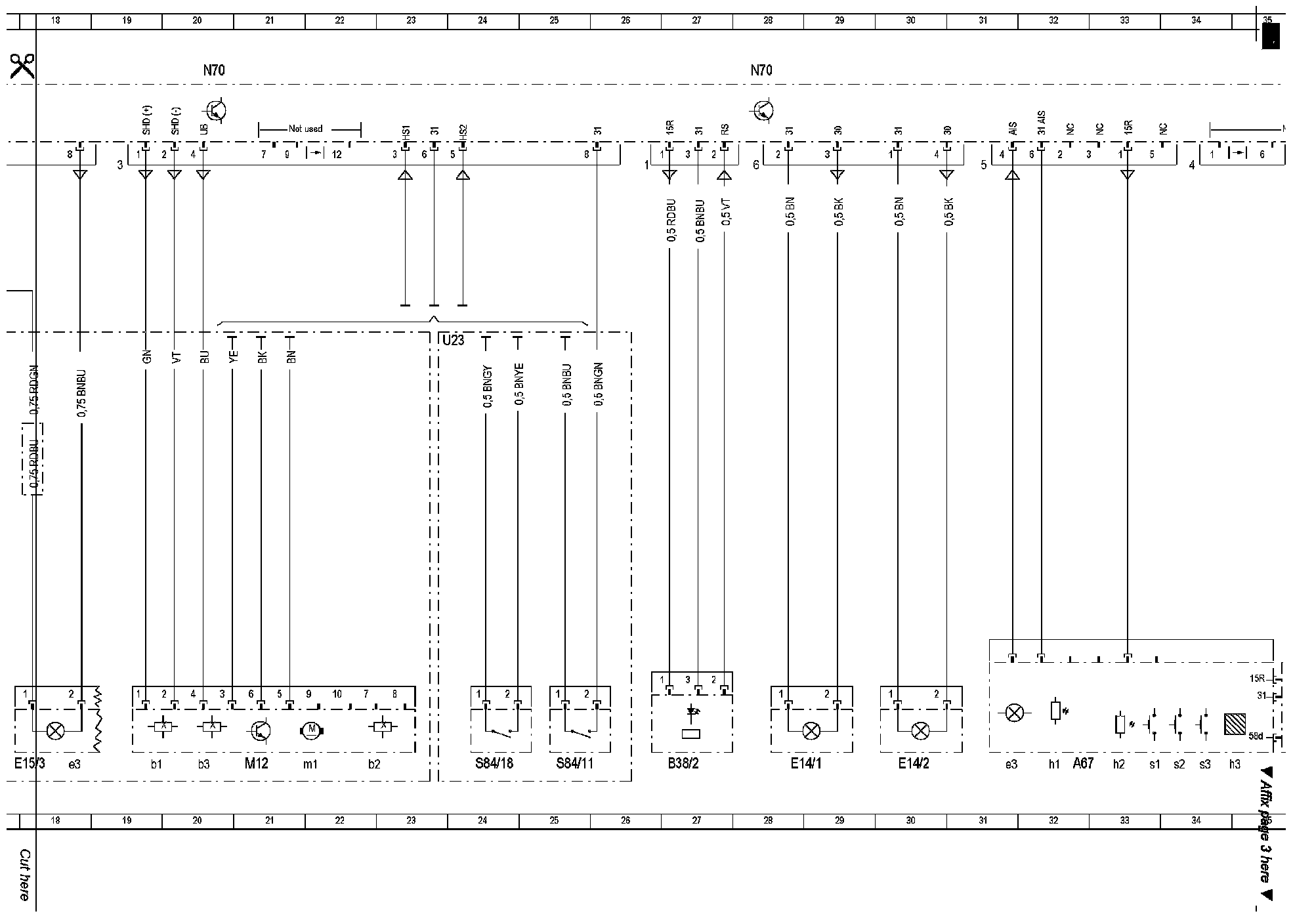

Wiring Diagram (Part 2):

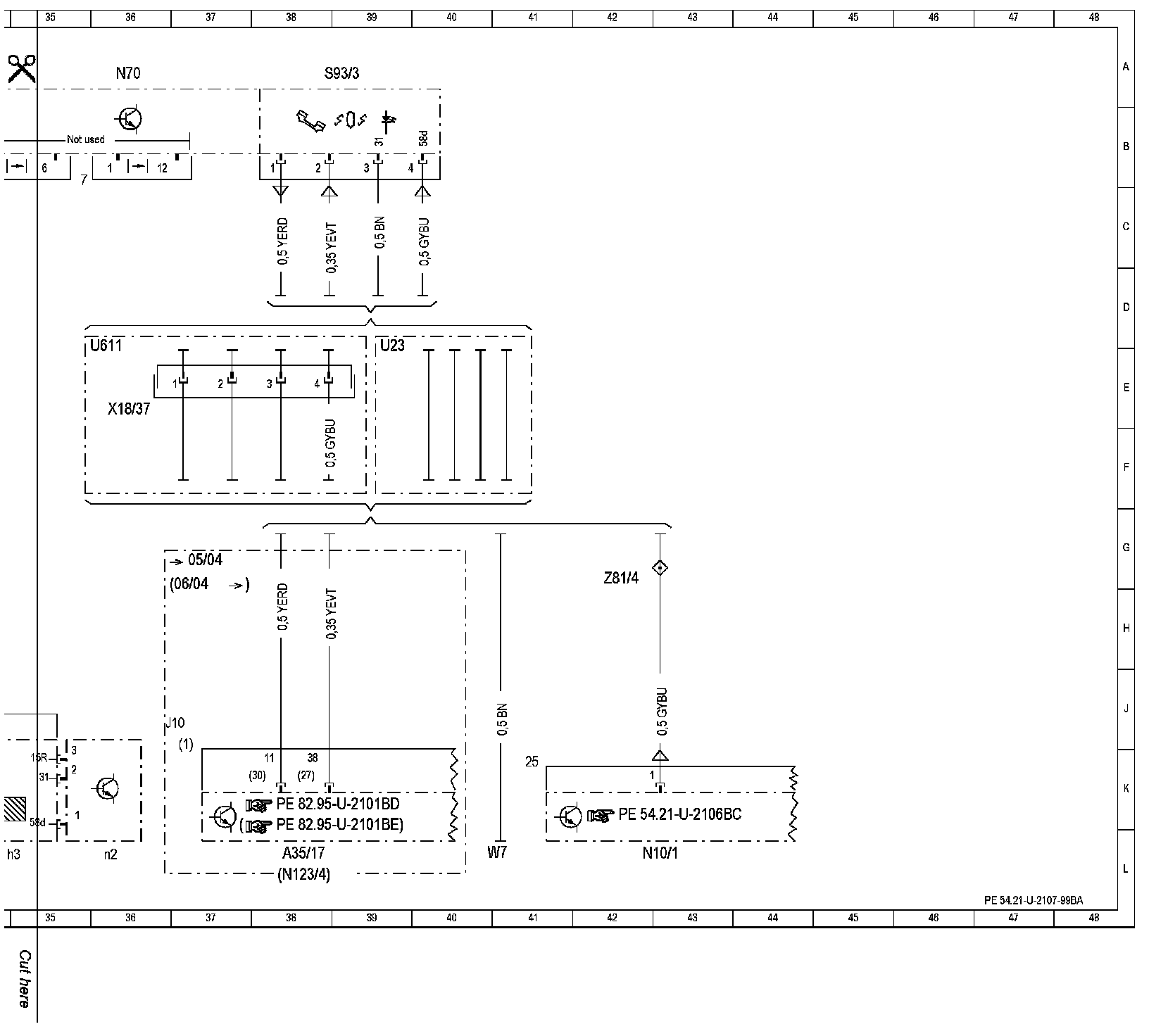

Wiring Diagram (Part 3):

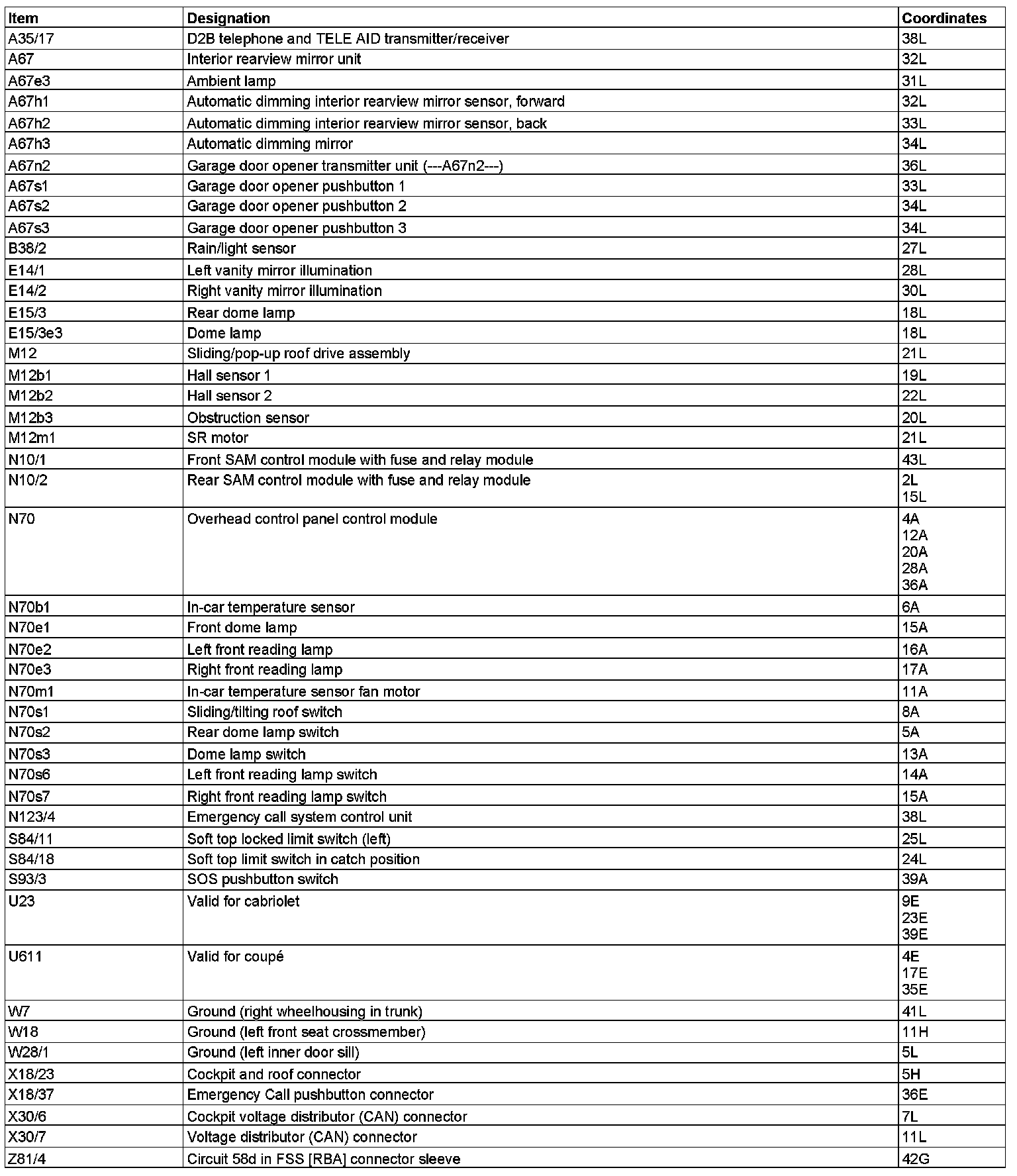

Component Description/Coordinates, A35/17 To Z81/4:
Component Locations: Component Location photographs can be found via their component names at the vehicle level.
Component Locations
