SAM Control Module With Front Fuse and Relay Module (N10/1) PE54.21-U-2106BC

SAM Control Module With Front Fuse And Relay Module (N10/1) PE54.21-U-2106BC
- Sheet 3

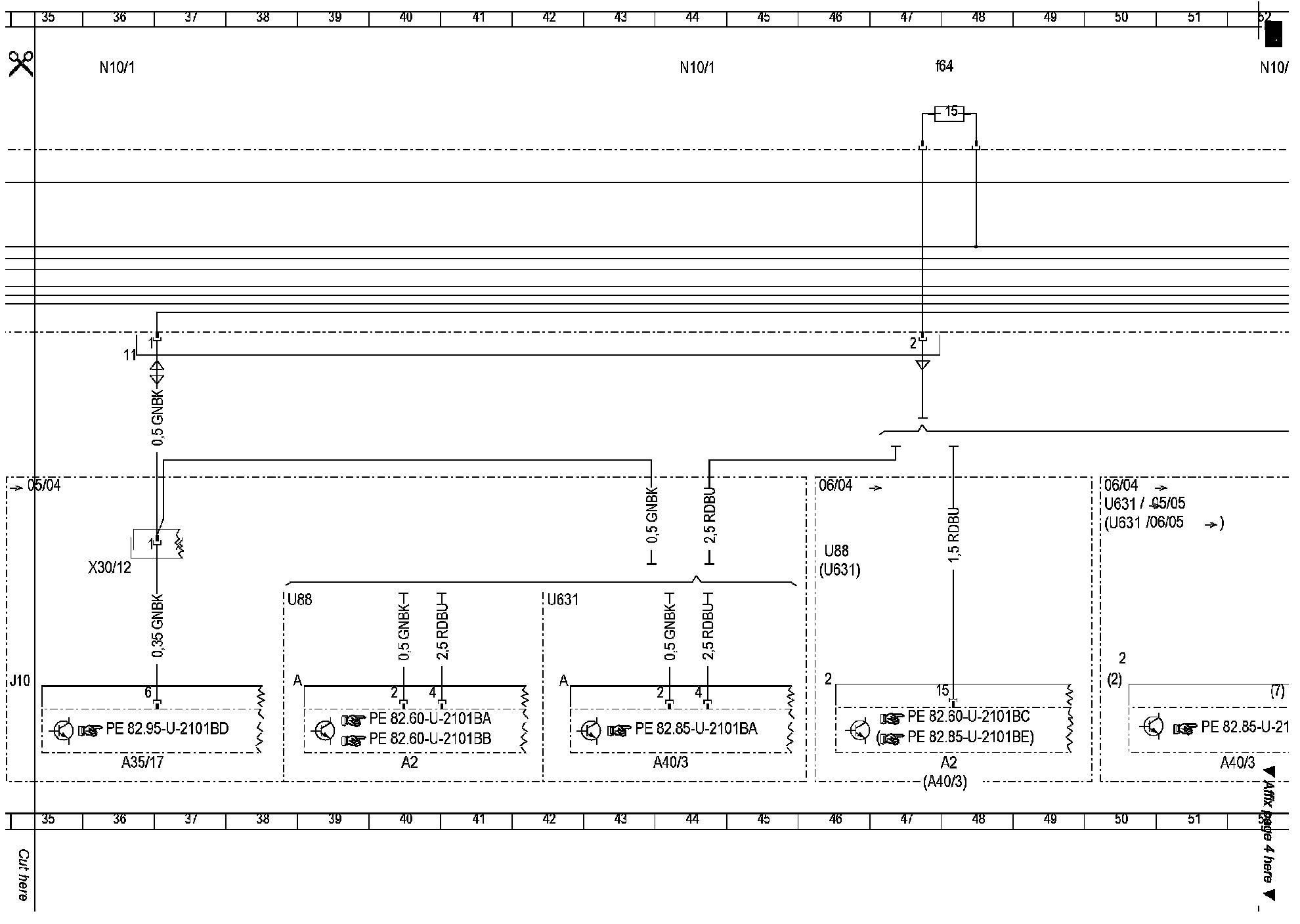

Wiring Diagram (Part 1):

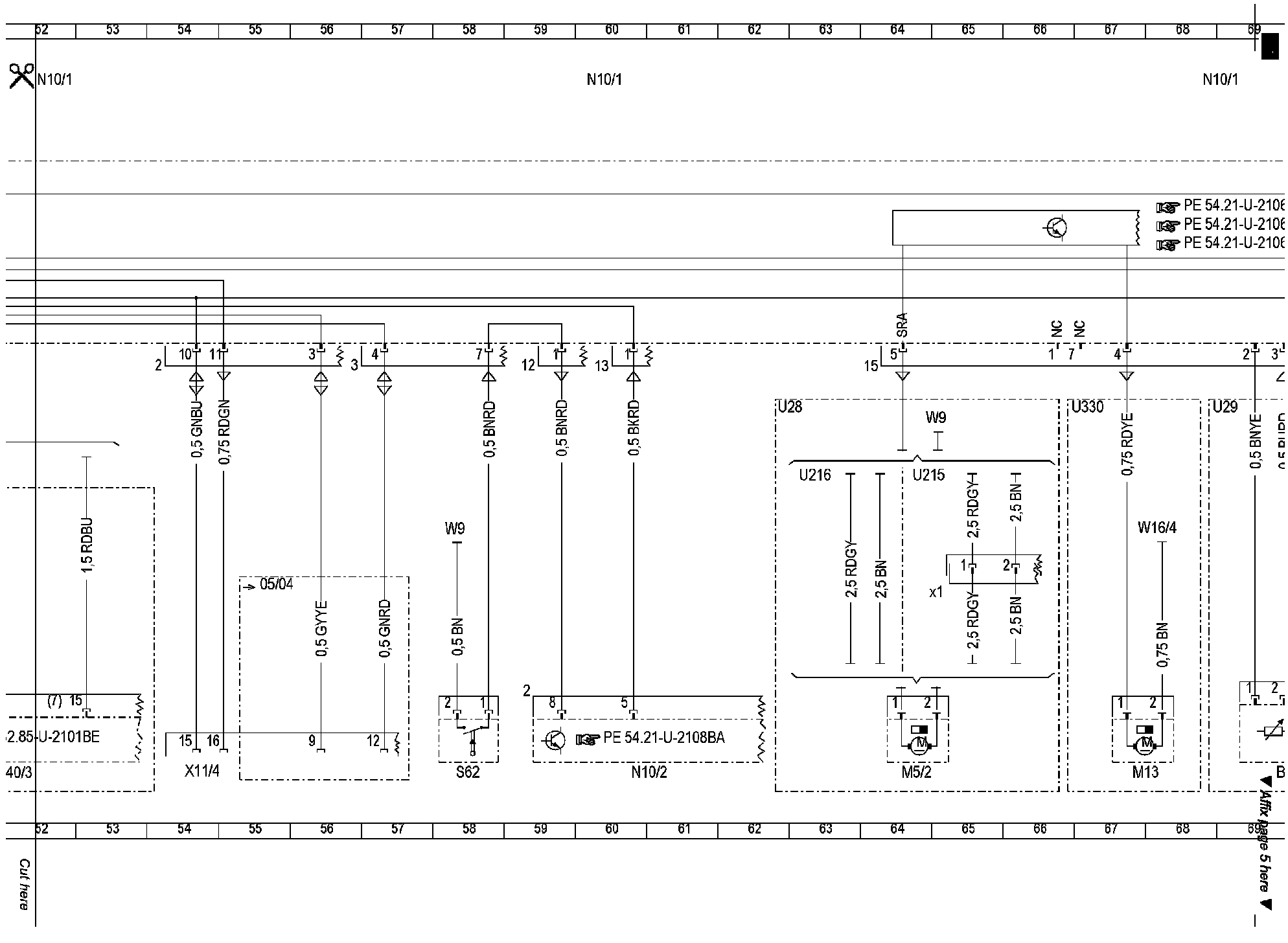

Wiring Diagram (Part 2):

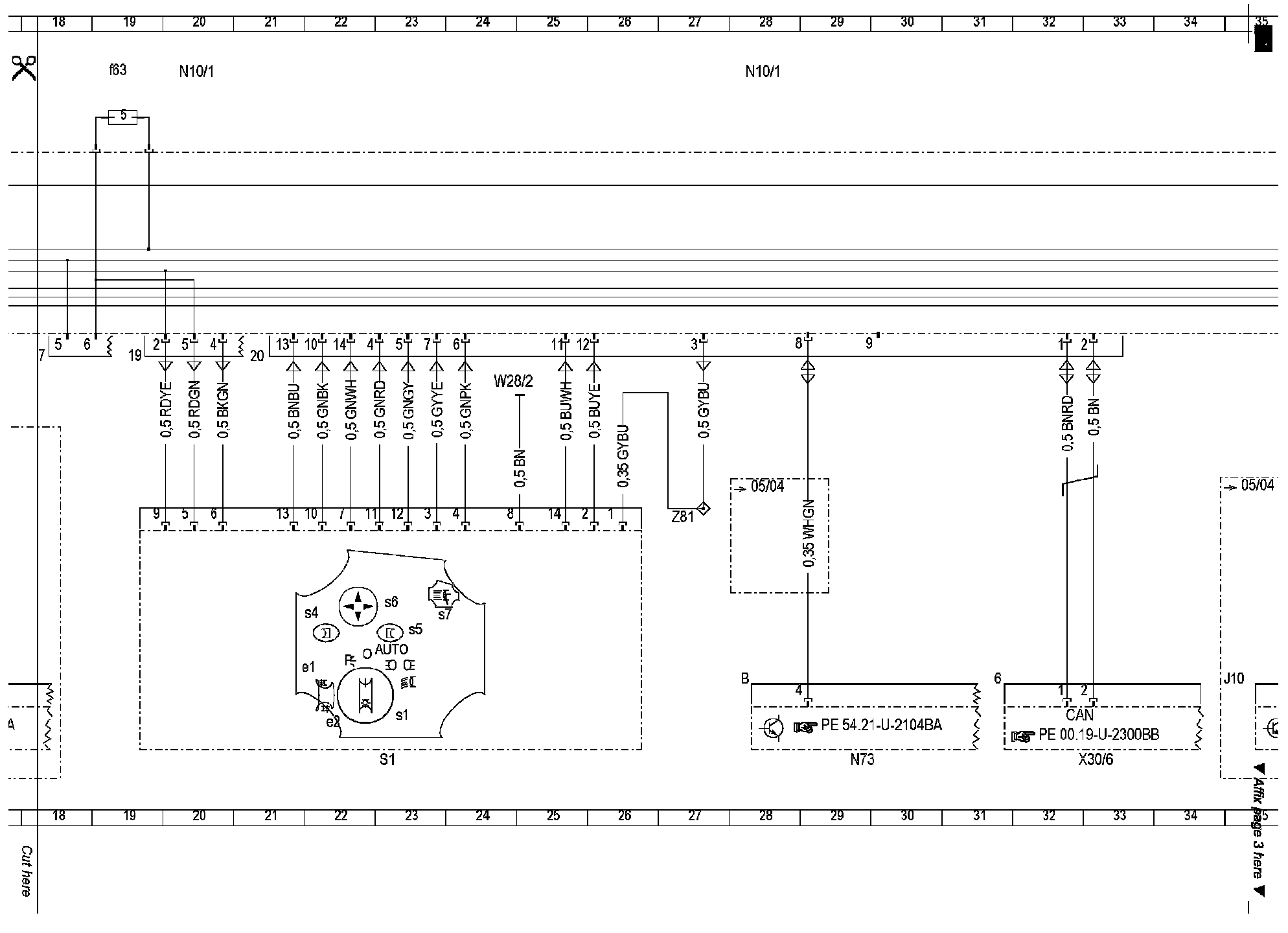

Wiring Diagram (Part 3):

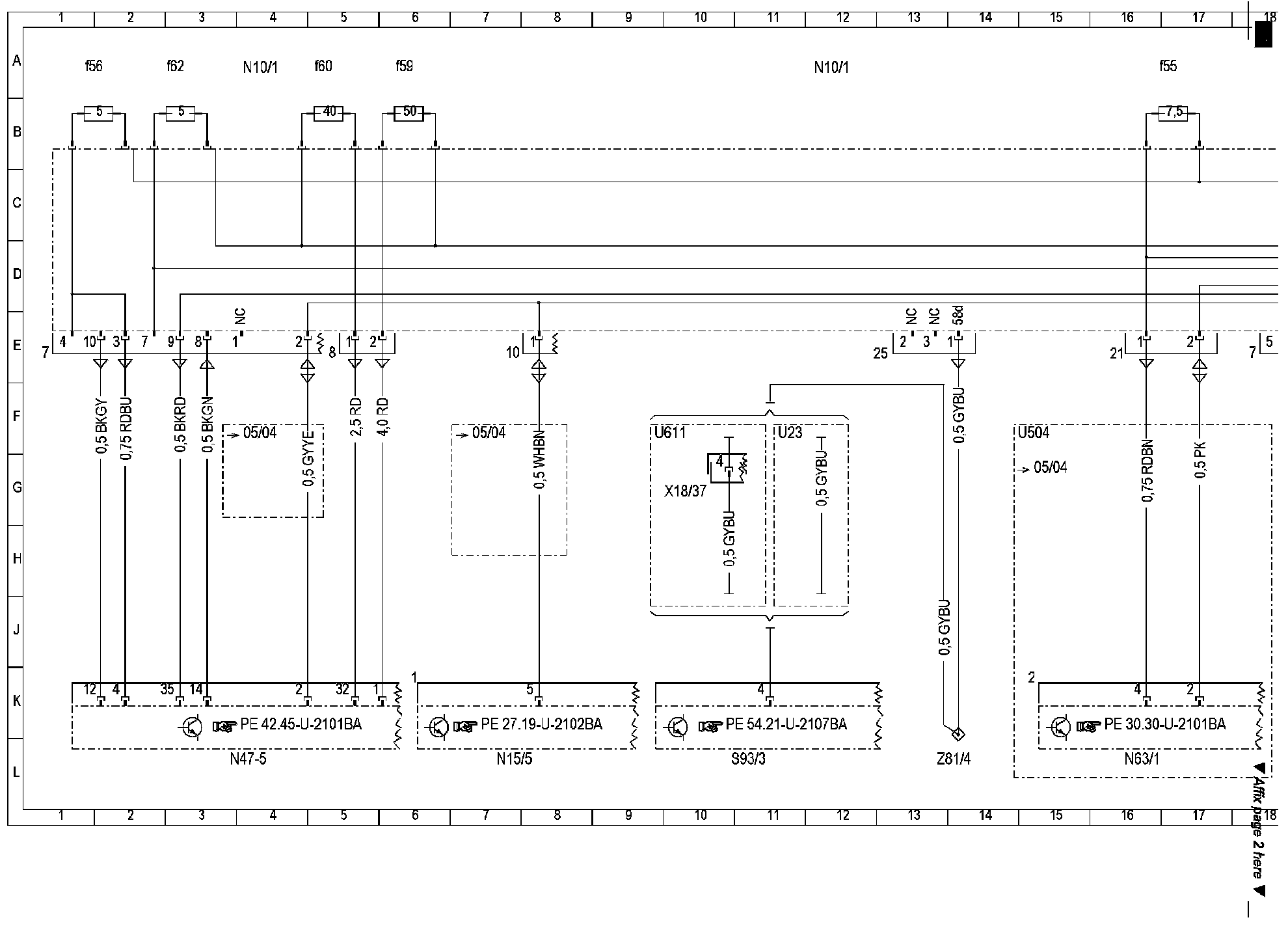

Wiring Diagram (Part 4):

Wiring Diagram (Part 5):

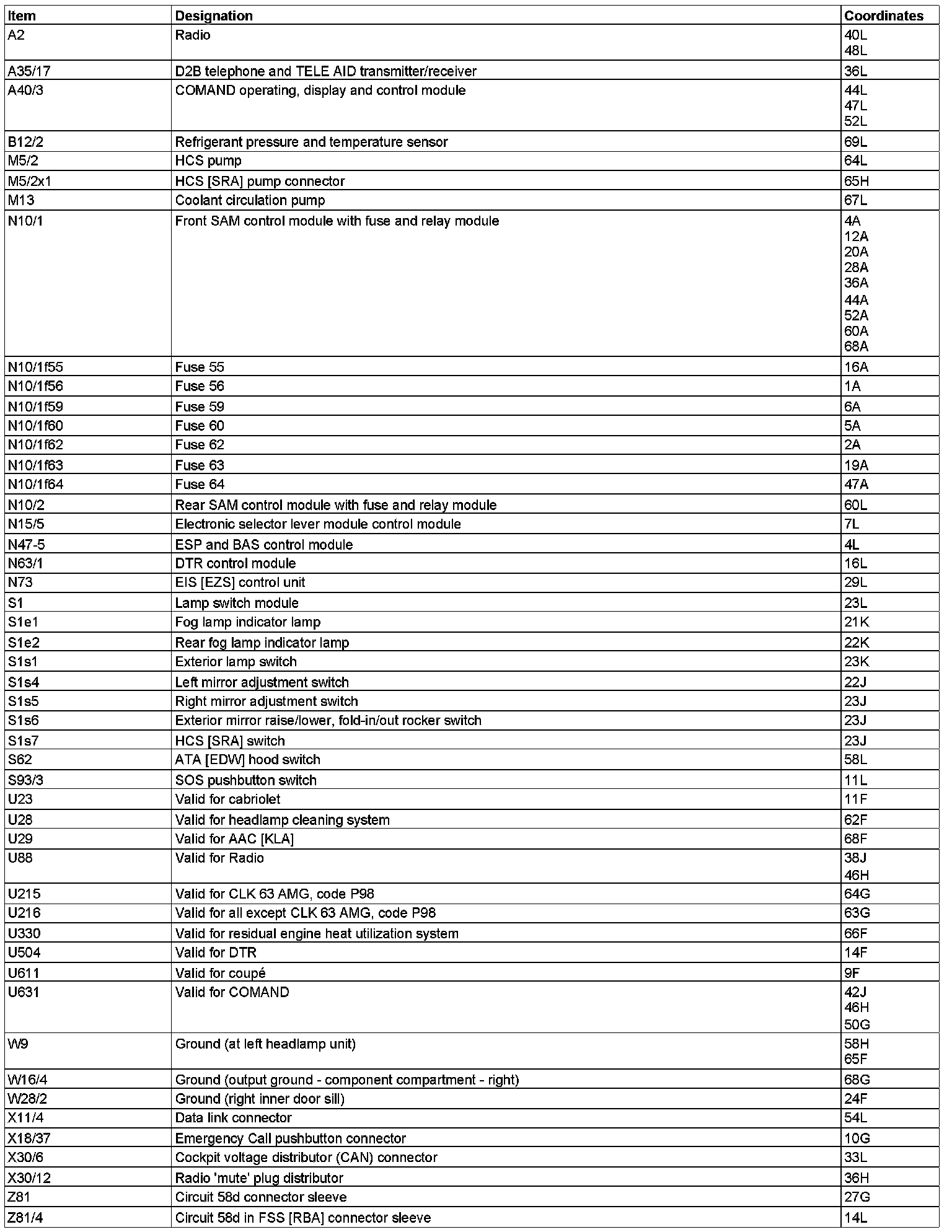

Component Description/Coordinates, A2 To Z81/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
