SAM Control Module With Rear Fuse and Relay Module (N10/2) PE54.21-U-2108BB

SAM Control Module With Rear Fuse And Relay Module (N10/2) PE54.21-U-2108BB
- Sheet 2

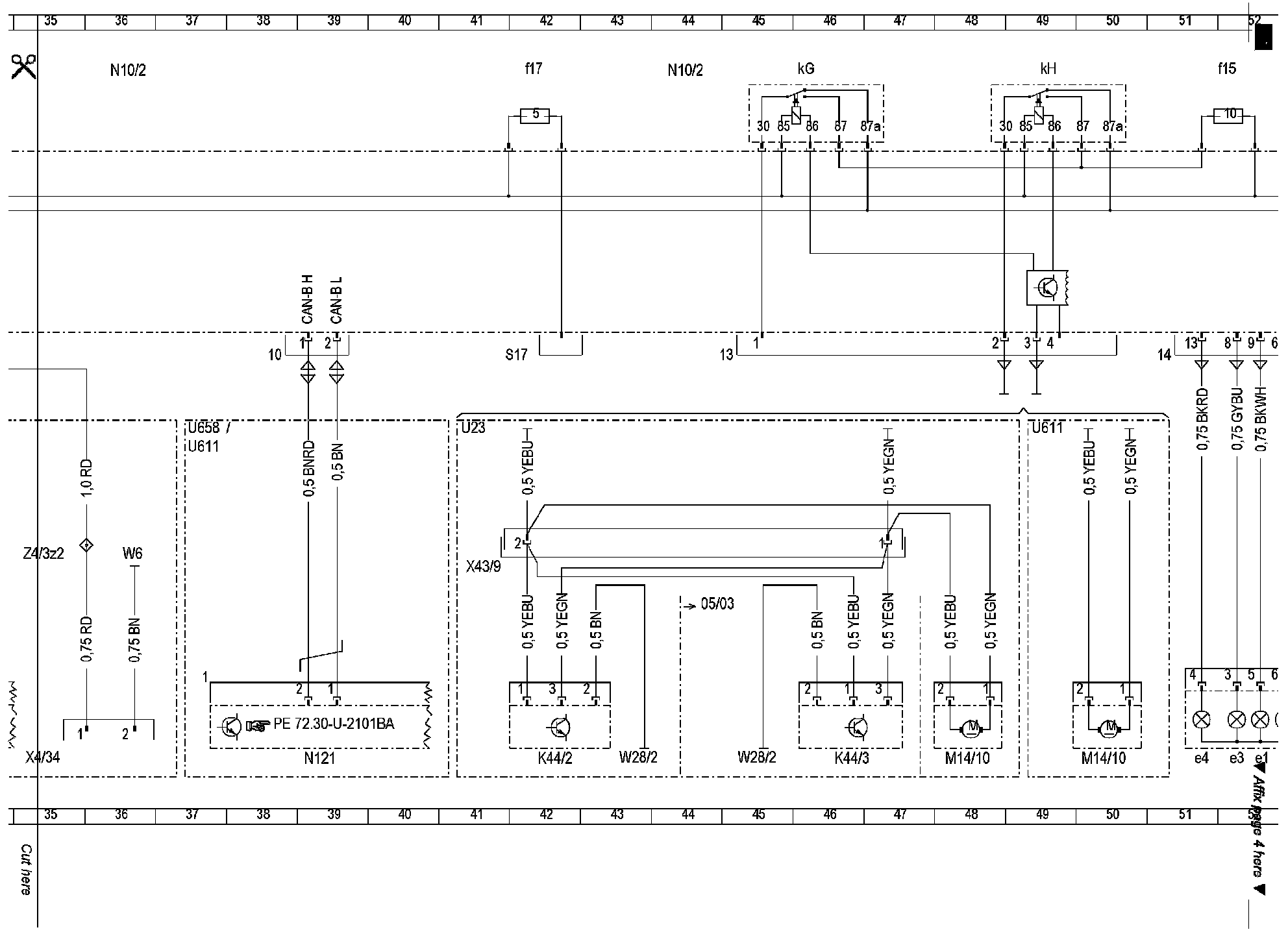

Wiring Diagram (Part 1):

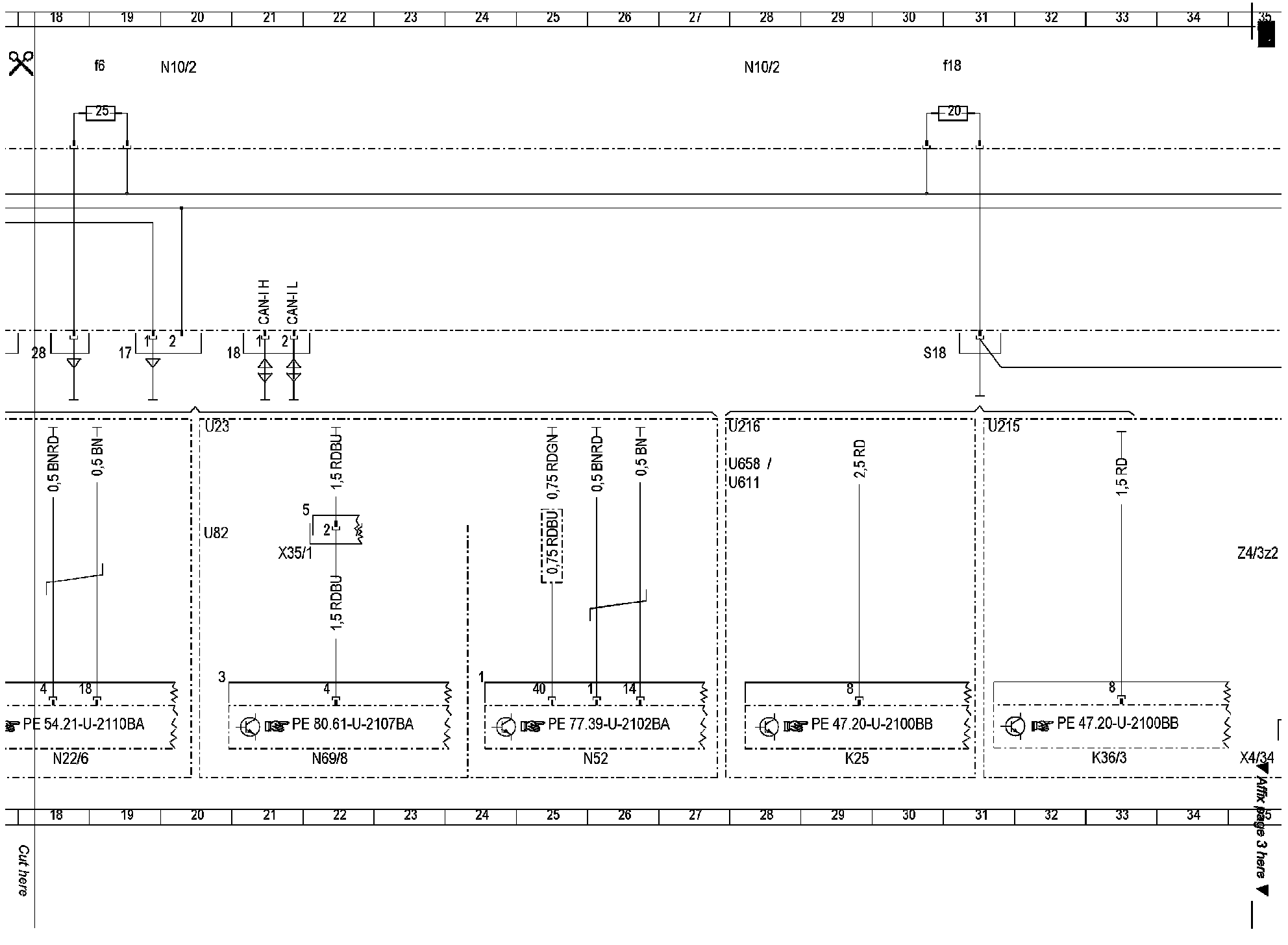

Wiring Diagram (Part 2):

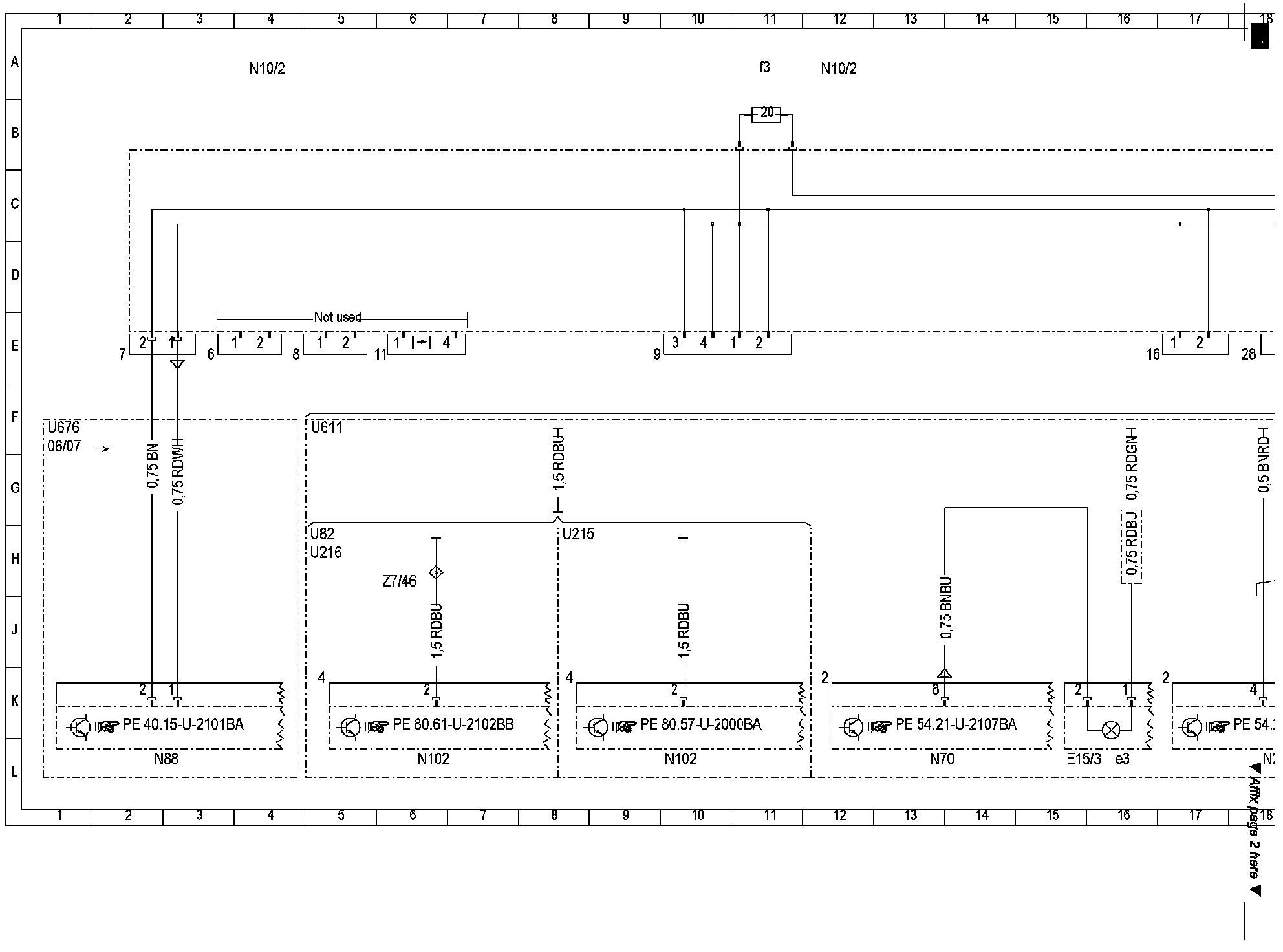

Wiring Diagram (Part 3):

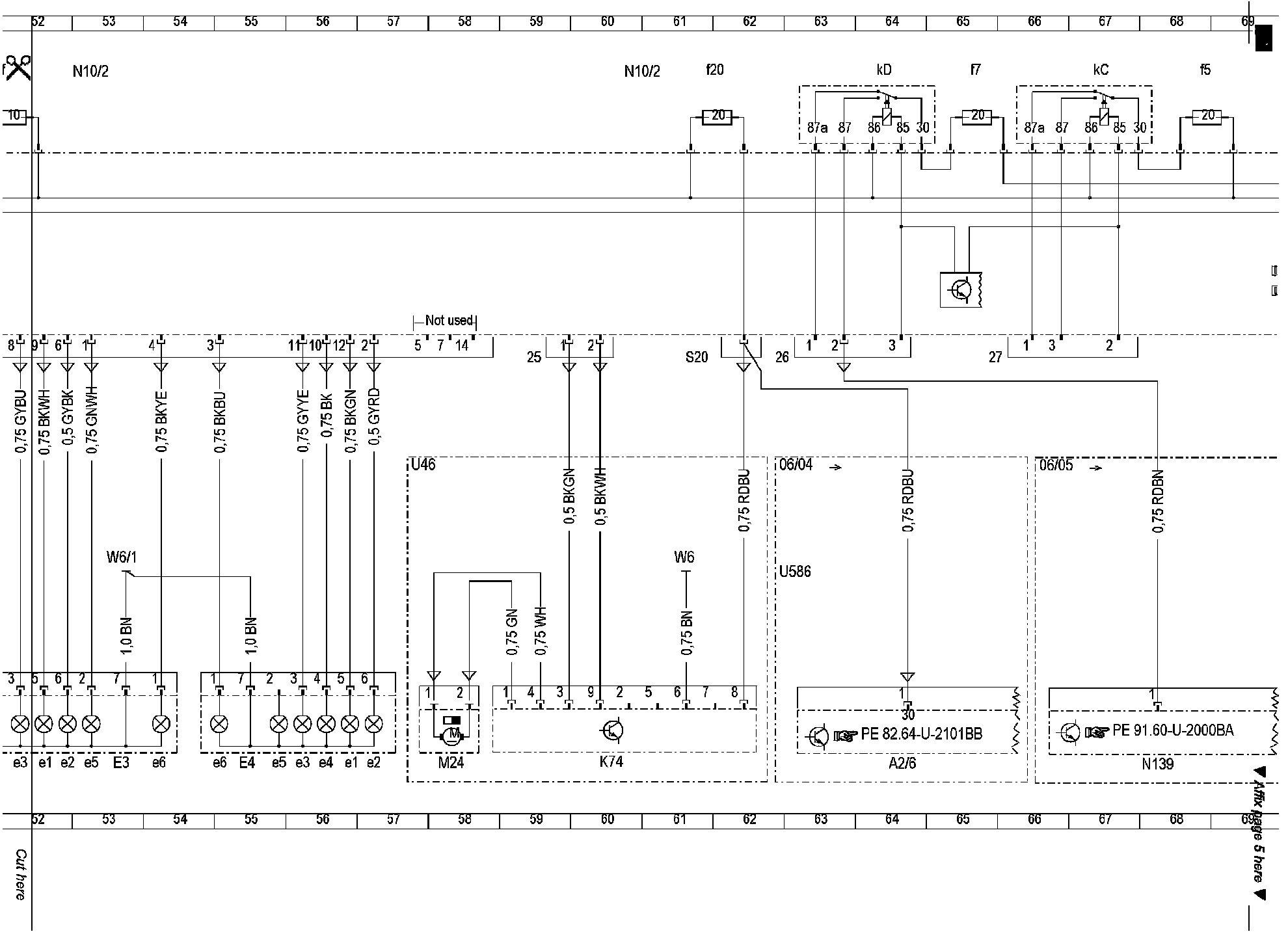

Wiring Diagram (Part 4):

Wiring Diagram (Part 5):

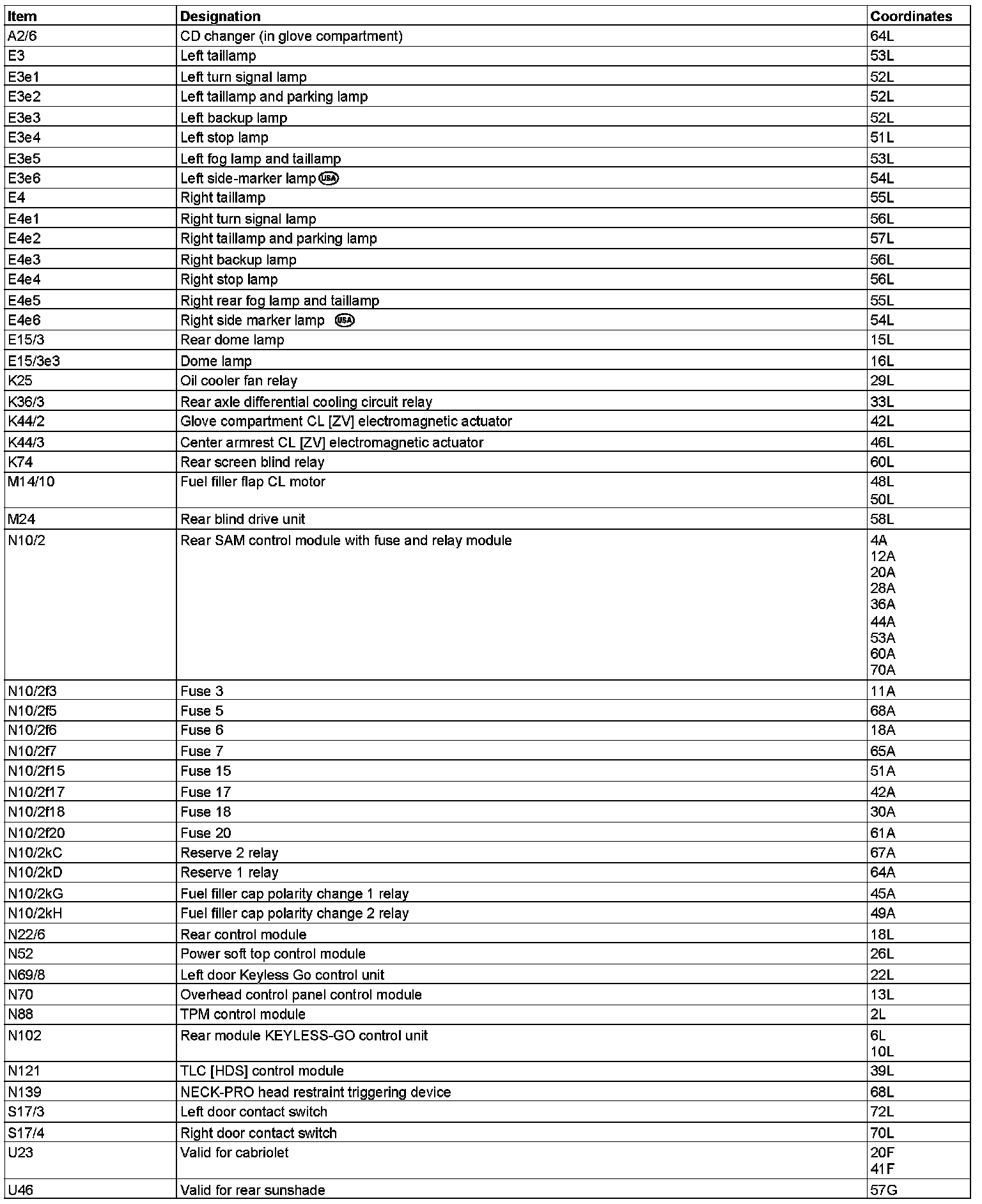

Component Description/Coordinates, A2/6 To U46:

Component Description/Coordinates, U82 To Z7/46:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
