Upper Control Panel (UCP) Control Module PE54.21-U-2119BA
Upper Control Panel (UCP) Control Module PE54.21-U-2119BA - control module N72/1

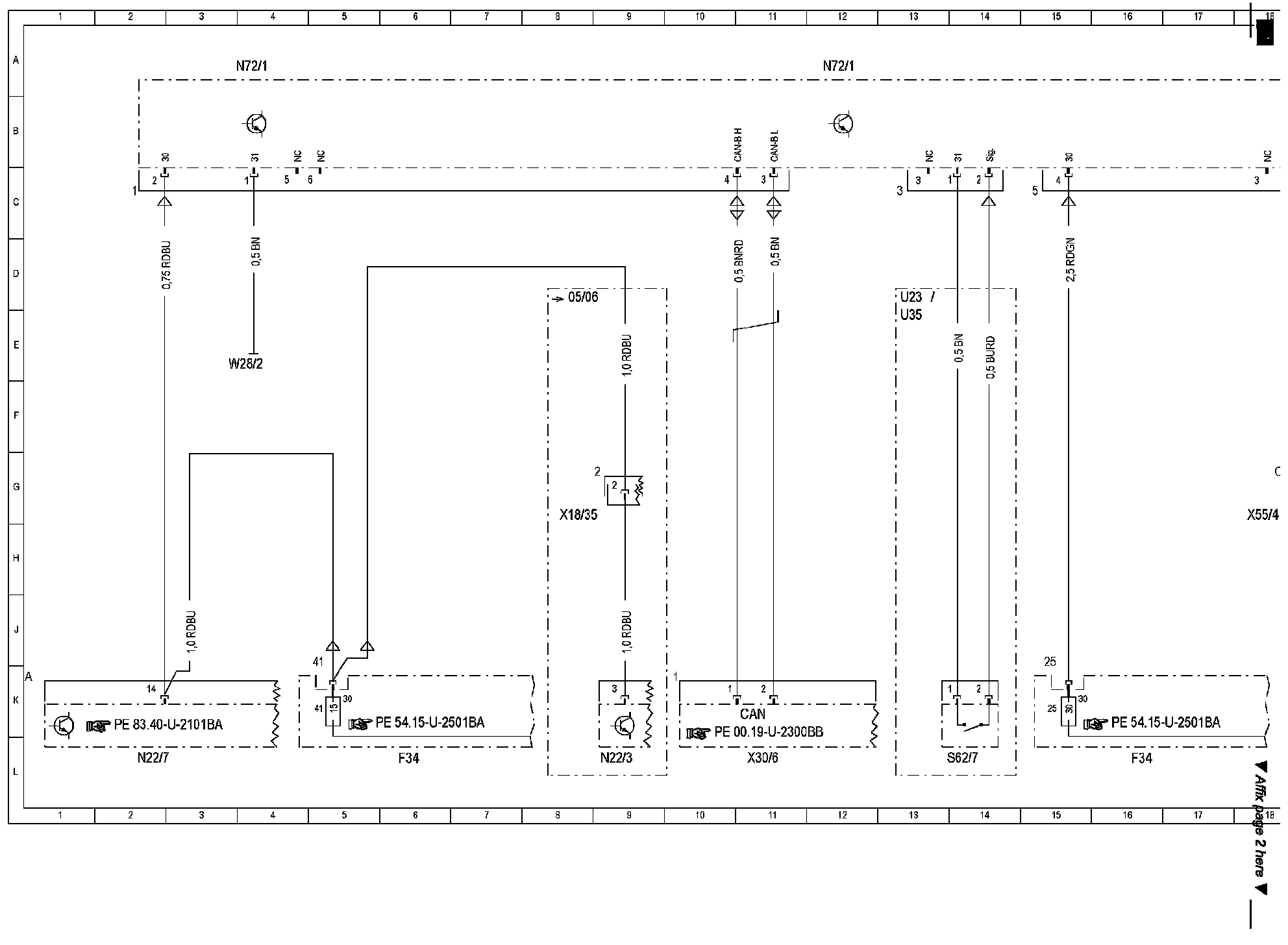

Wiring Diagram (Part 1):

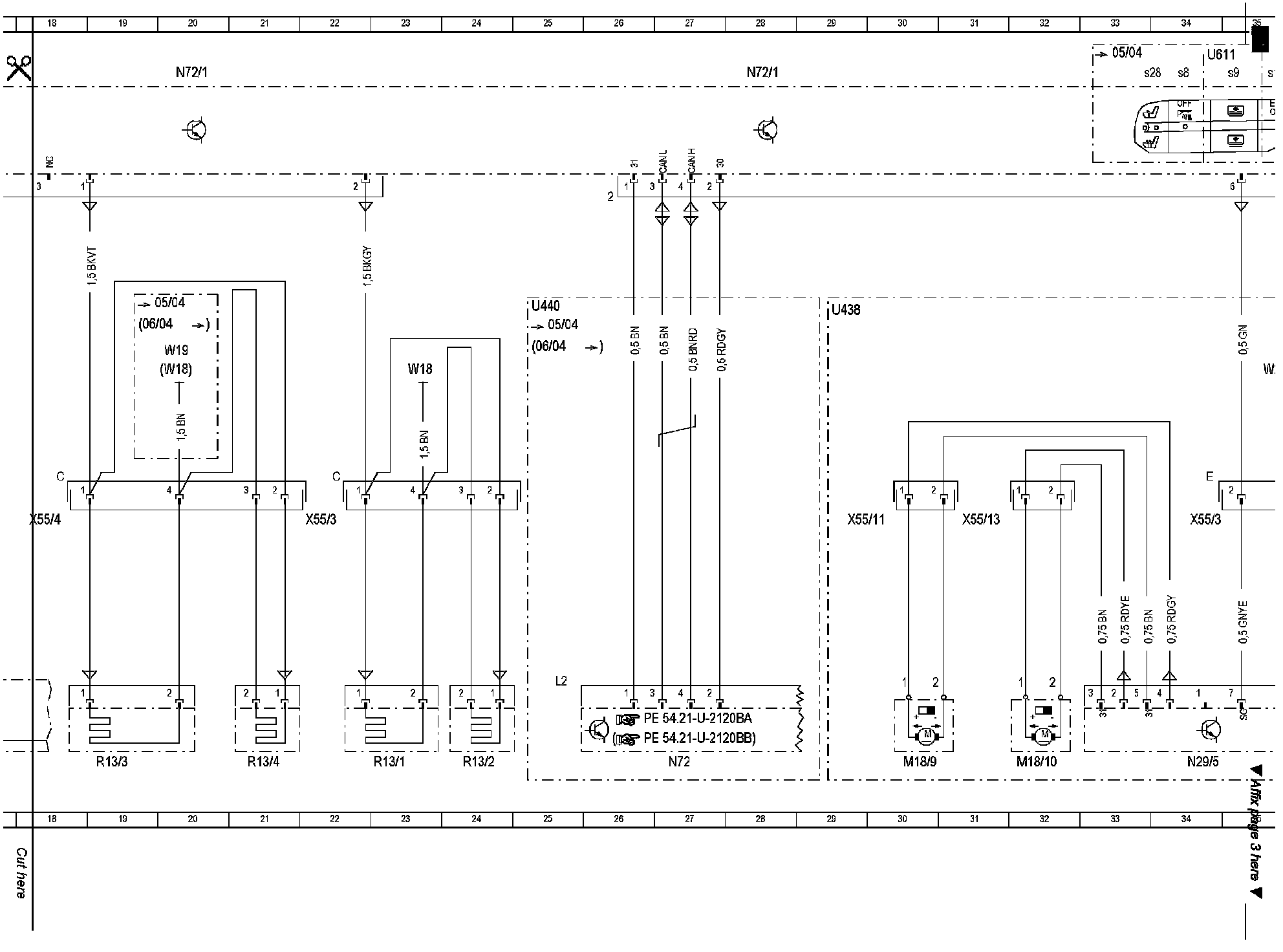

Wiring Diagram (Part 2):

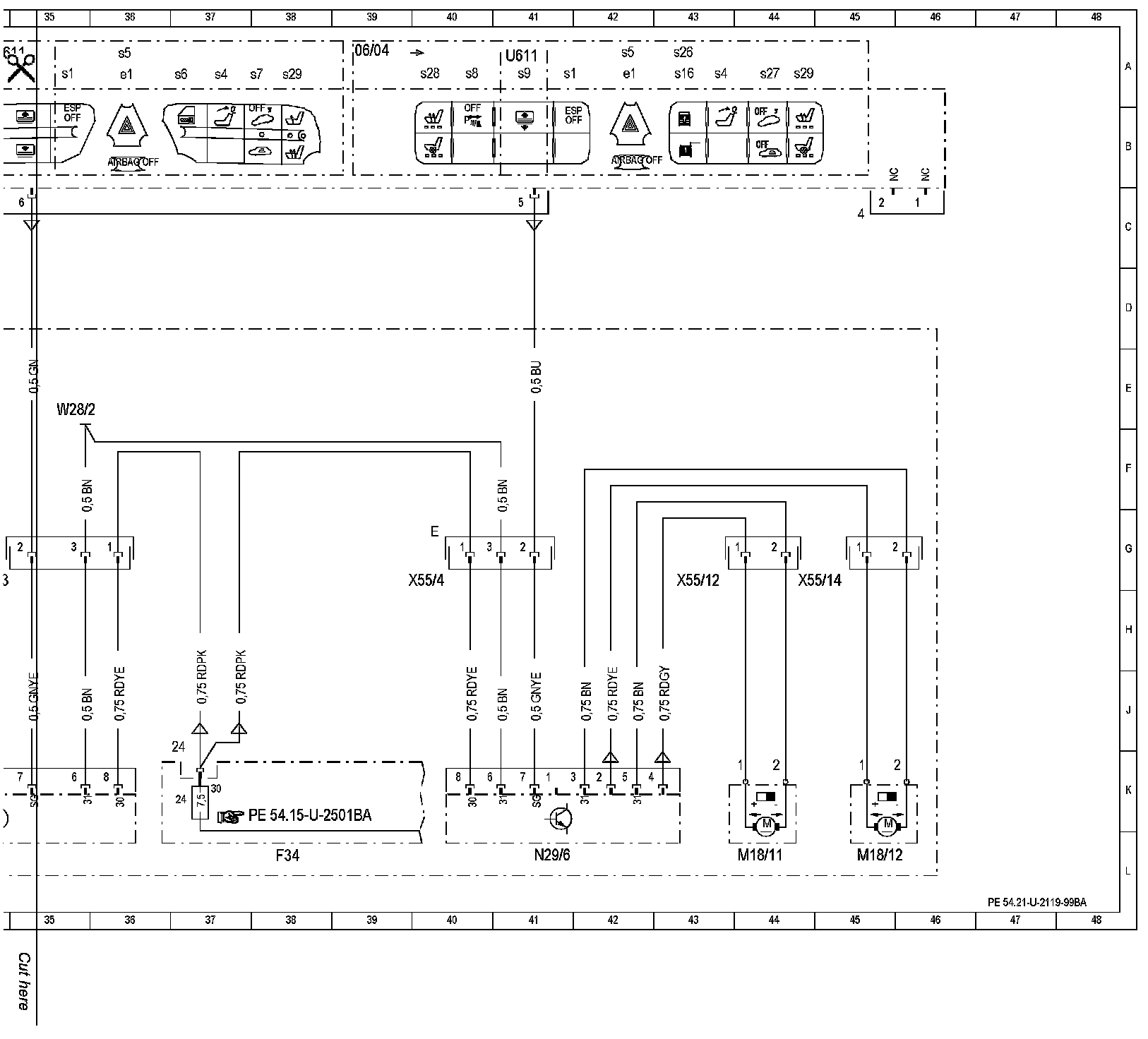

Wiring Diagram (Part 3):

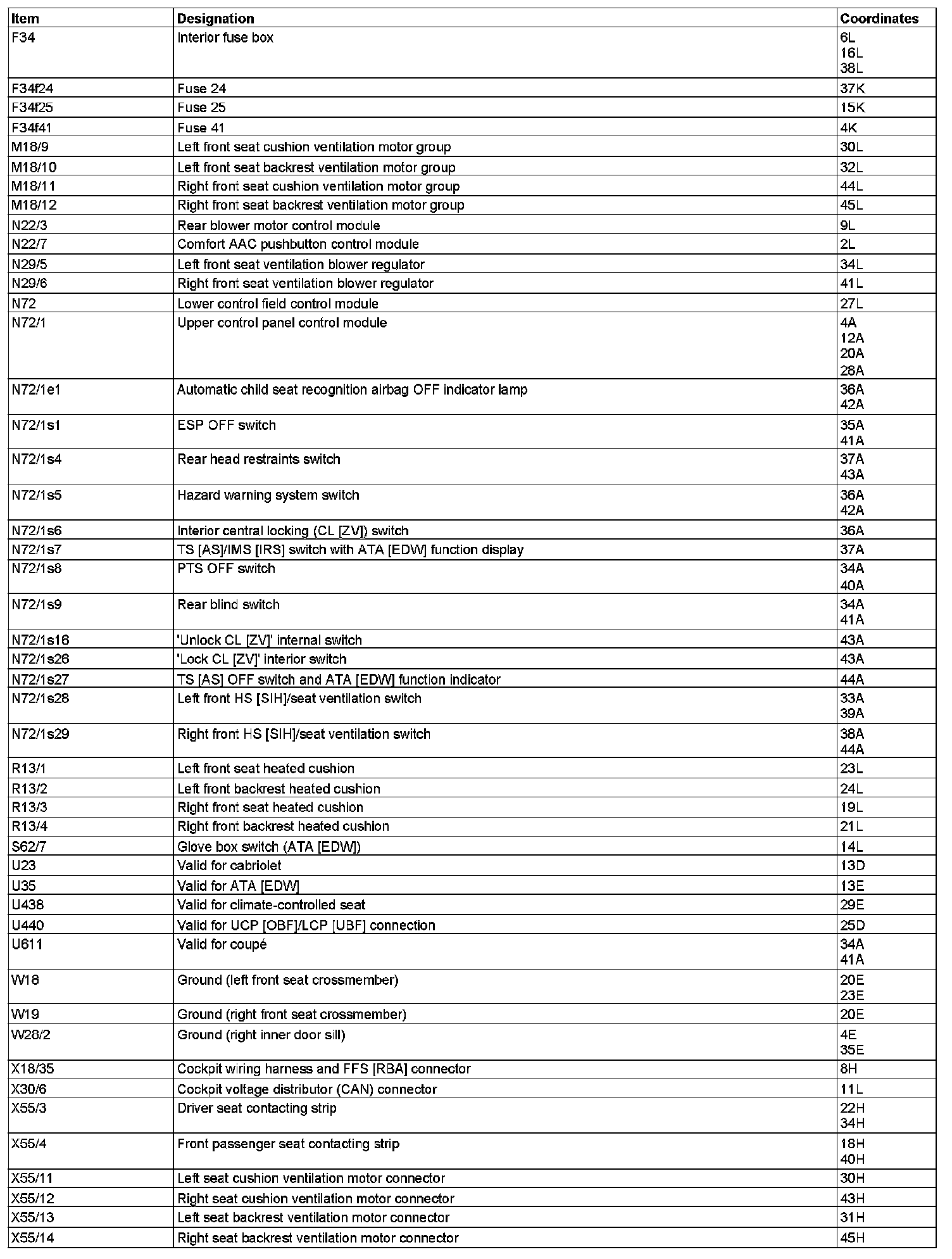

Component Description/Coordinates, F34 To X55/14:
Component Locations: Component Location photographs can be found via their component names at the vehicle level.
Component Locations
