AR82.20-P-1000Q Remove/Install Overhead Control Panel




AR82.20-P-1000Q Remove/Install Overhead Control Panel Control Unit







DANGER!
Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury with caustic burns to eyes and skin from battery electrolyte or from handling damaged lead-acid batteries
- No fire, sparks, naked flames or smoking.
- Wear acid-resistant gloves, clothing and goggles. Pour battery electrolyte only into suitable and appropriately marked containers.

1 Disconnect ground cable of battery

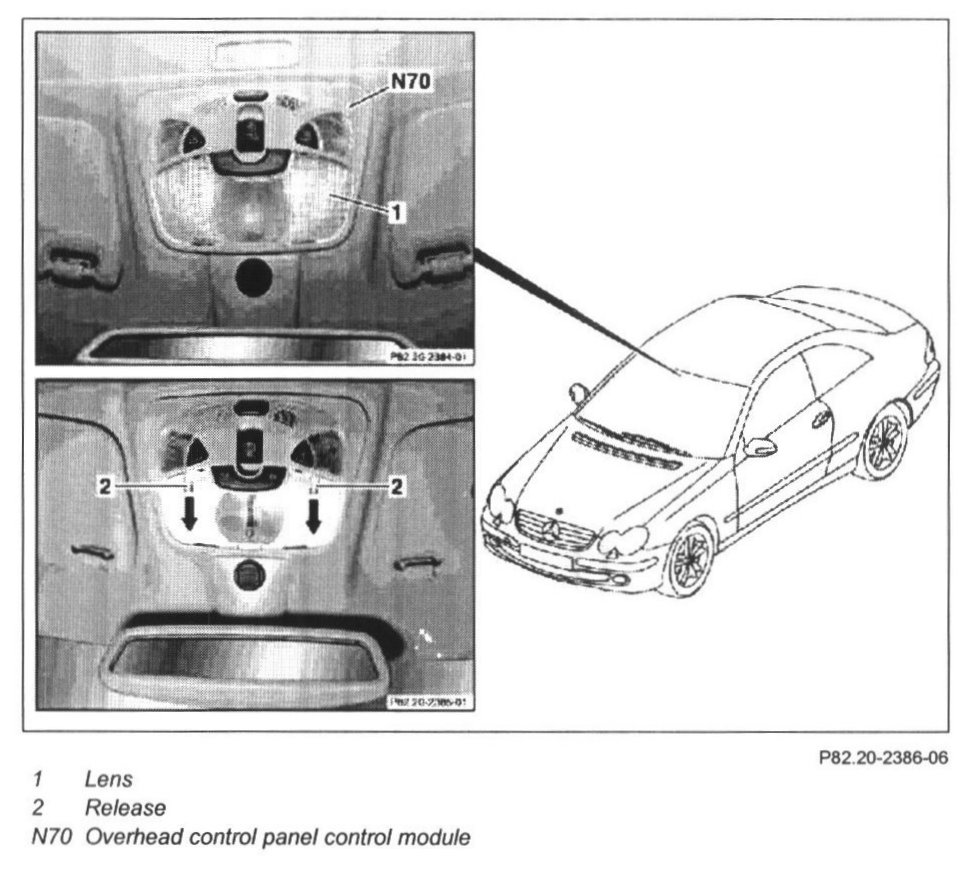

2 Unclip lens(1)
3 Press release mechanism (2) on both sides

NOTE: Press in direction of arrow.

4 Detach overhead control panel control module (N70)
5 Unplug connectors
6 Install in the reverse order
7 Perform basic programming
8 Read diagnostic trouble code memory and erase
9 Check for proper function
