Data Link Connector/Diagnostic Socket PE54.22-U-2000BA
Data Link Connector/diagnostic Socket PE54.22-U-2000BA - Data link connector (X11/4)

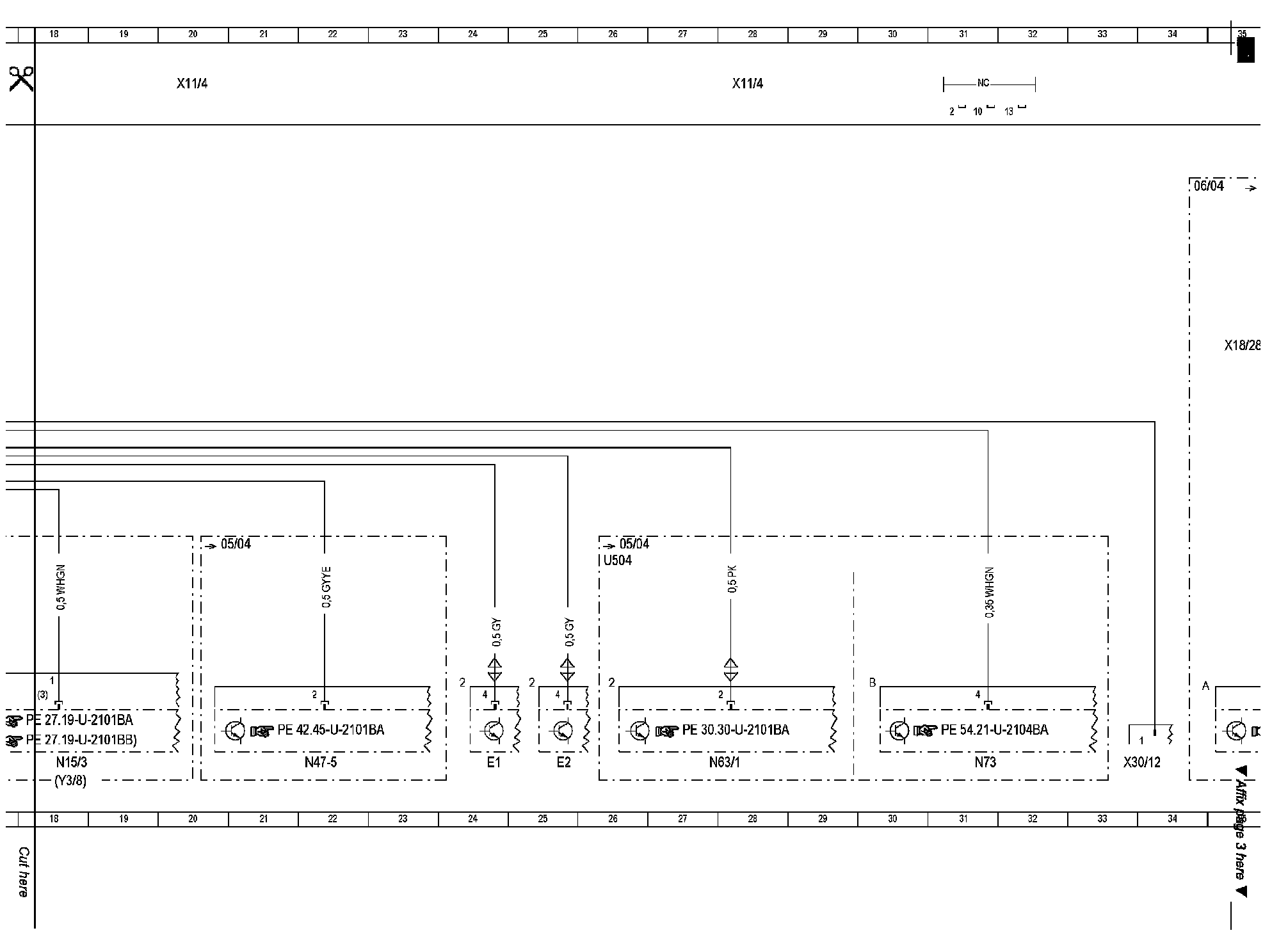

Wiring Diagram (Part 1):

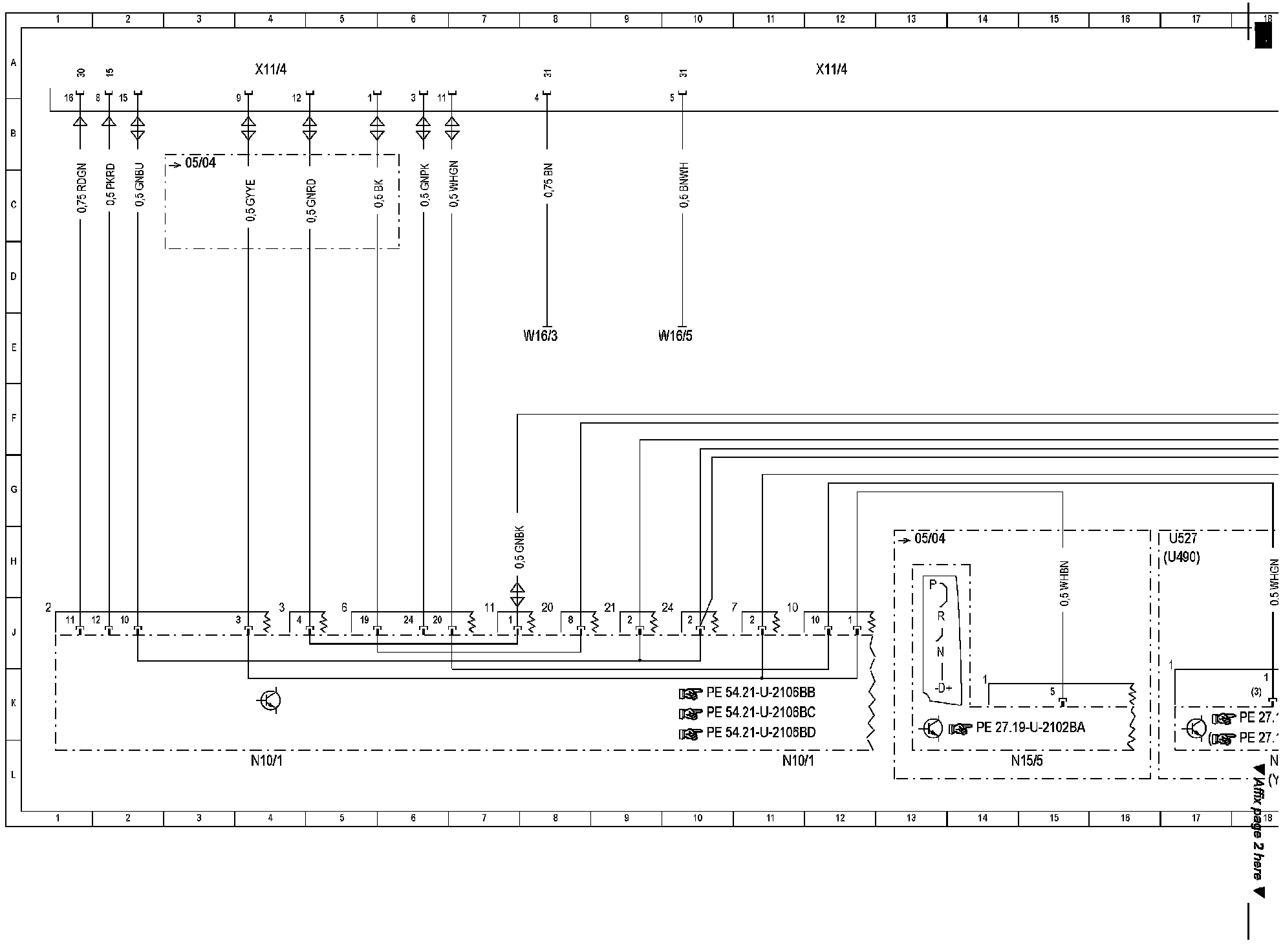

Wiring Diagram (Part 2):
Wiring Diagram (Part 3):

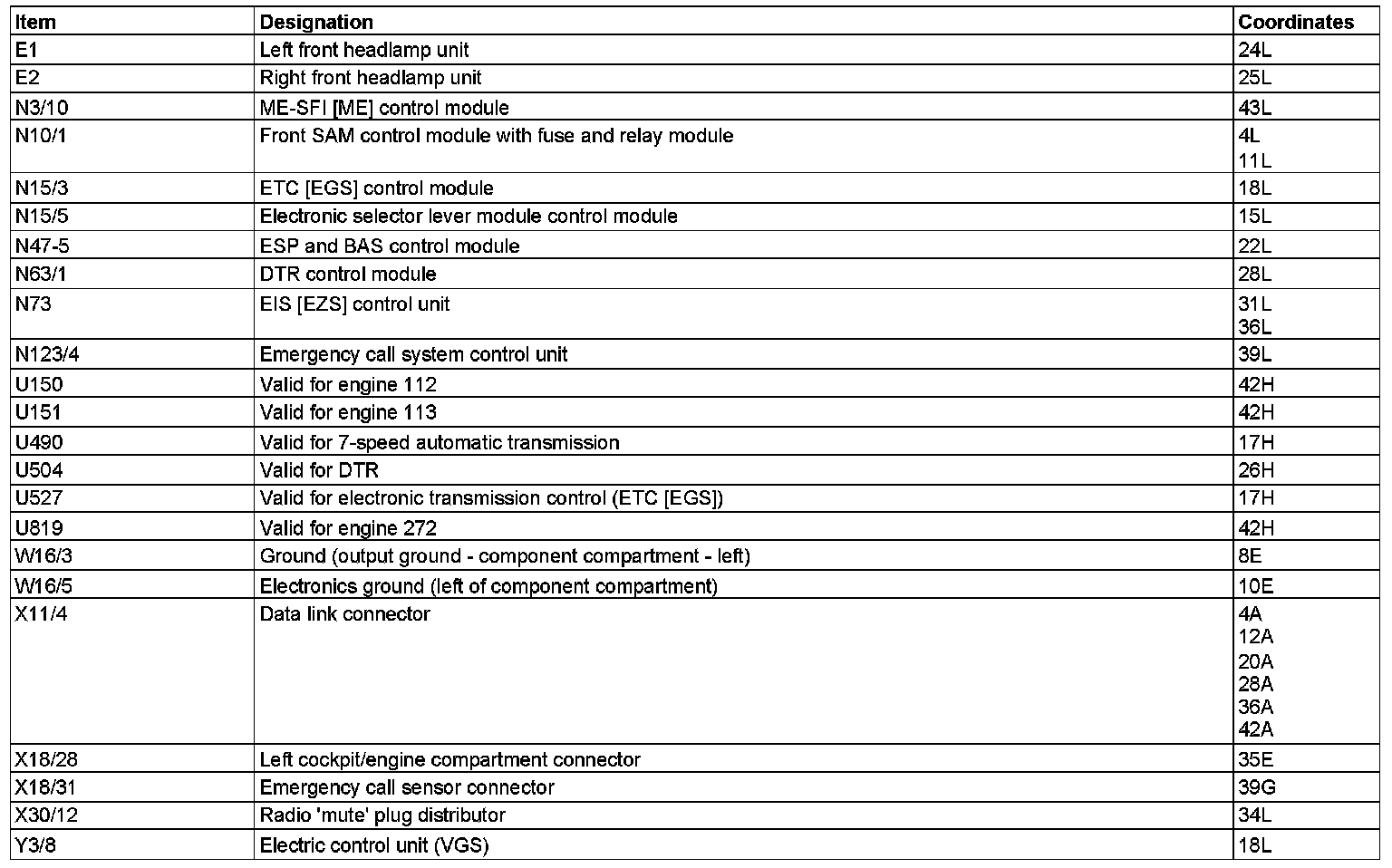

Component Description/Coordinates, E1 To Y/38:
Component Locations: Component Location photographs can be found via their component names at the vehicle level.
Component Locations
