Manifold Pressure/Vacuum Sensor: Locations
Pressure Sensor

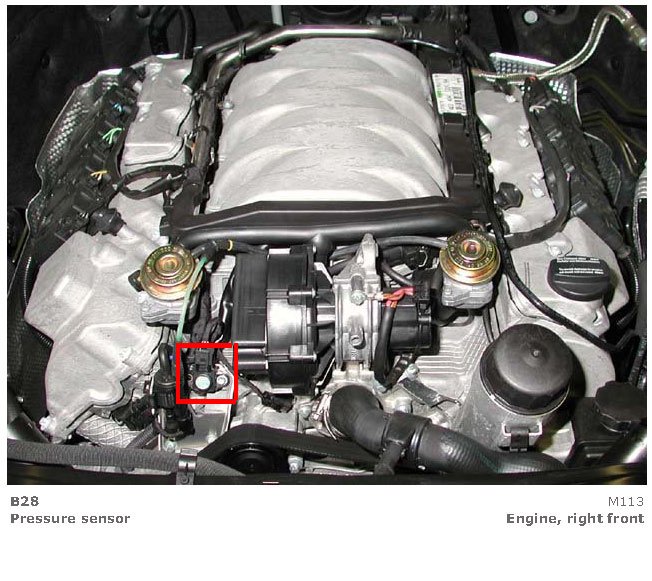

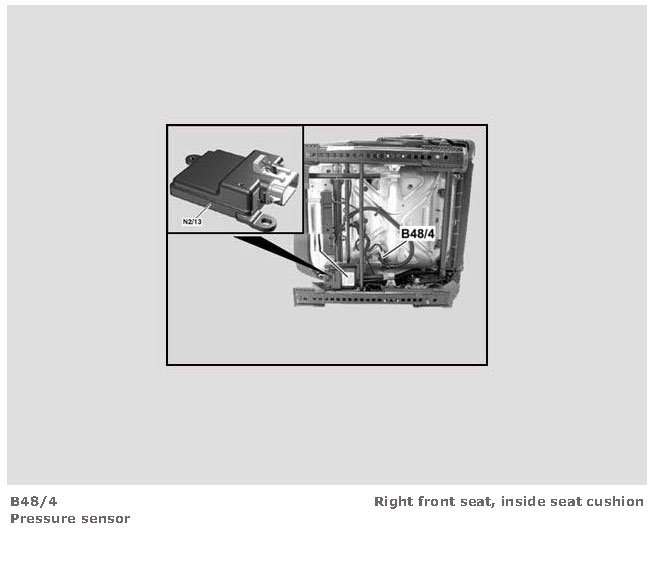

Pressure Sensor (View 1):

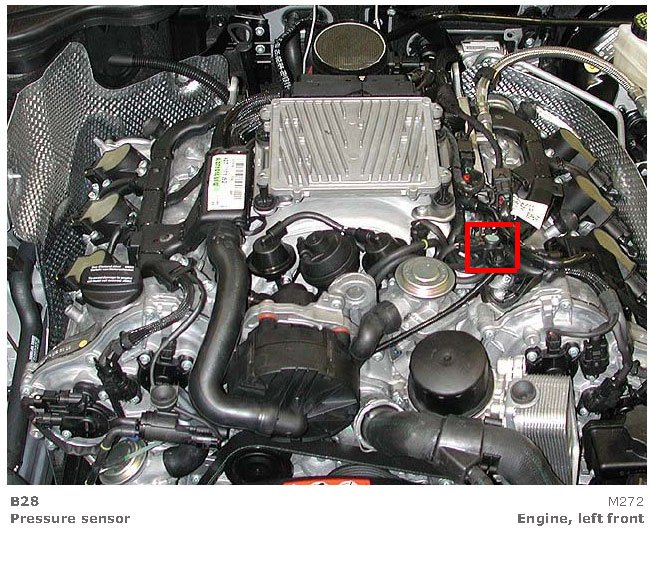

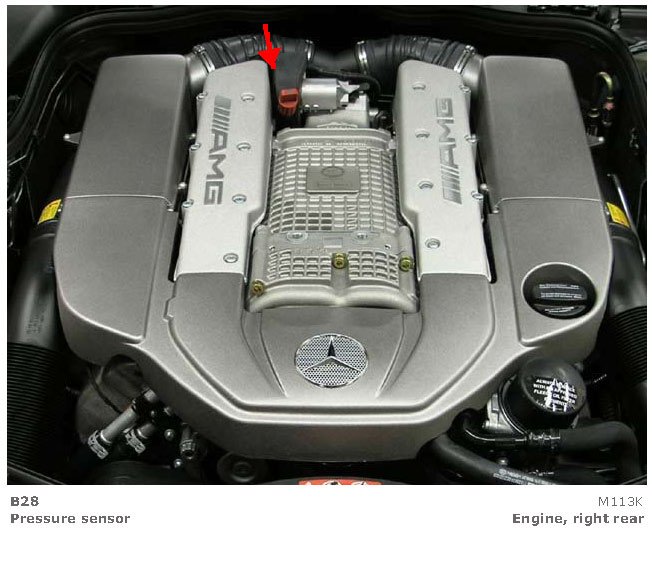

Pressure Sensor (View 2):

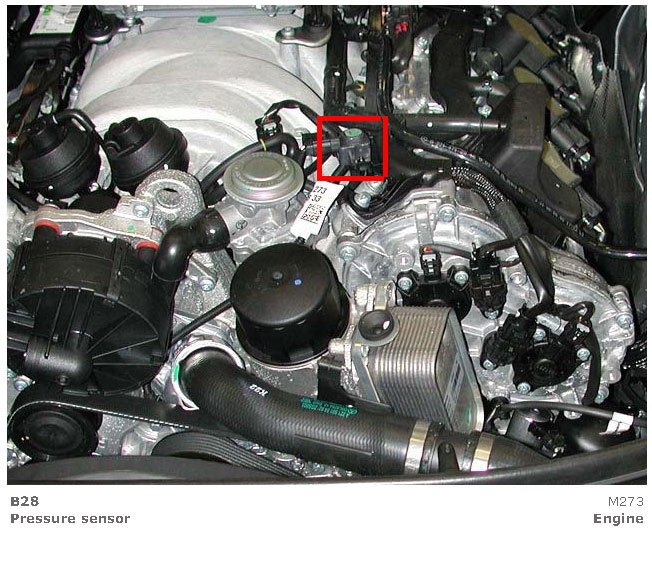

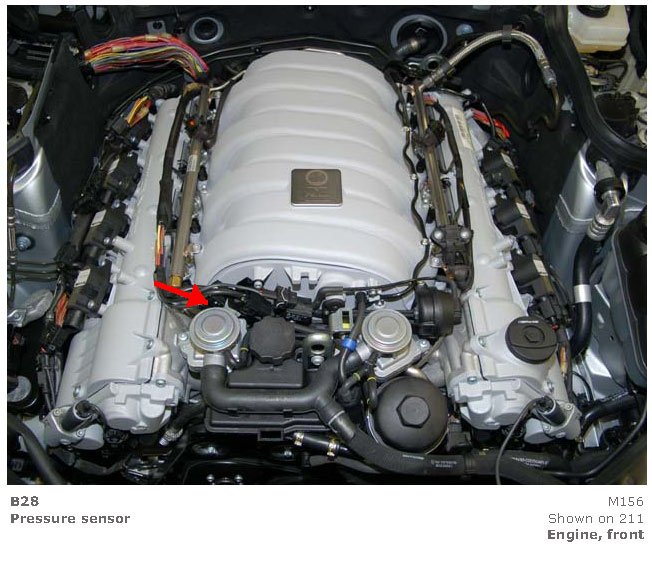

Pressure Sensor (View 3):

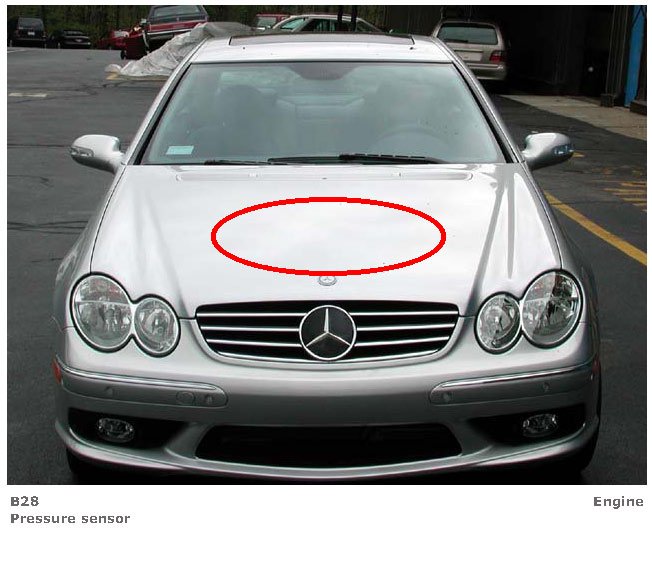

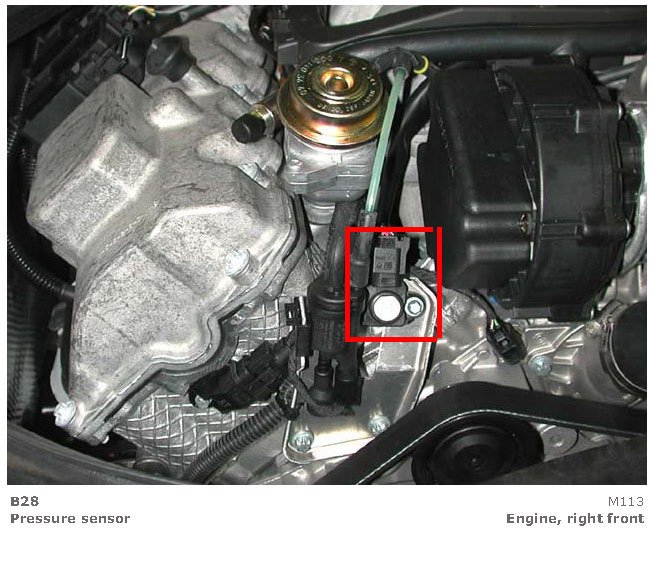

Pressure Sensor (View 4):

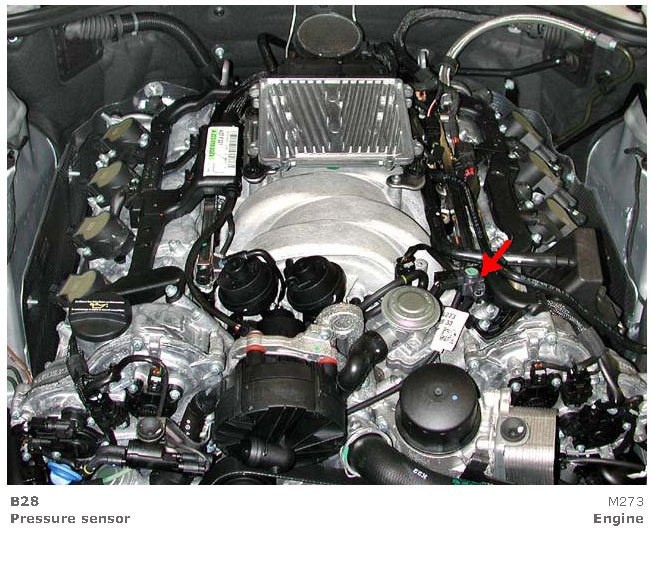

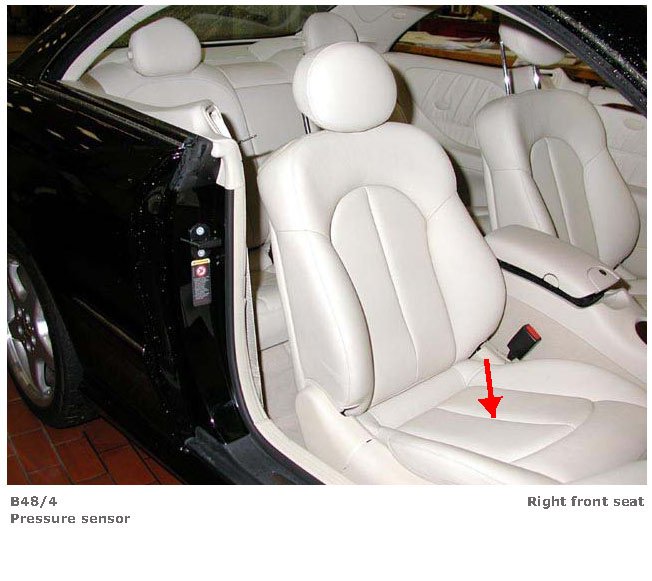

Pressure Sensor (View 5):

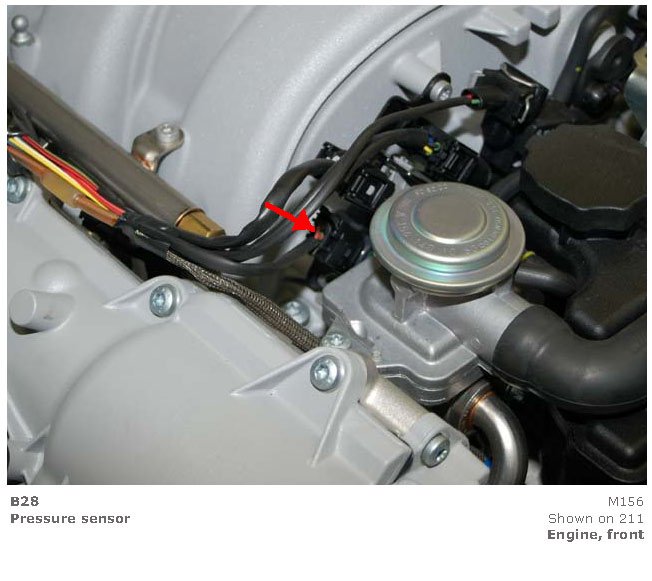

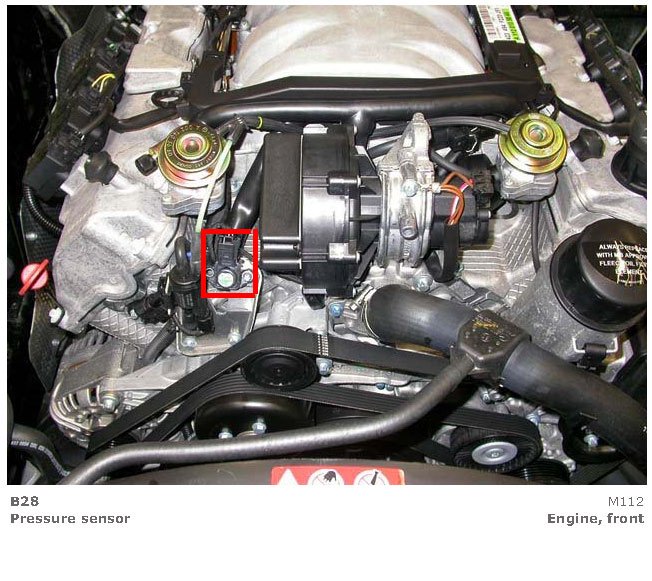

Pressure Sensor (View 6):

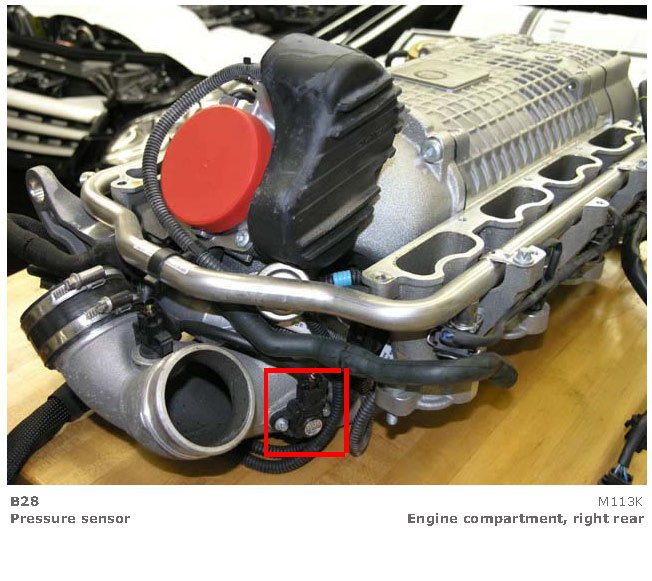

Pressure Sensor (View 7):

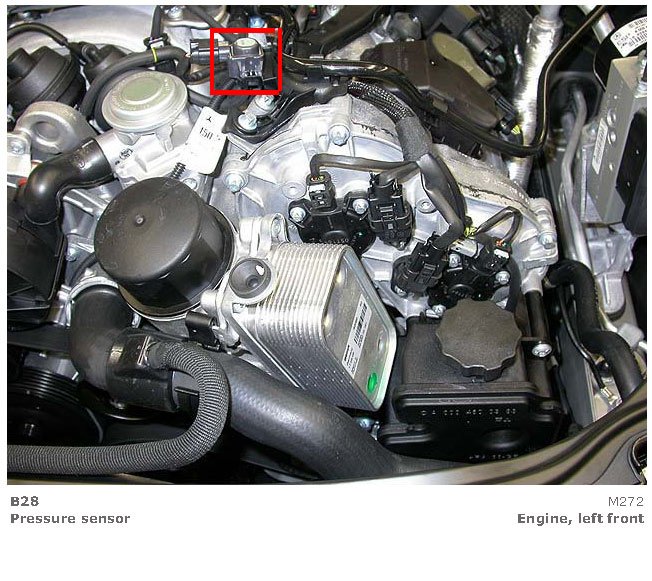

Pressure Sensor (View 8):
Pressure Sensor (View 9):
Pressure Sensor (View 10):
Pressure Sensor (View 11):
Pressure Sensor (View 12):
Pressure Sensor (View 1):
Pressure Sensor (View 2):
