Function Diagram For ME Engine Control PE07.61-U-2050BA



PE07.61-U-2050BA Function Diagram Of Electrical System For ME Engine Control

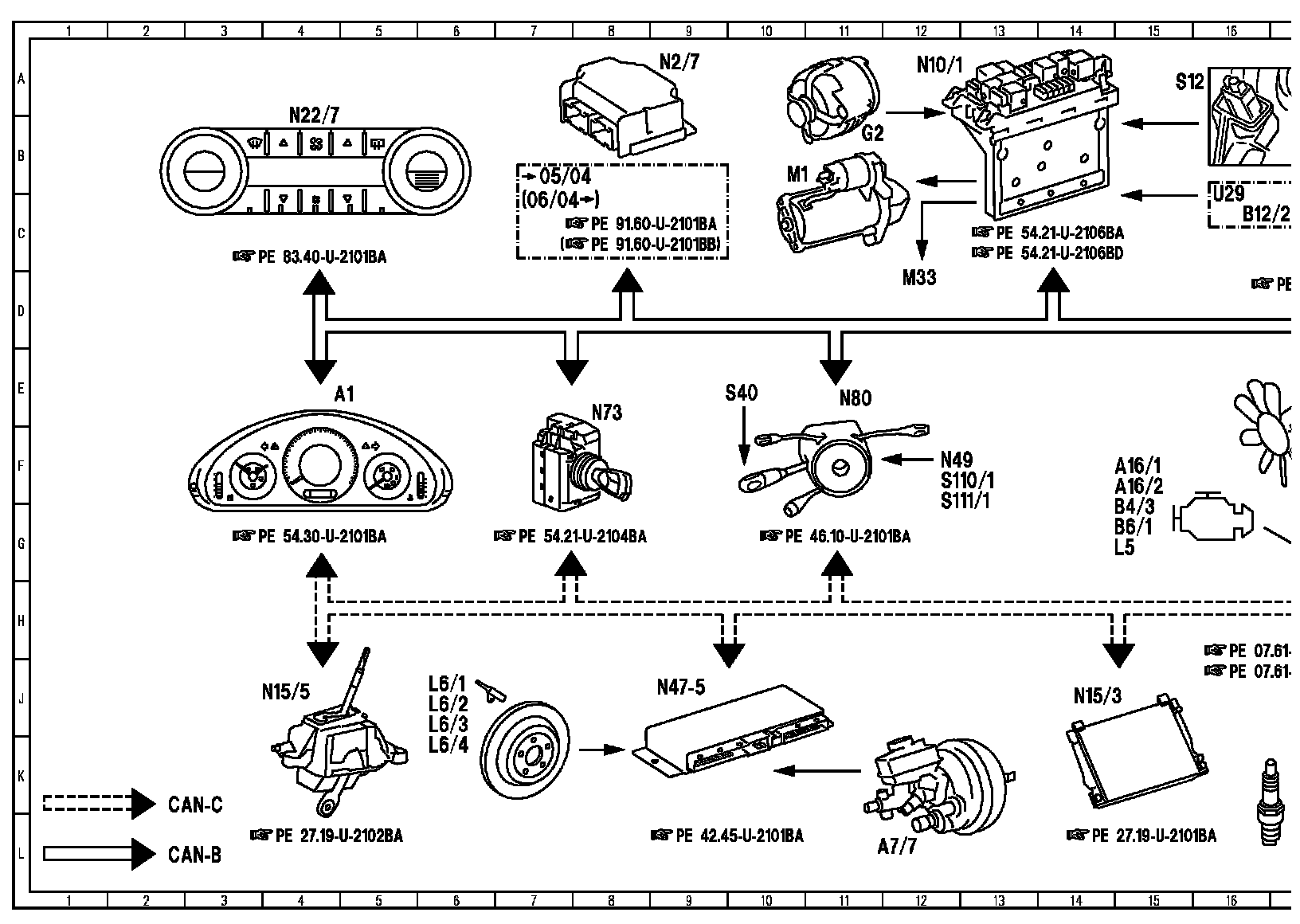

Wiring Diagram, Part 1:

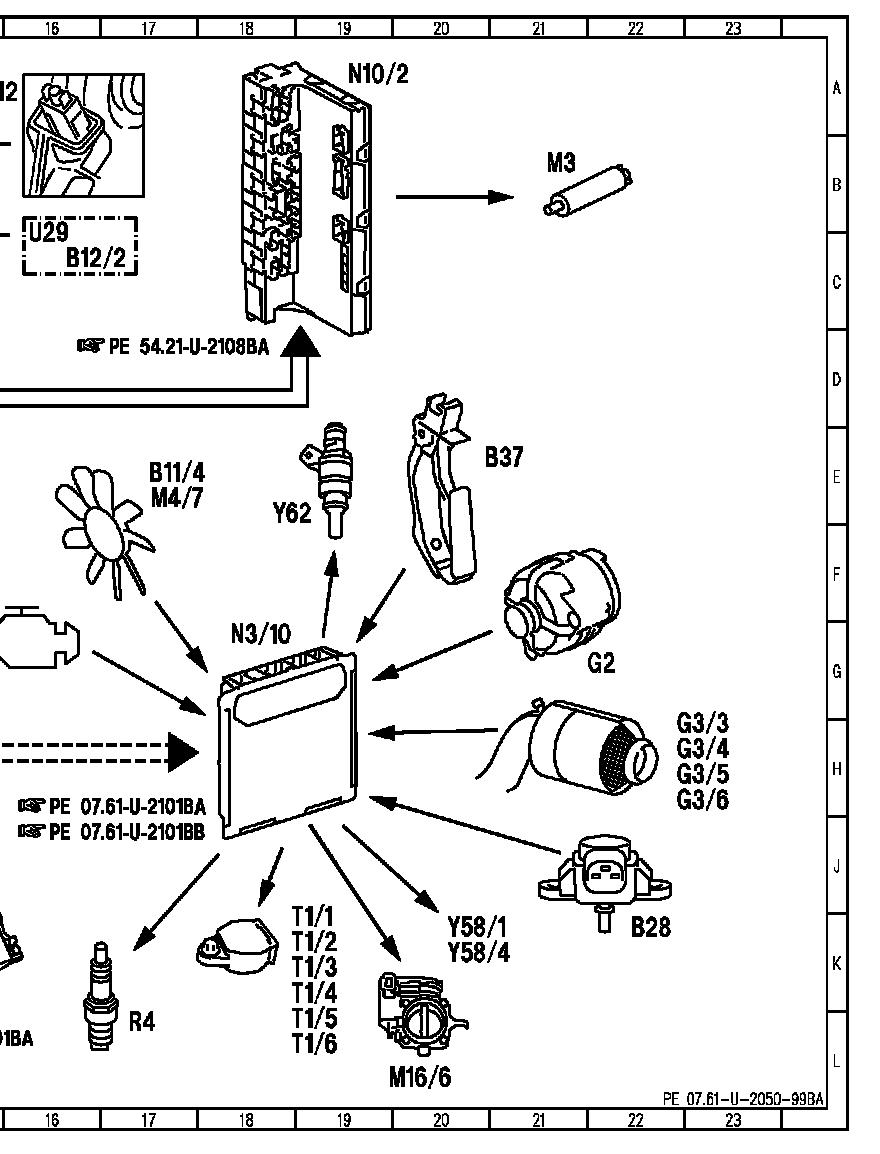

Wiring Diagram, Part 2:

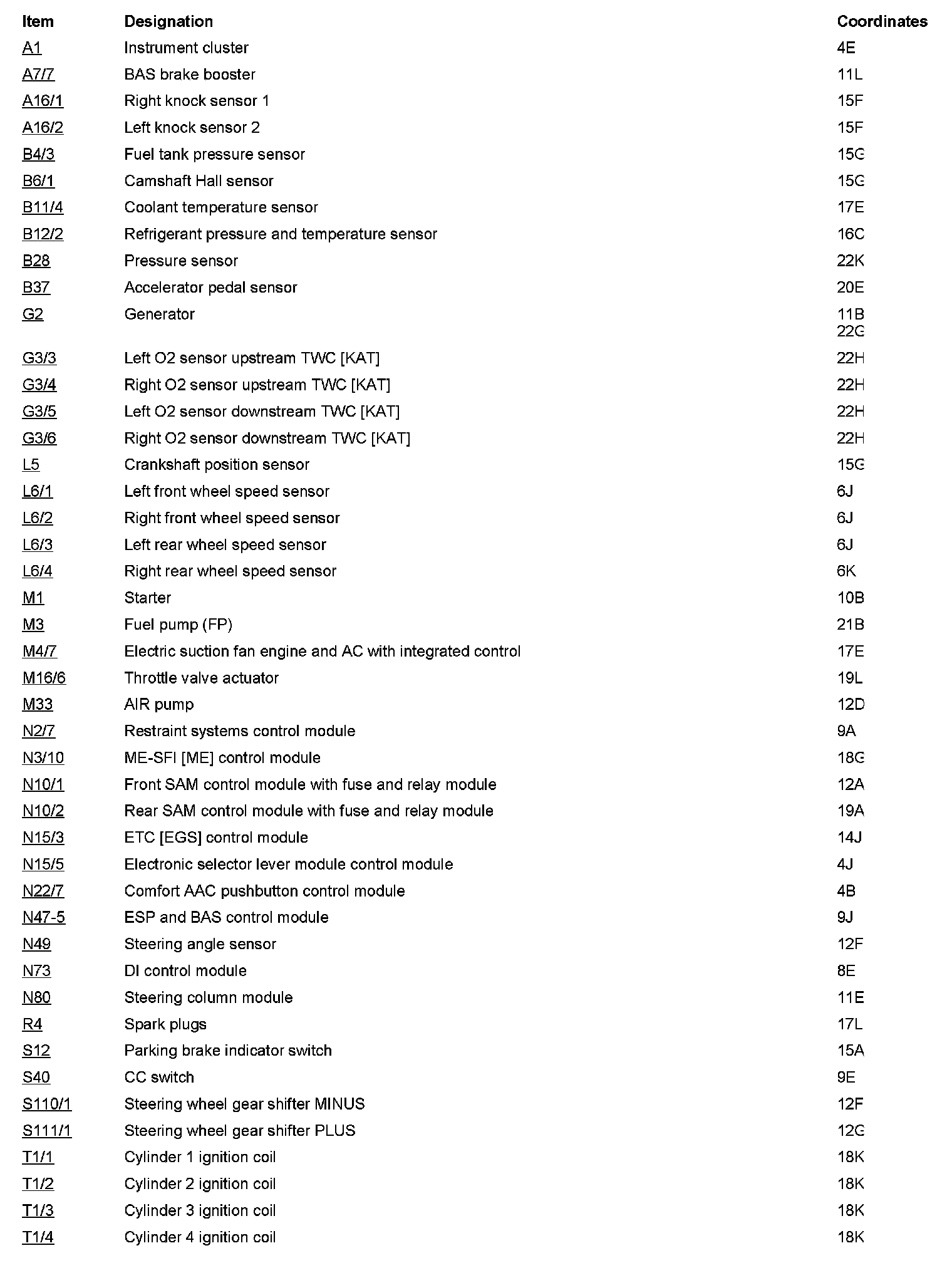

Component Description/Coordinates, A1 To T1/4:





Component Description/Coordinates, T1/5 To Y62:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
