AR01.10-P-0010-01PR Connect Compression Tester

AR01.10-P-0010-01PR Connect compression tester

Special Tools:

Component Identification:

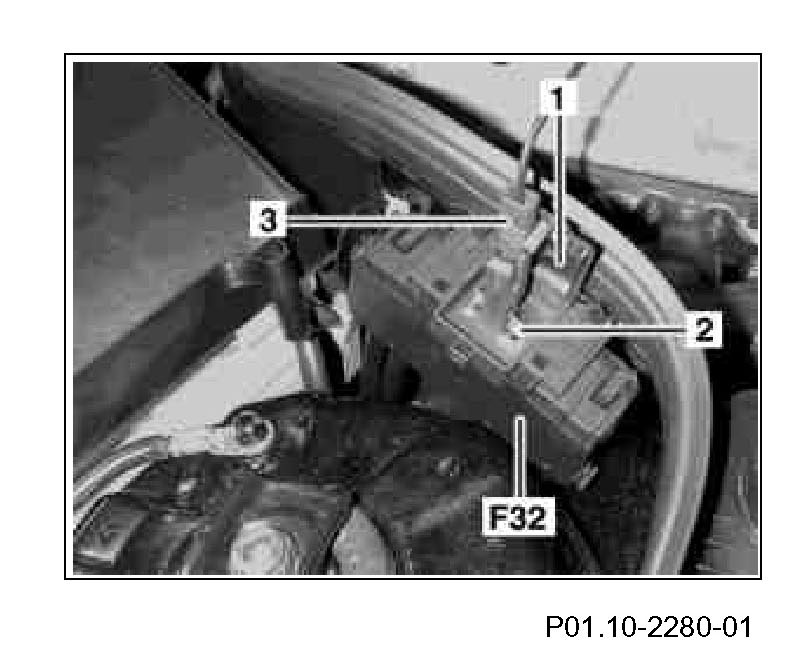

1 Open cover (1) of front backup fuse box (F32).
2 Connect clamp (3) on compression recorder on terminal (2) of front backup fuse box (F32).

Shown on model 203

Component Identification:

3 Remove cover on fuse box.

Installation: Check the rubber seal in the cover. Replace it if necessary. The cover must be seated in the groove at the rear.

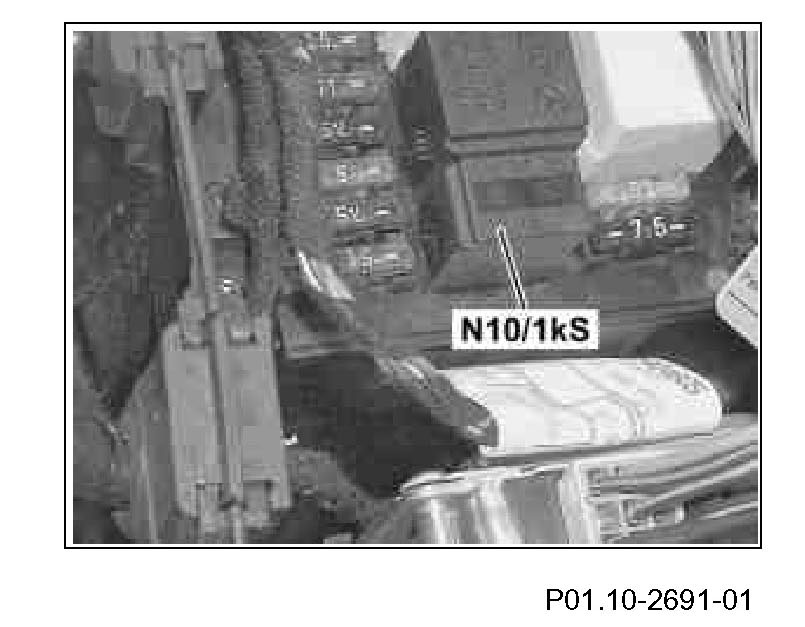

4 Remove starter relay (N10/1kS) from relay position S.

Component Identification:

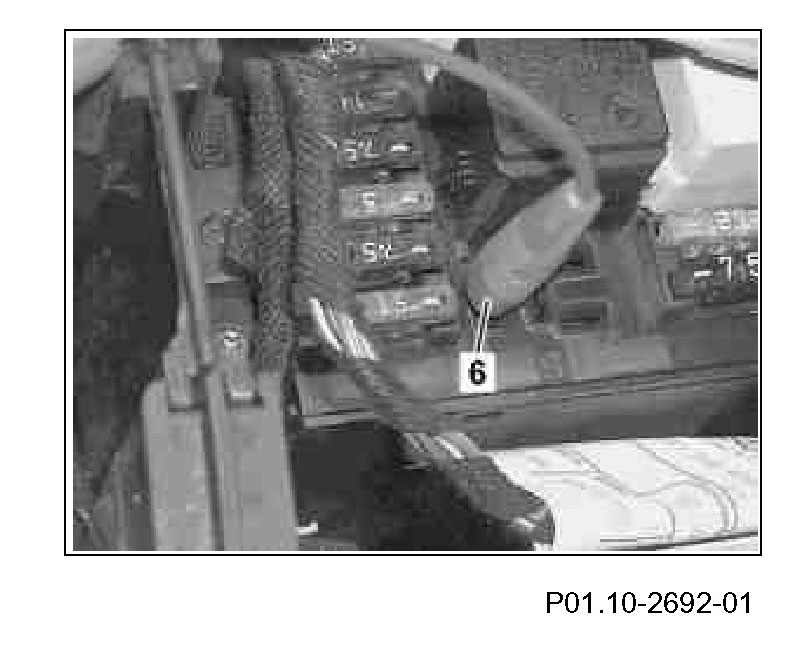

5 Insert adapter line (6) into relay position S.

Component Identification:

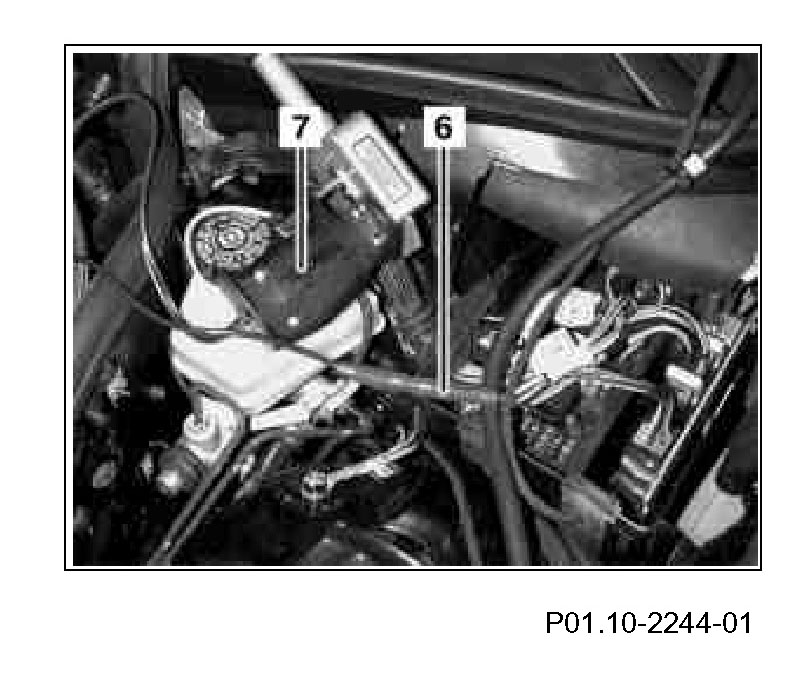

6 Link adapter cable (6) to the cable of the compression recorder (7).
