AR83.50-P-9070M Remove/Install Rear Push Button Control Module



AR83.50-P-9070M Remove/Install Rear Push Button Control Module
- with CODE (582) Rear air conditioning

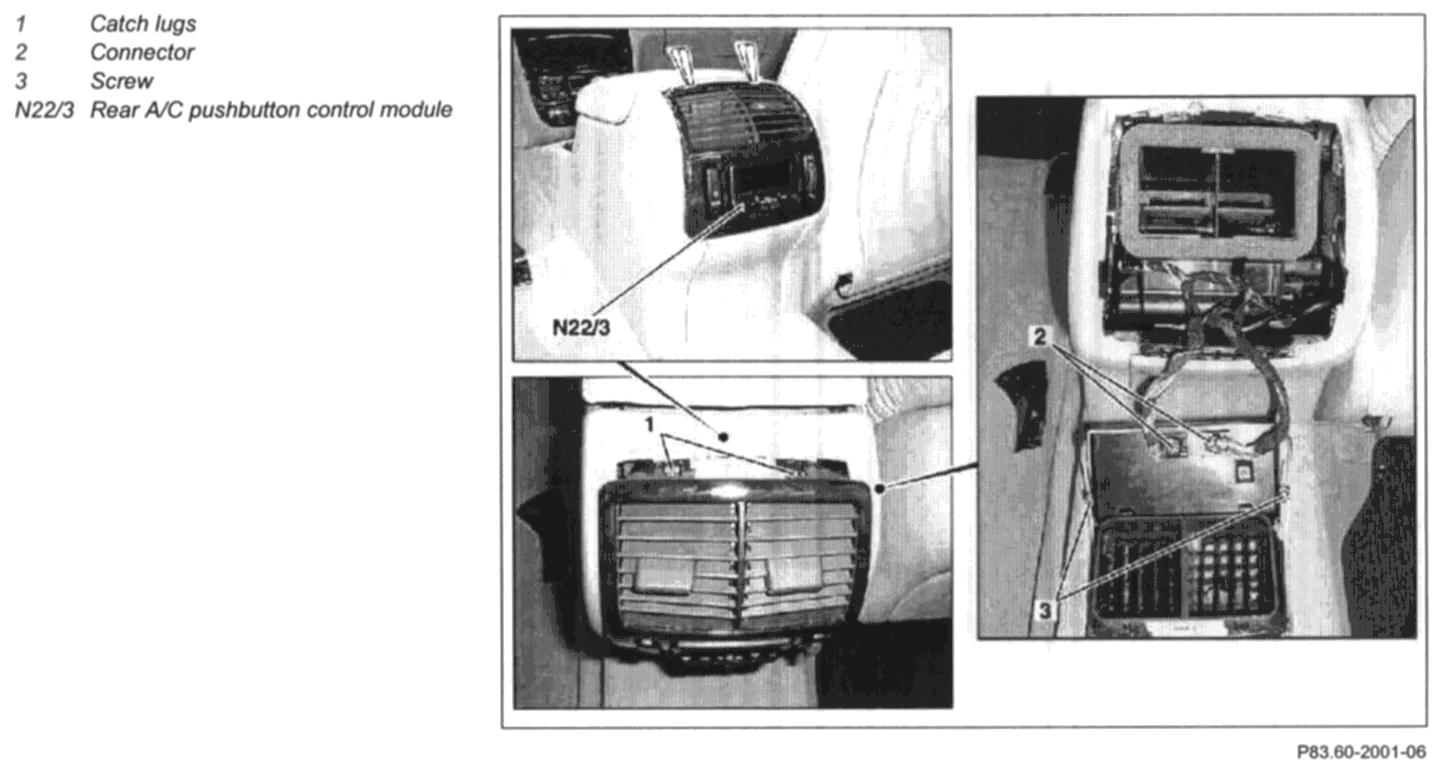

1 Unhook rear A/C pushbutton control module (N22/3) with rear compartment nozzle from catch lugs (1) on top toward rear with plastic wedge

CAUTION: Do not use sharp tools. Rear compartment nozzle cover and center console could be damaged!

- See "Special Tools" given below.

2 Disconnect connectors (2)
3 Unscrew screws (3)
4 Remove rear A/C pushbutton control module (N22/3)
5 Install in opposite order.

Special Tools


Installation wedge, P/N# 115 589 03 59 00:
