GF82.60-P-5002RC Media Interface Adapter Cable, Component Description

GF82.60-P-5002RC Media Interface Adapter Cable, Component Description
- with CODE (518) Media interface

Component Identification:

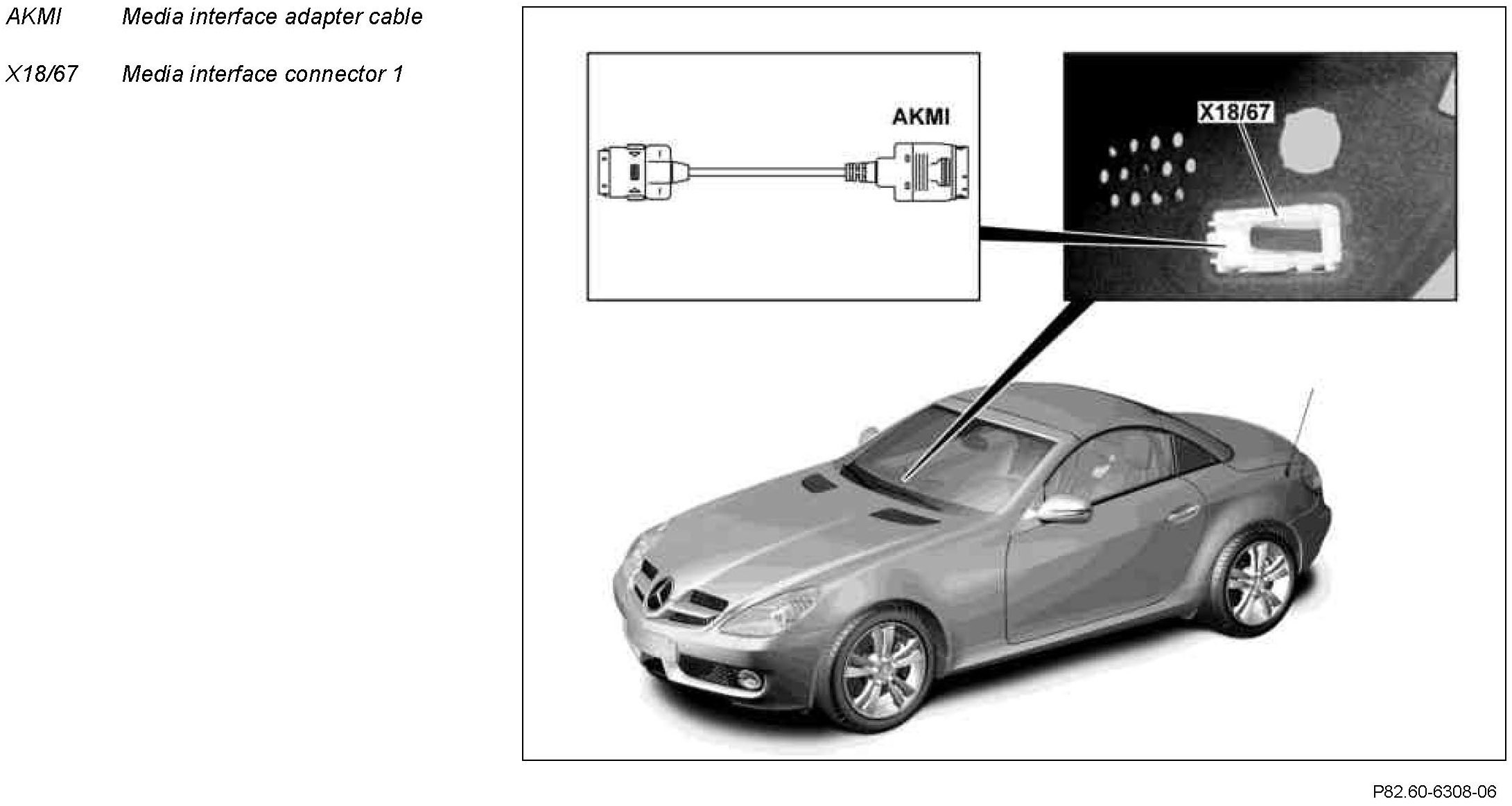

Location
The adapter cable is connected by the user to the media interface connector 1 and is thereby also located in the glove box.

Task
Relaying signals
- Power supply from media interface connector 1 for the specific portable devices connected and for USB
- Audio signals and data or video signals and data from the specific portable devices connected to media interface connector 1
- Control signal from media interface connector 1 for the specific portable devices connected

Design

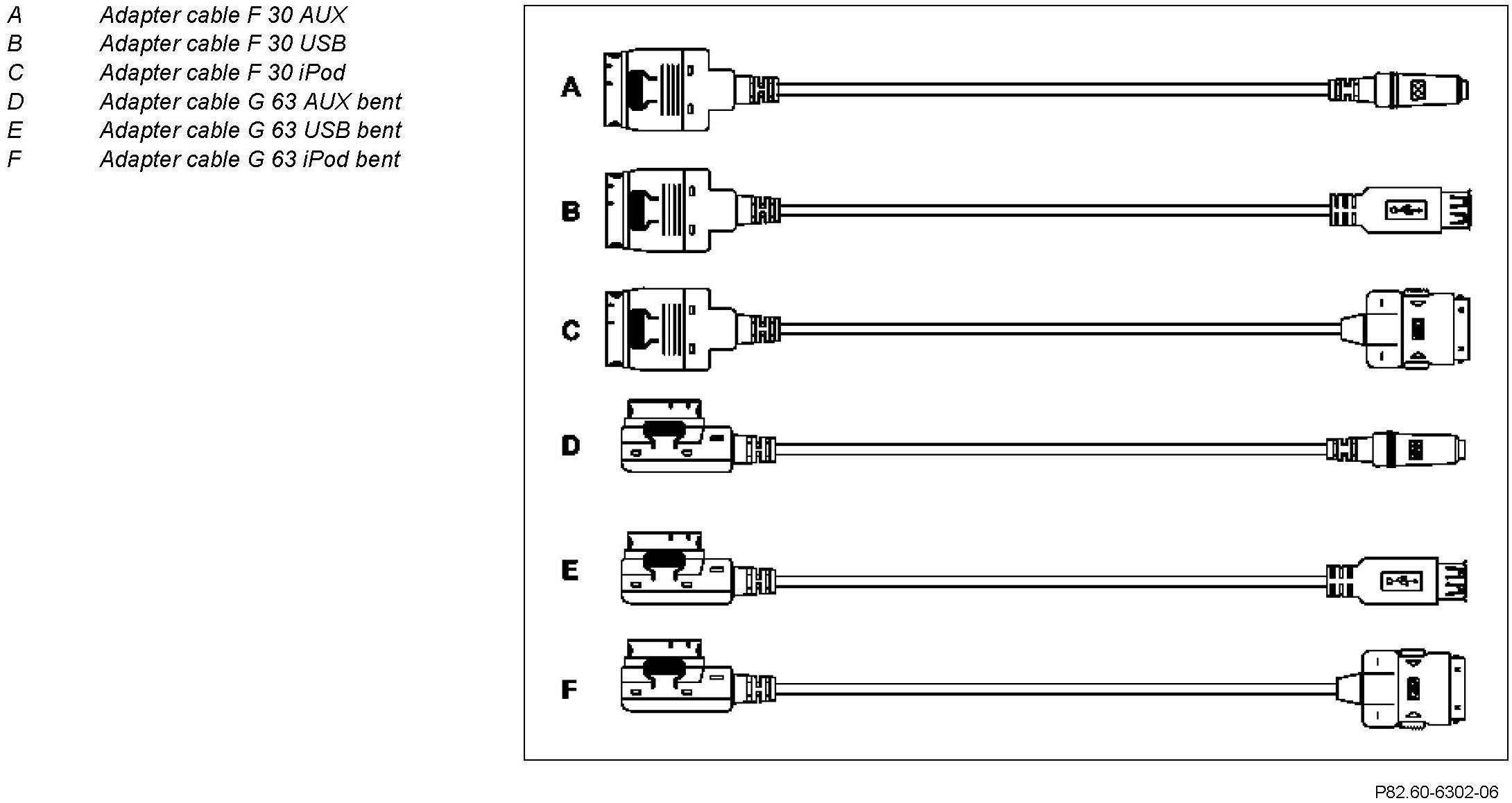

Variants
- Adapter cable without video connection:
- With code (510) Audio 20 with CD changer, with code (525) MB Audio 50 APS radio or with code (511) Audio 50 APS with DVD changer
- With code (527) COMAND APS with single DVD drive (with navigation) or with code (512) COMAND APS with DVD changer, with code (862) TV preinstallation
- Adapter cable with video connection
- With code (527) COMAND APS with single DVD drive (with navigation) or with CODE (512) COMAND APS with DVD changer, except code (862) TV preinstallation, except code (498) Japan version
