AR35.10-P-0040-02V Remove/Install Front Rubber Bushing In Rear Axle Mount

AR35.10-P-0040-02V Remove/install front rubber bushing in rear axle mount

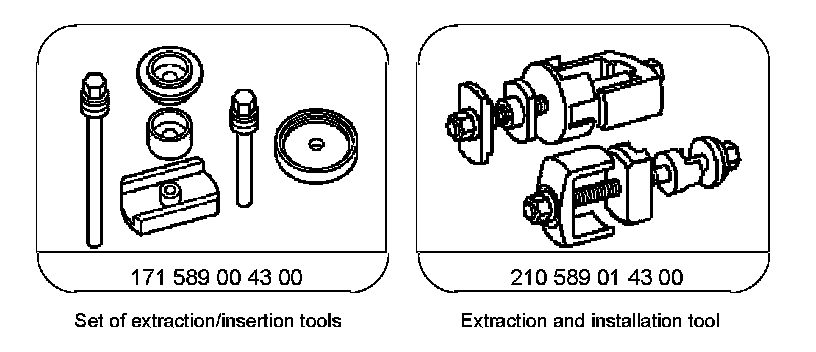

Special Tools:

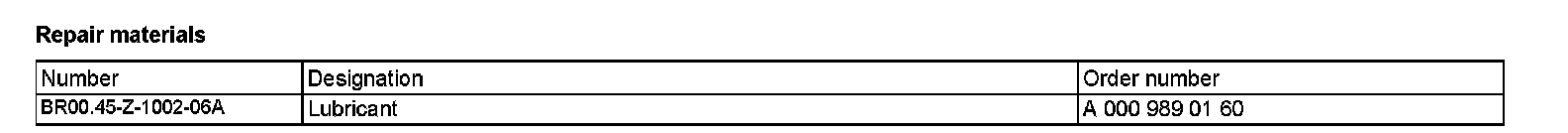

Repair Materials:

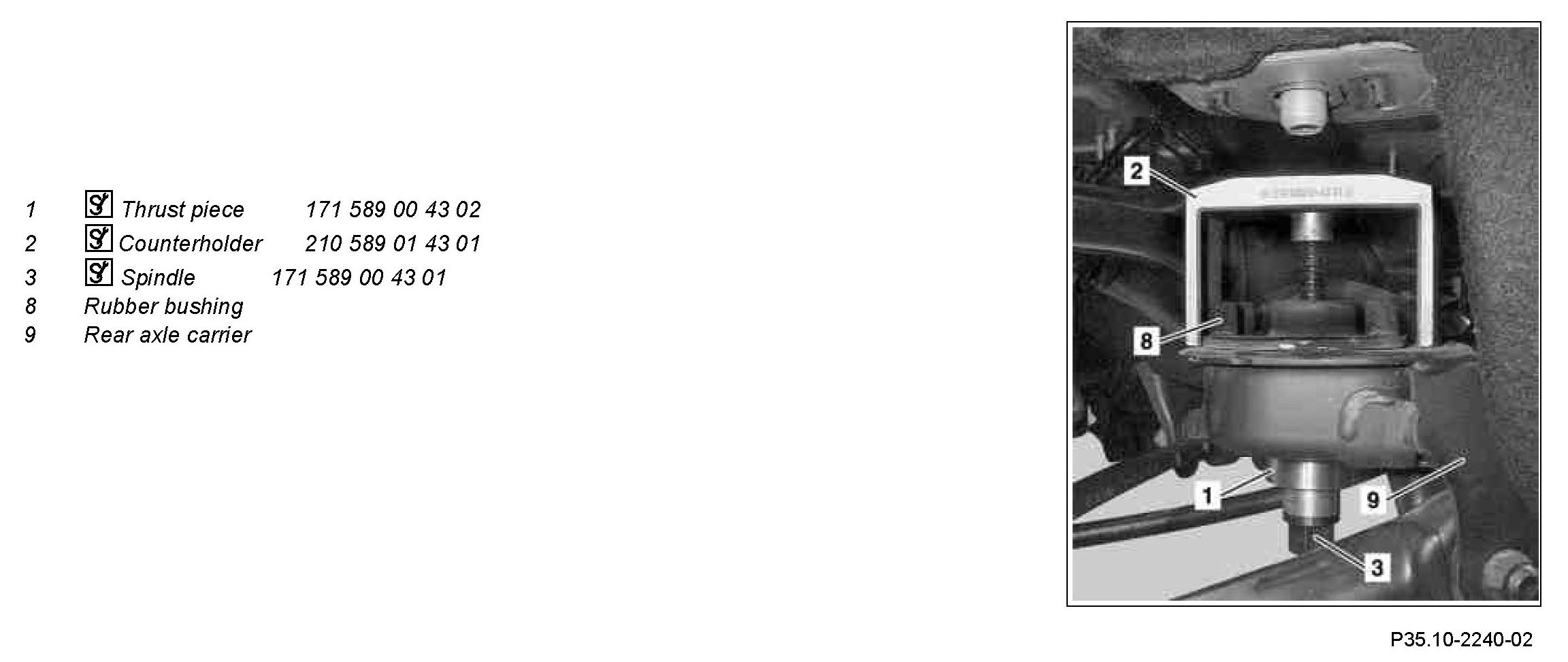

Component Identification:

Remove
1 Using thrust piece (1), counterholder (2) and spindle (3), press rubber mount out of rear axle carrier (9).

Component Identification:

Install
2 Rub the circumference of the new rubber mount (8) with lubricant.
3 Using thrust piece (4), counterholder (5) and spindle (3), draw the rubber mount (8) into the rear axle carrier (9).
