AR77.37-P-4205-02V Connection Schematic For Pressure Test

AR77.37-P-4205-02V Connection Schematic For Pressure Test

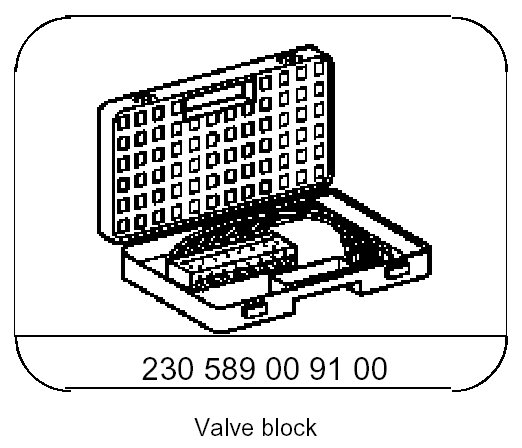

Special Tool:

Component Identification:

Assignment for hydraulic cylinder hydraulic lines:

Hydraulic line no. 12 (12): Front cylinder lock, rod side
Hydraulic line no. 22 (22): Right roof actuation cylinder, rod side.
Hydraulic line no. 33 (33): Left roof actuation cylinder, rod side.
Hydraulic line no. 42 (42): Right tubular frame actuation cylinder, rod side.
Hydraulic line no. 53 (53): Right tubular frame actuation cylinder, rod side.

The hydraulic line numbers (12, 22, 33, 42, 53) are printed on the outer sleeves.
