AR77.37-P-1000-04V Disconnect Hydraulic Lines From Hydraulic Pump and Connect

AR77.37-P-1000-04V Disconnect Hydraulic Lines From Hydraulic Pump And Connect

Hydraulic Soft Top:

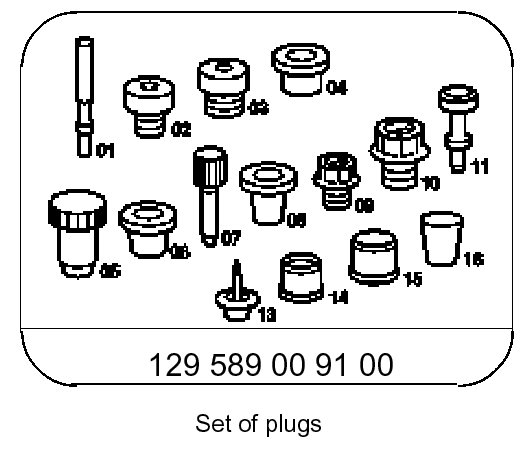

Special Tool:

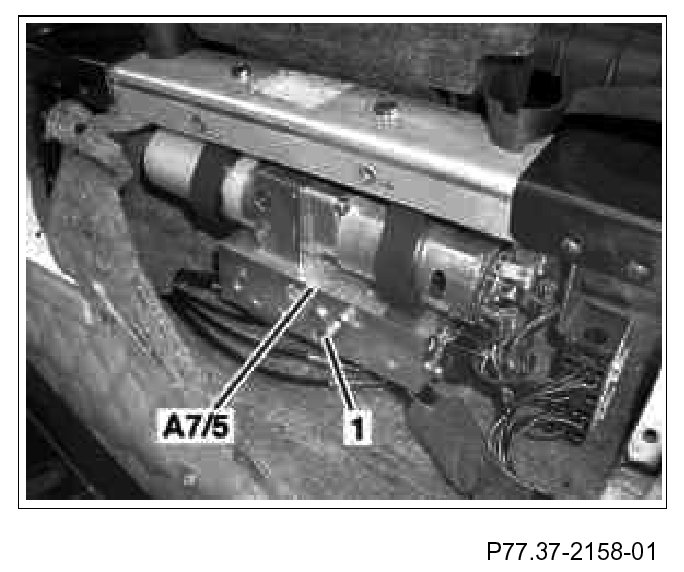

1. Open emergency opening valve (1) on soft top mechanism hydraulic unit (A7/5) two turns and close again.

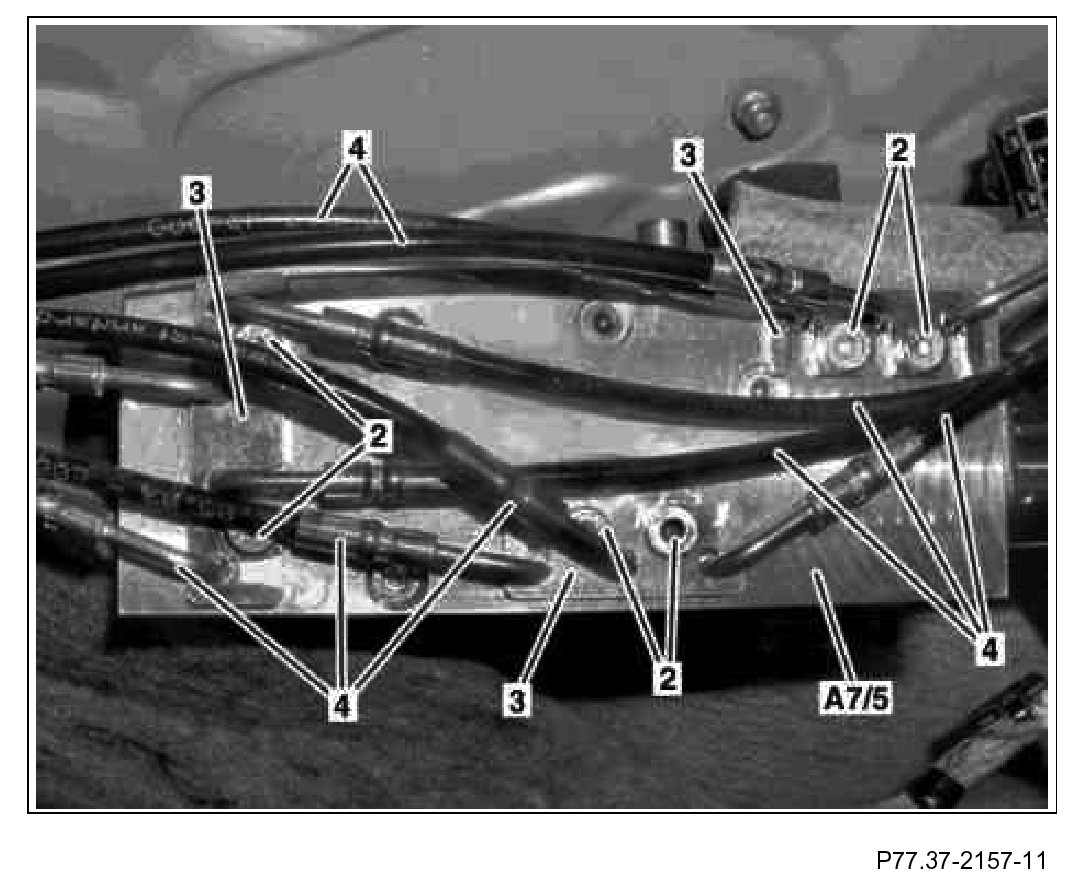

2. Unscrew bolts (2).

Installation: Observe tightening torque for bolts (2).

3. Remove connection plates (3) from soft top mechanism hydraulic unit (A7/5).
4. Disconnect hydraulic lines (4) from soft top mechanism hydraulic unit (A7/5).

Lay rag under soft top mechanism hydraulic unit (A7/5), close hydraulic lines (4) and connections on soft top mechanism hydraulic unit (A7/5) with plug to prevent soiling vehicle passenger compartment
Observe marking on hydraulic lines (4). The connections on soft top mechanism hydraulic unit (A7/5) and hydraulic lines (4) are number-coded

5. Connect hydraulic lines (4) in opposite order.
