AR77.30-P-6235V Close Vario Roof Manually

AR77.30-P-6235V Close Vario Roof Manually

WARNING!
If the retractable hardtop does not completely open or close, the roof hydraulics will lose pressure and the retractable hardtop is lowered.

- after approximately 7 minutes when the ignition is switched on
- after approximately 15 seconds when the ignition is switched off

Shortly before the hardtop is lowered, a warning sound. In the multifunction display you will see an icon and the message "Retractable roof being opened".

- Properly lock retractable hardtop before continuing to drive.

WARNING!
Manually closing the retractable hardtop is a complicated and techinically demanding procedure and should only be performed by a qualified technician. Attemptim to manually close the retractable hardtop may cause damage to the retractable hardtop and/or personal injury.

WARNING!
To prevent possible accidents, drive the vehicle only with the retractable hardtop either completely closed and locked, or fully lowered into its storage compartment.

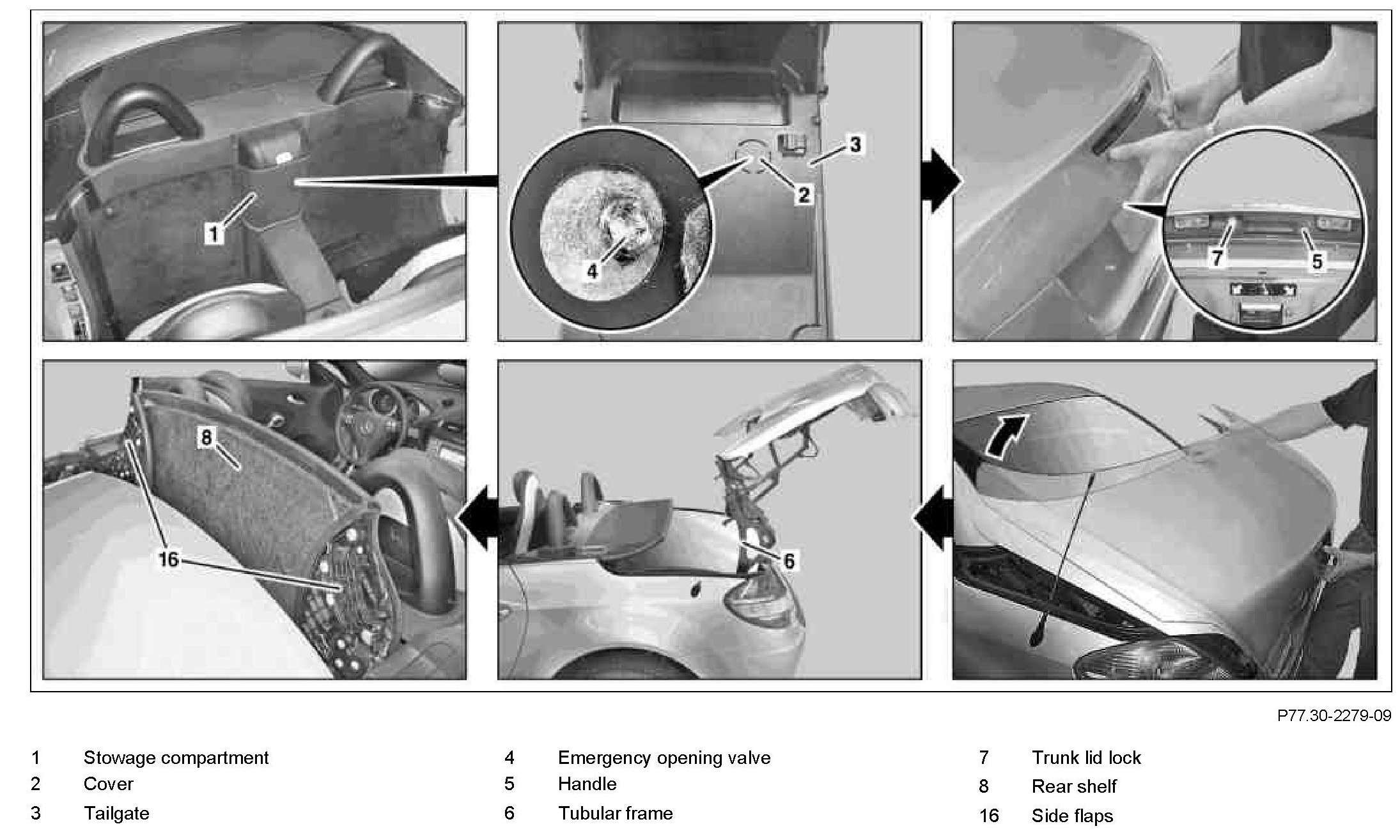

Component Identification:

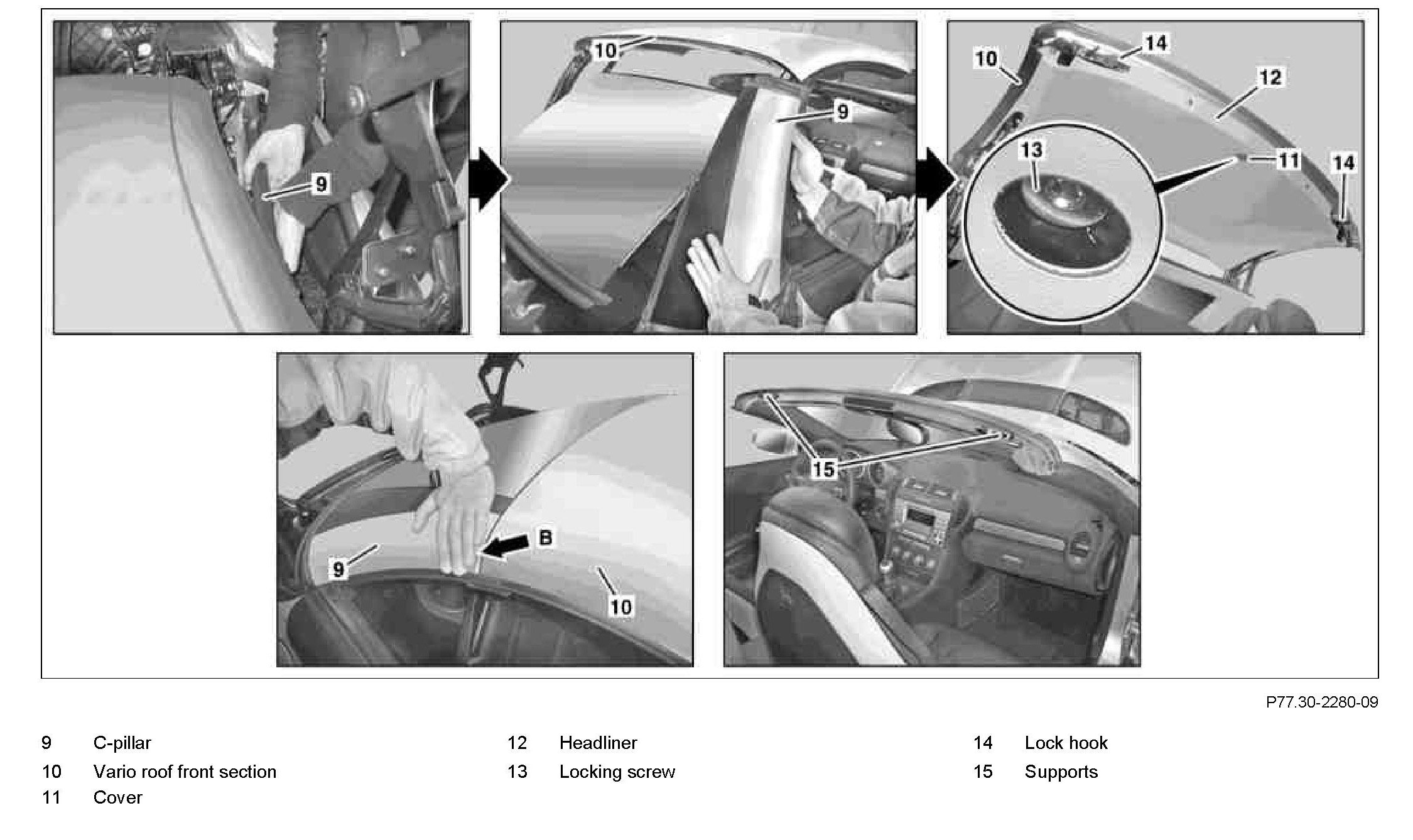

Component Identification:

Component Identification:

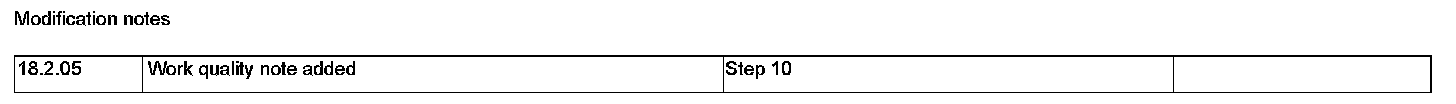

Modification Notes:

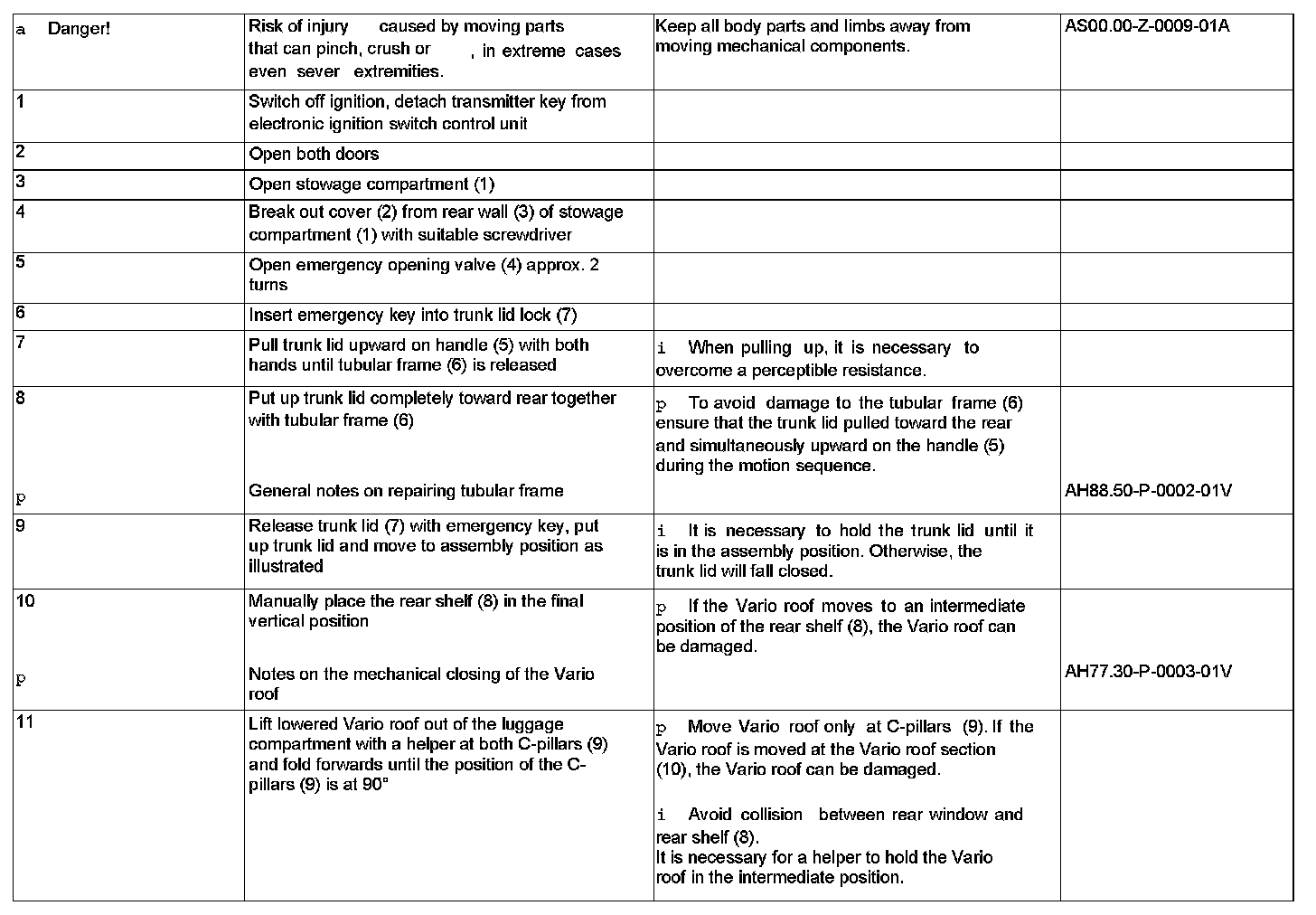

Steps 1 - 11:

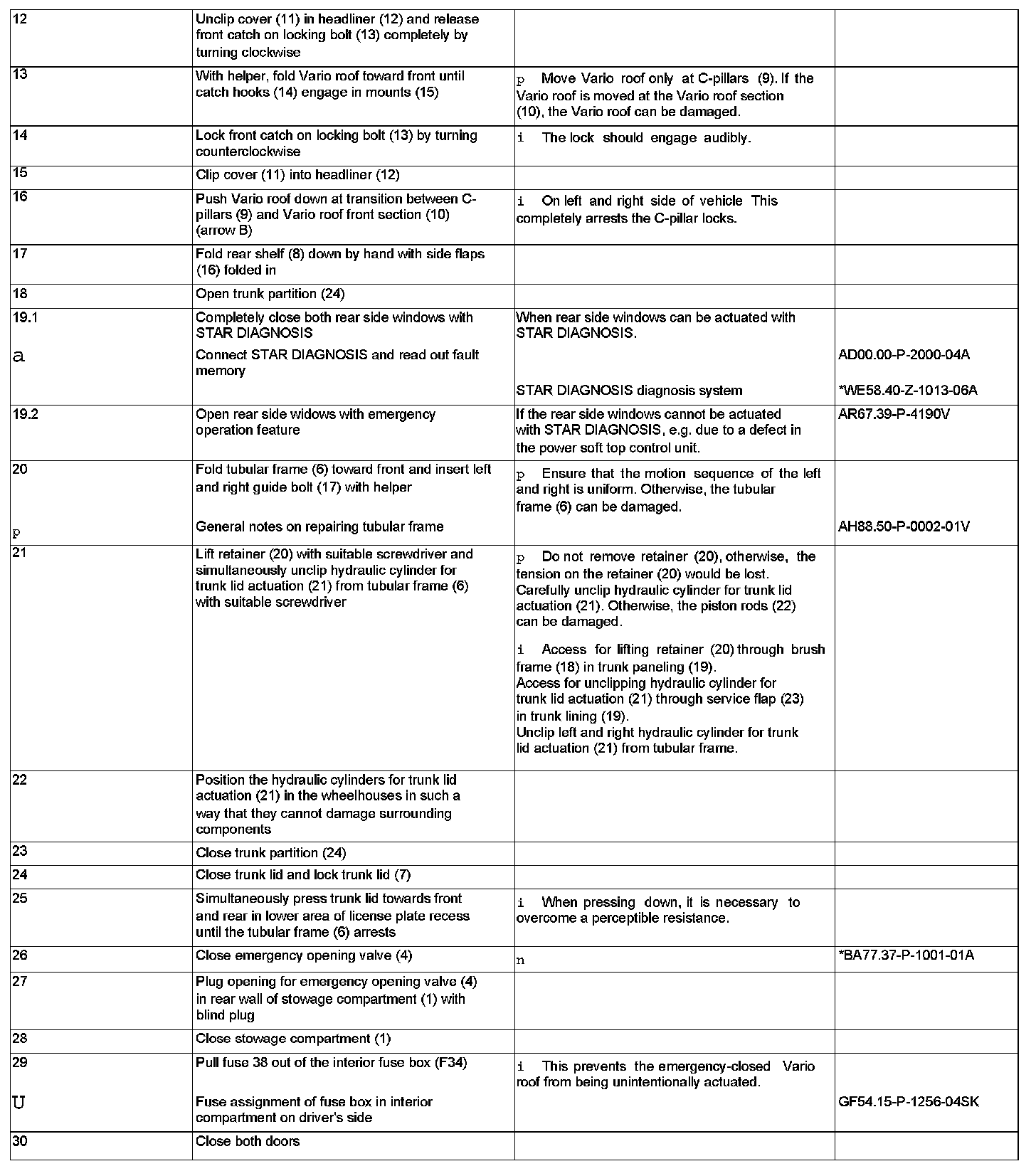

Steps 12 - 30:

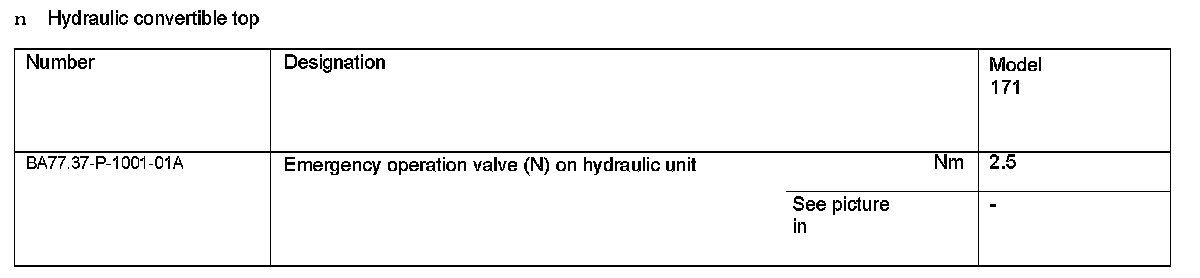

Hydraulic Convertible Top:

Workshop Equipment/MB Testers:
