GF91.29-P-2003SK Call Up Stored Seat Positions, Function

GF91.29-P-2003SK Call Up Stored Seat Positions, Function
- with CODE (275) Memory package (driver seat, steering column, mirrors)
- with CODE (242) Electrically adjustable front passenger seat with memory

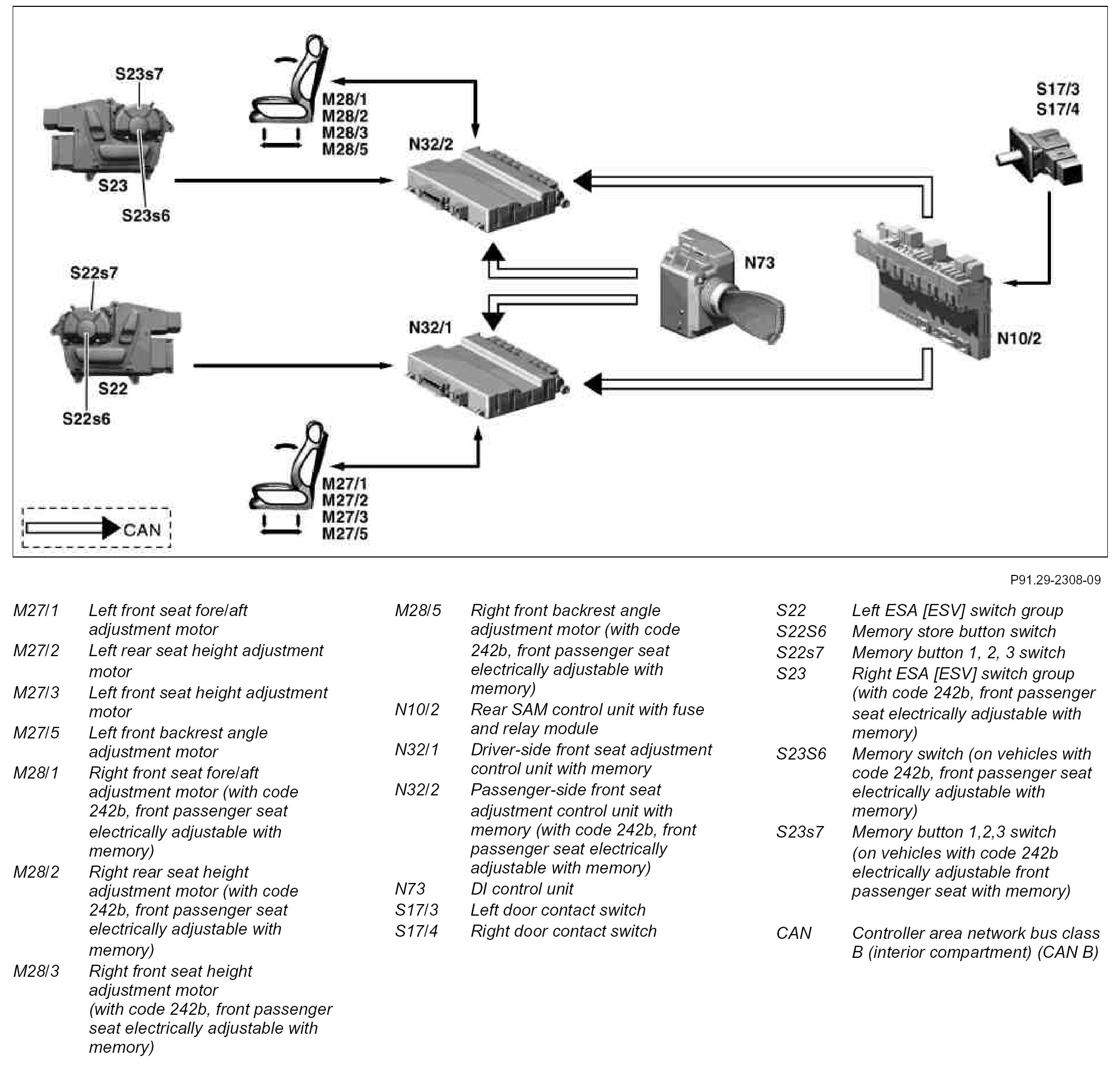

Component Identification:

Recall manually saved positions

Function requirements
^ Terminal 15R ON or
^ Circuit 15 ON or
^ Particular door open.
^ Seat position stored.

Function
To move the seat to a position stored in the memory, press and hold down the corresponding button on the memory button (1,2,3) switch (S22s7 or S23s7) for the driver or passenger seat until the stored end position is reached.

If the button is released, the adjustment procedure is terminated immediately.

Recall automatically saved positions

Function requirements
^ Key-dependency must be activated in the instrument cluster.

Function
When circuit 15C is switched on, the driver seat is automatically moved to the most recently stored driver seat position.
