AR91.10-P-3436V Remove/Install Drive Shaft Protection For Seat Fore/Aft Adjustment

AR91.10-P-3436V Remove/install Drive Shaft Protection For Seat Fore/Aft Adjustment
- as of 191915
- with CODE (275) Memory package (driver seat, steering column, mirrors)
- with CODE (242) Electrically adjustable front passenger seat with memory

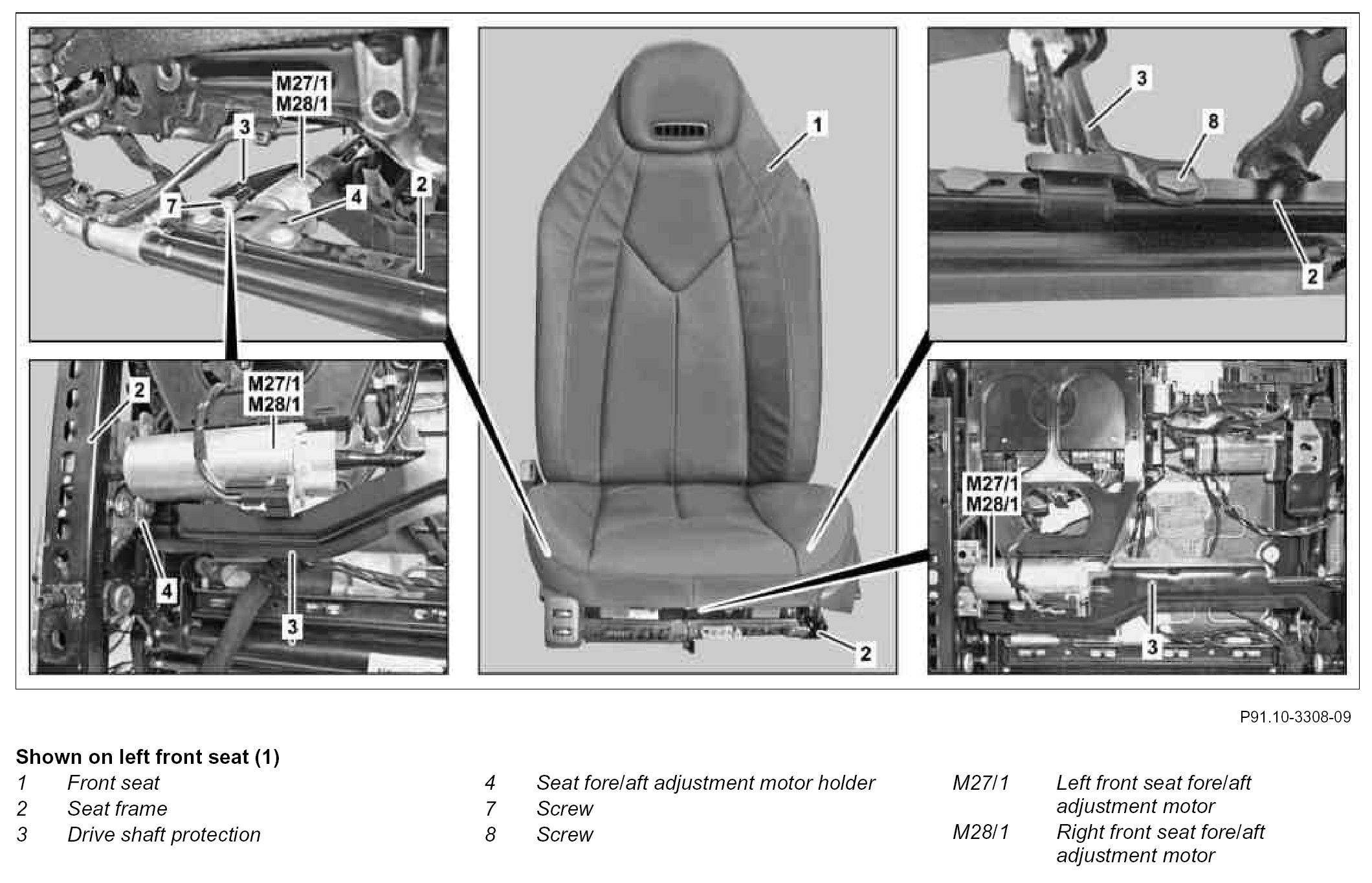

Shown on left front seat (1)

Component Identification:

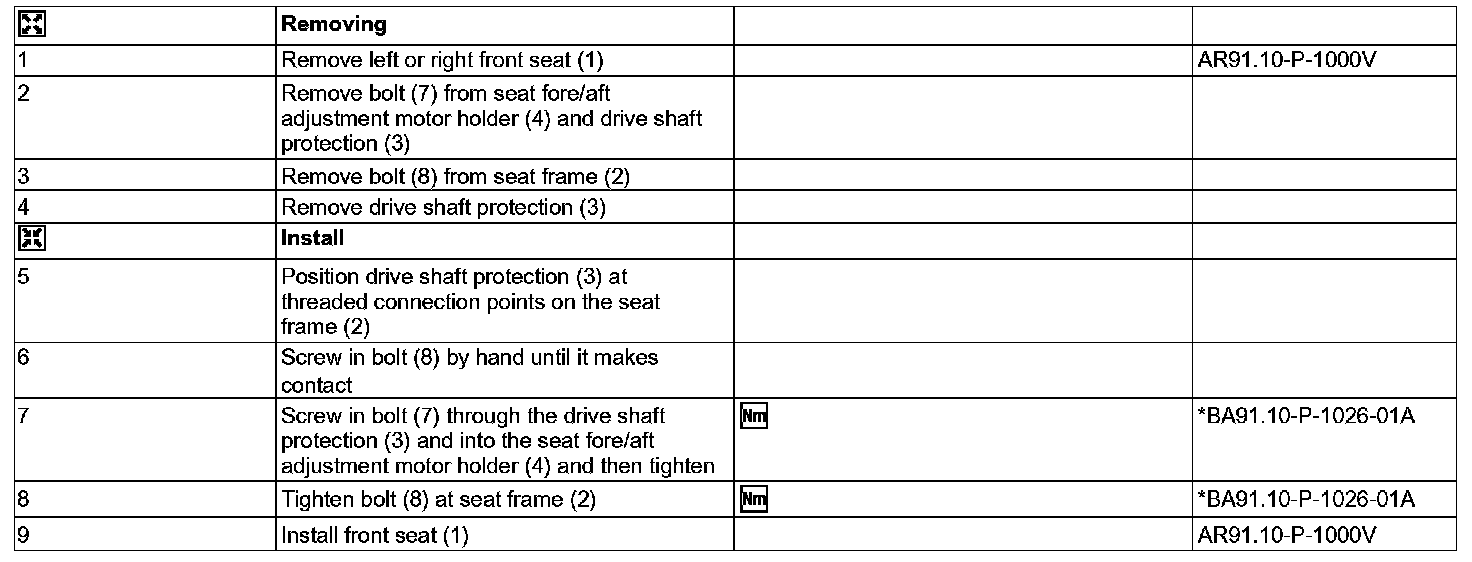

Steps 1 - 9:

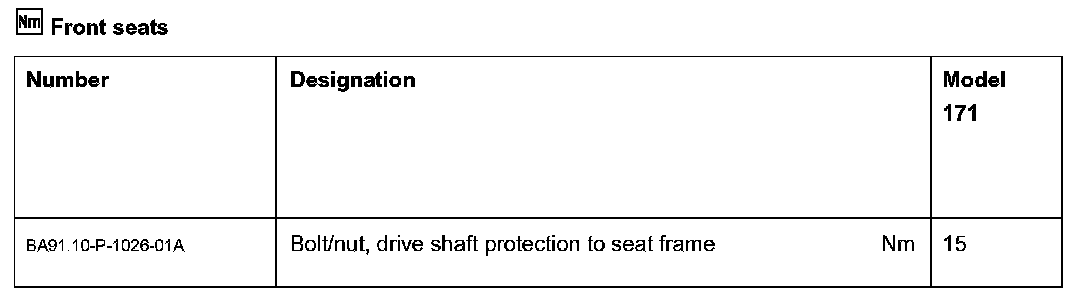

Front Seats:
