PE82.85-P-2056TB Electrical Function Diagram For COMAND Voice Control

Electrical Function Diagram For COMAND Voice Control PE82.85-P-2056TB
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version

Function Diagram (Part 1):

Function Diagram (Part 2):

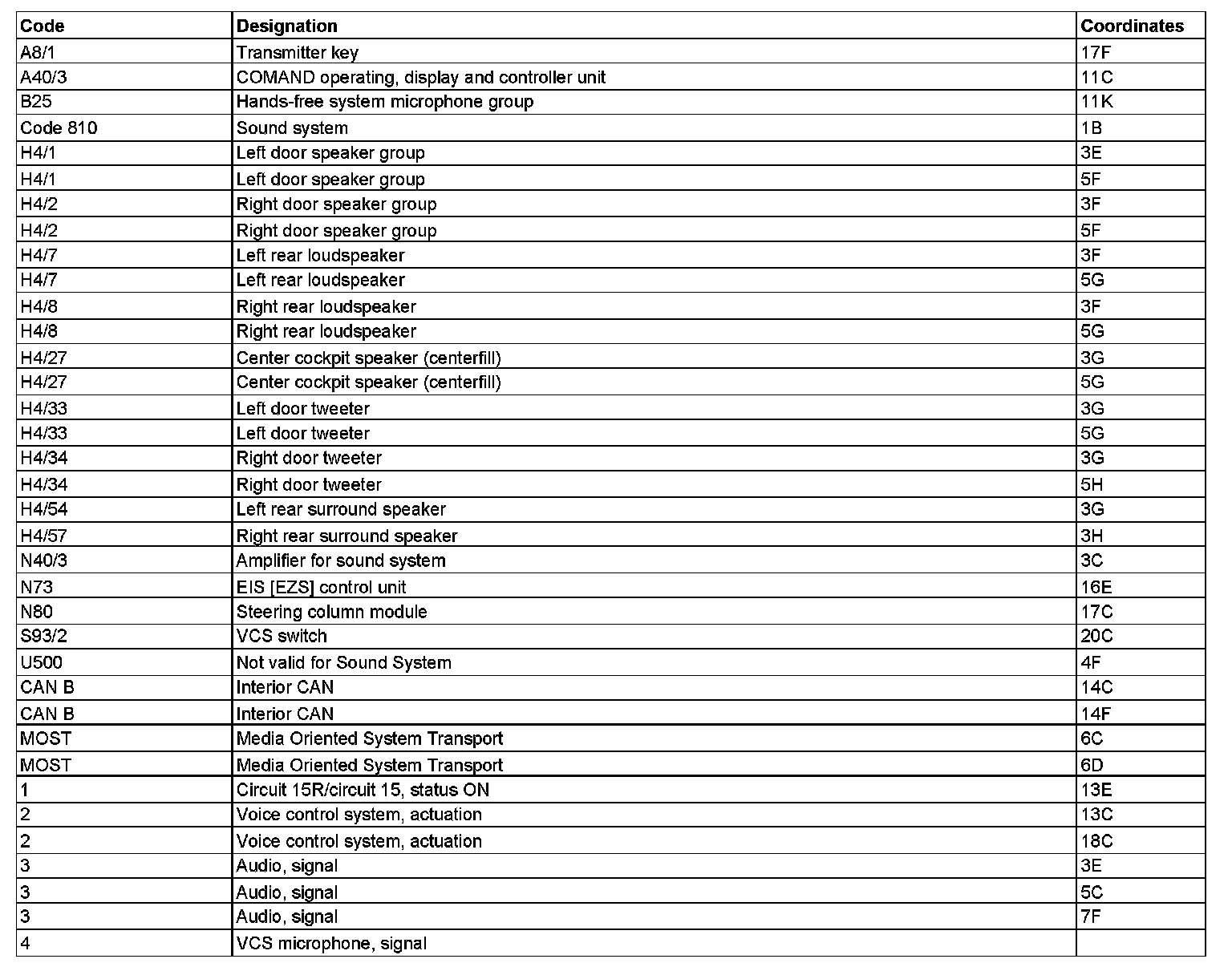

Component Description/Coordinates, A8/1 To 4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
