PE82.85-P-2064TB Electrical Function Diagram For Video Mode, Function

Electrical Function Diagram For Video Mode, Function PE82.85-P-2064TB
- with CODE (527) COMAND APS with single DVD drive (with navigation)
- with CODE (498) Japan version

Function Diagram (Part 1):

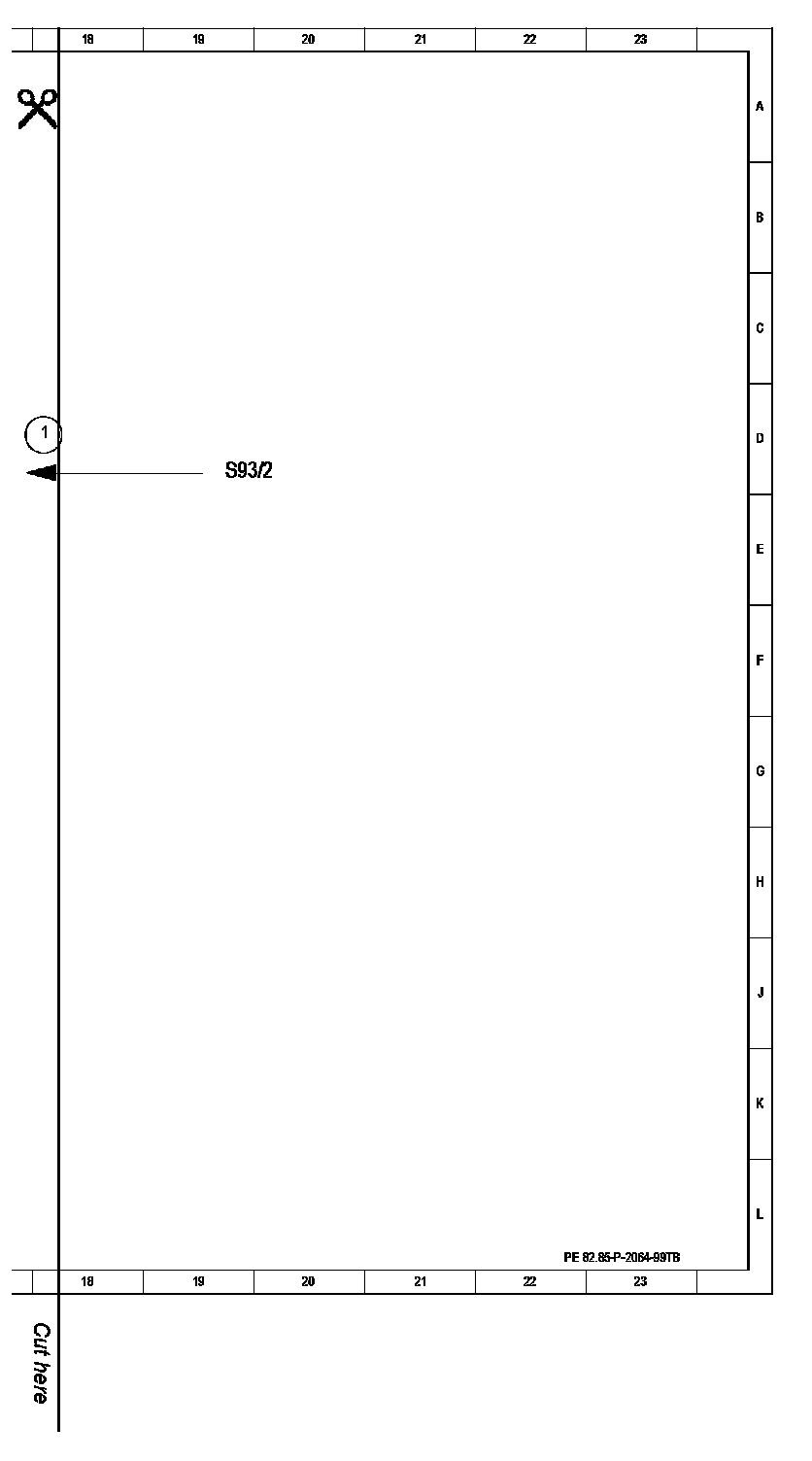

Function Diagram (Part 2):

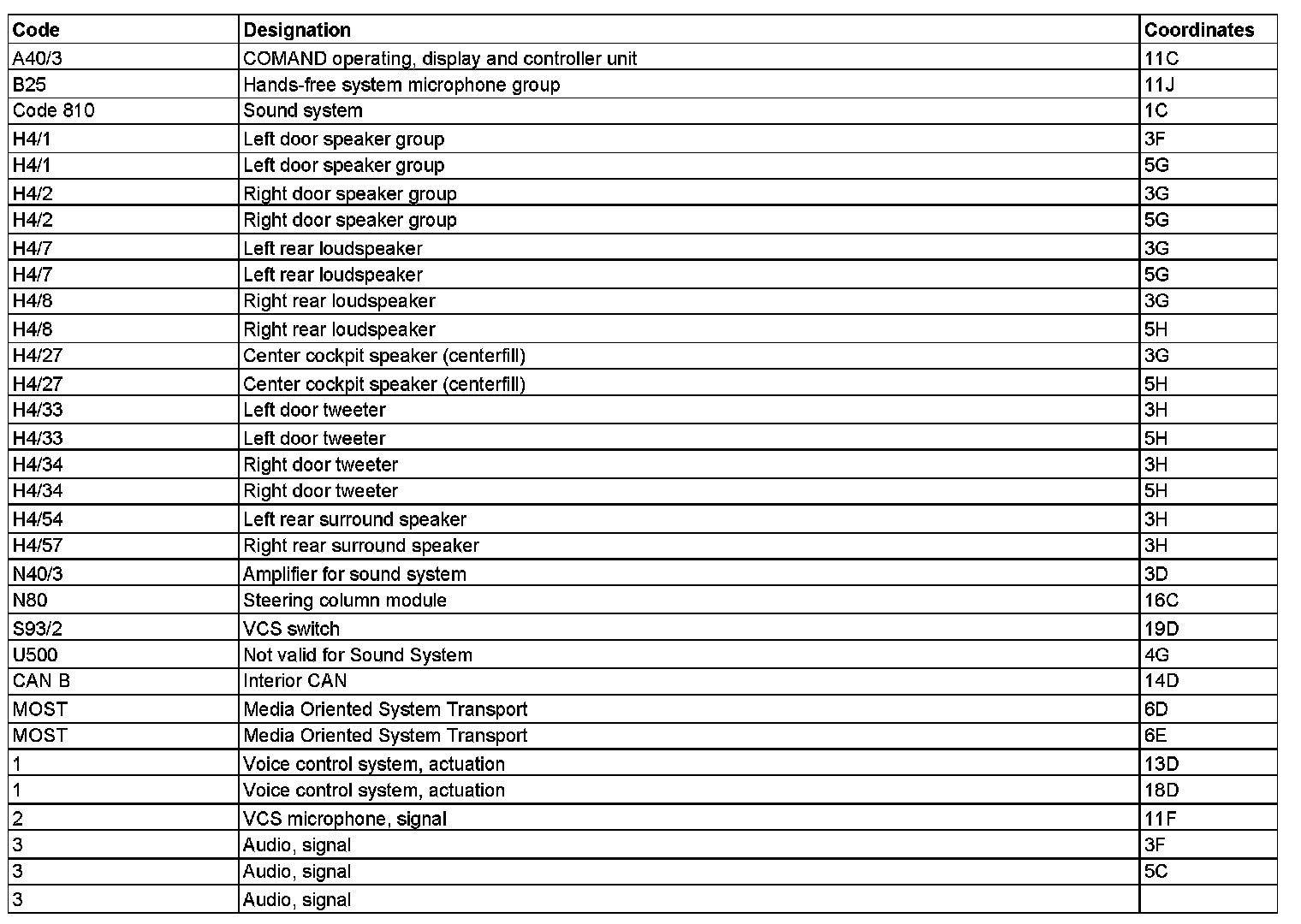

Component Description/Coordinates, A40/3 To 3:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
