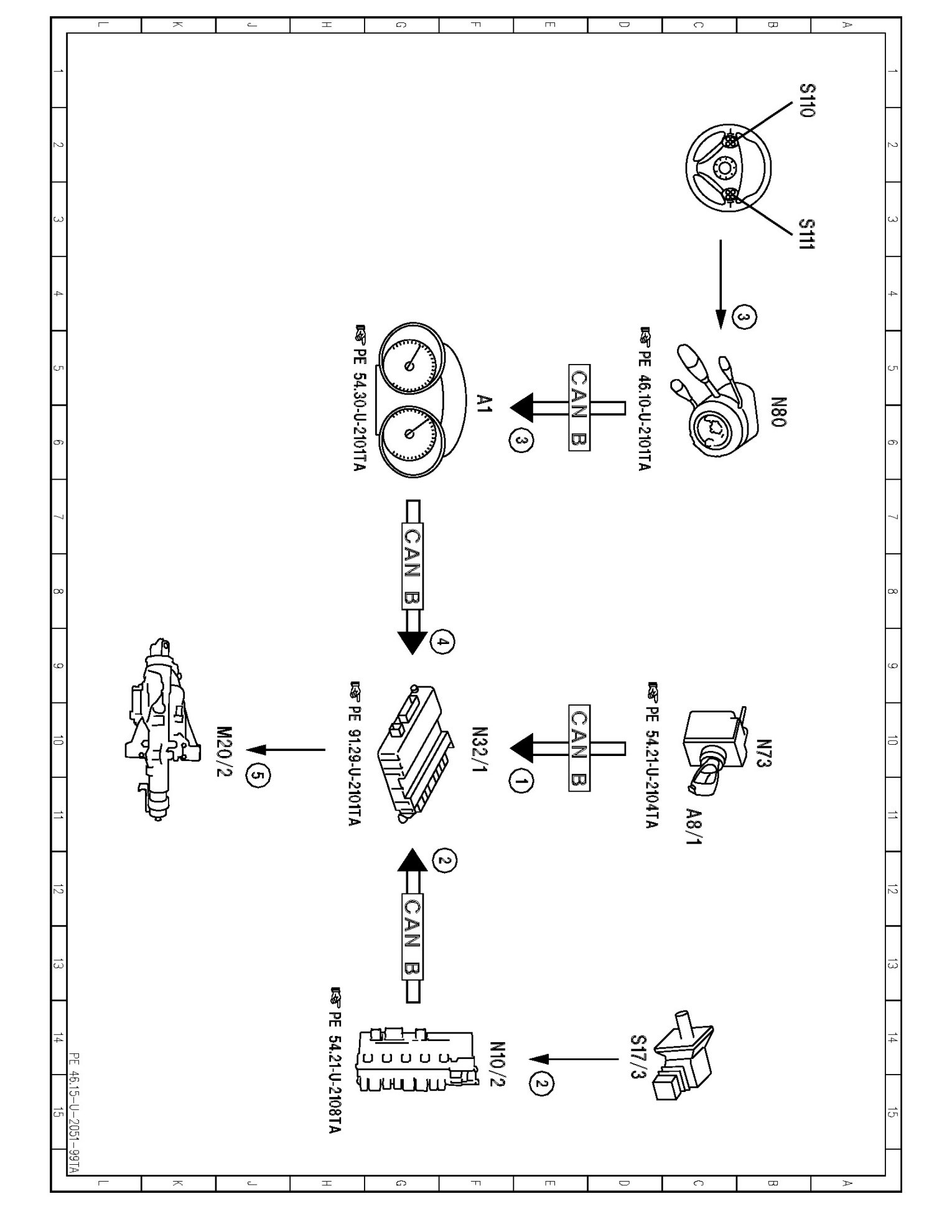

PE46.15-U-2051TA Electrical Function Schematic For Steering Column Easy Entry/Exit Adjustment

PE46.15-U-2051TA Electrical Function Schematic For Steering Column Easy Entry/Exit Adjustment
- with CODE (275) Memory package (driver seat, steering column, mirrors)











Component Locations: Component Locations photographs can be found via their component names at the vehicle level. Component Locations
