PE82.30-P-2053TA Electrical Function Schematic For Automatic Speed Reduction

Electrical Function Schematic For Automatic Speed Reduction PE82.30-P-2053TA
- except CODE (494) USA version

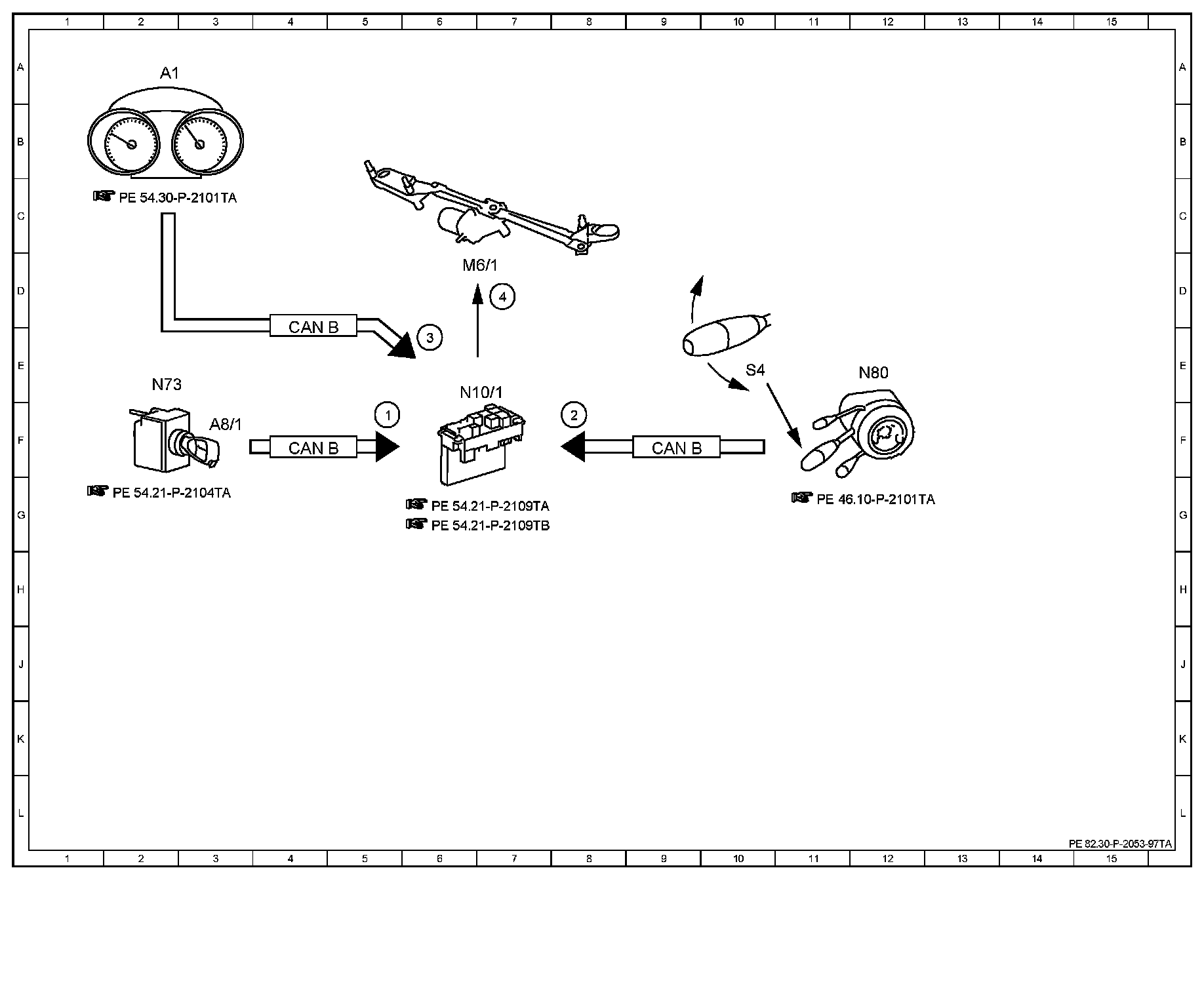

Function Diagram:

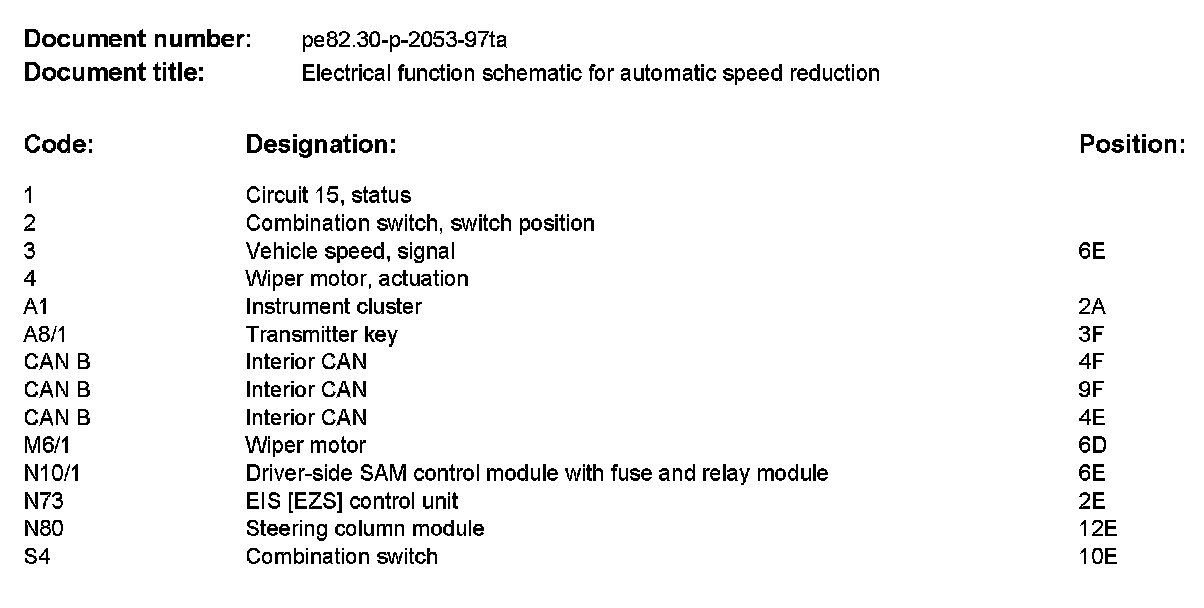

Component Description/Coordinates, 1 To S4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
