Engine: Application and ID

AH01.00-P-0001-01D Notes On Position Of Engine Number
ENGINE 112, 113, 120, 137, 271, 272, 273, 275, 285, 628, 629, 642, 651

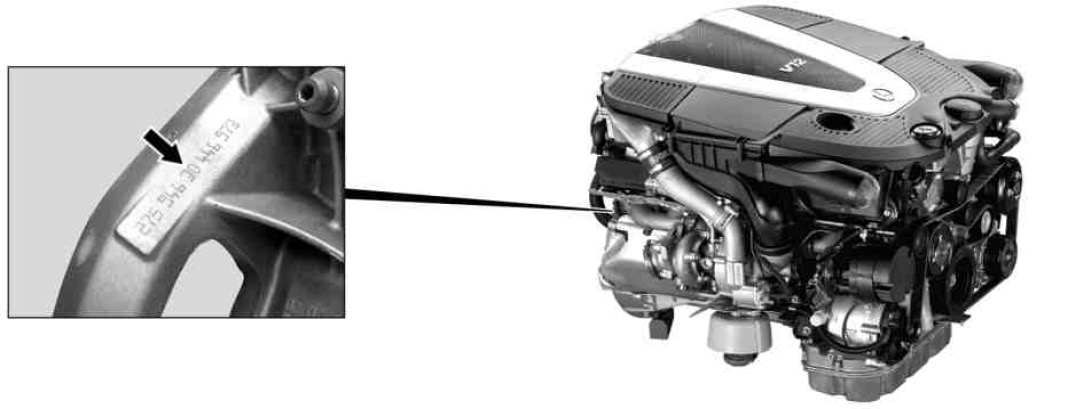

Shown on engine 275

The engine number is located on the upper right transmission flange.

With OM 642 the engine number is located on the left front on the cylinder crankcase below the vacuum pump

With OM 651 the engine number is located on the left side on the cylinder crankcase below the vacuum pump
