AR01.30-P-5800-07VA Tightening Specifications For Cylinder Head Bolts

AR01.30-P-5800-07VA Tightening specifications for cylinder head bolts

Modification Notes

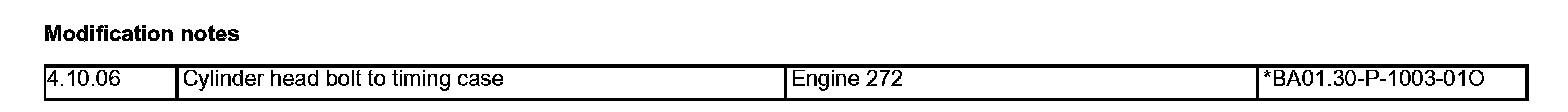

Modification notes:

Cylinder head:

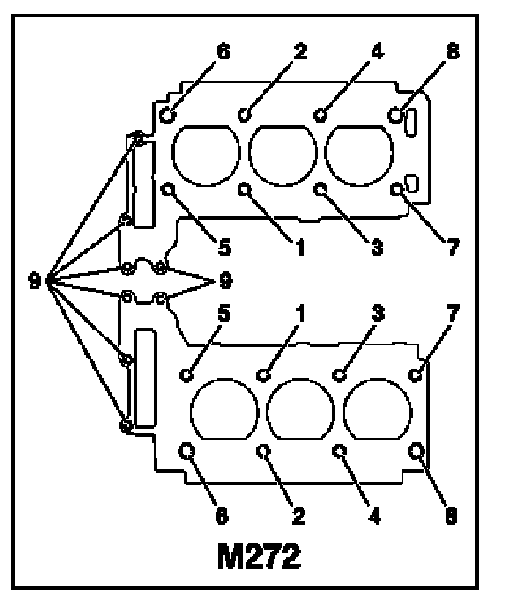

Tightening of the cylinder head bolts must take place according to the numerical sequence given in the figure. Loosening of bolts takes place in reverse order.

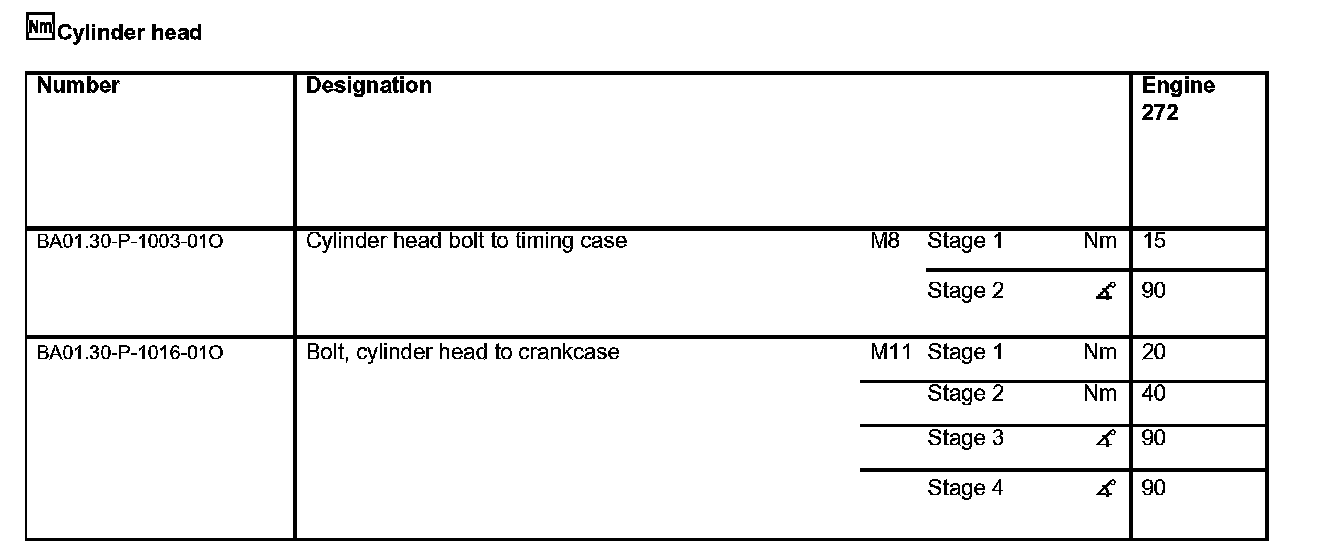

1 Tighten cylinder head bolts (1-8) to stage 1.
2 Tighten cylinder head bolts (1-8) to stage 2.
3 Tighten cylinder head bolts (1-8) to stage 2 (follow-up tightening).
4 Tighten cylinder head bolts (1-8) to stage 3.
5 Tighten cylinder head bolts (1-8) to stage 4.
6 Tighten bolts (9).

M272:
