AR18.10-P-2140-01TX Separate Oil-Pump Chain

AR18.10-P-2140-01TX Separate oil-pump chain

Special Tools:

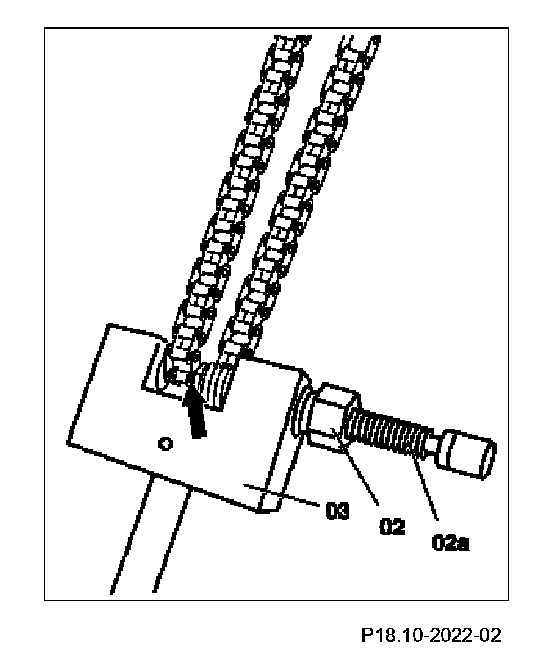

Component Identification:

1 Screw the pressure screw (02) with the pressure pin (02a) into the chain separating tool (03).
2 Fit chain separating tool (03) onto oil pump chain.
3 Turn in pressure screw (02).

Turn in until the pressure pin (02a) contacts the bolt on the oil pump chain (arrow).

4 Turn in pressure pin (02a) and press out bolt of oil pump chain.

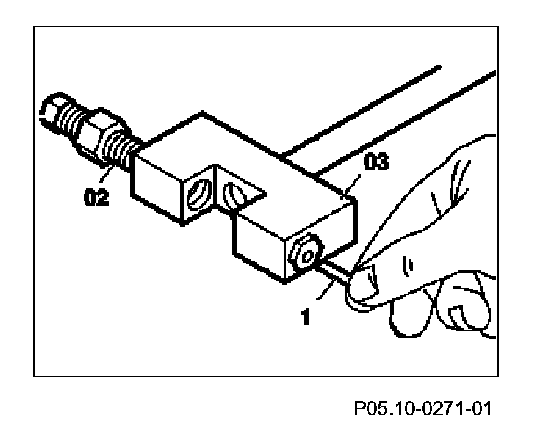

Component Identification:

5 Unscrew pressure screw (02) and remove chain separating tool (03).
6 Remove bolt (1) of oil pump chain from chain separating tool (03).
