AR18.10-P-2140-02TX Rivet Oil Pump Chain

AR18.10-P-2140-02TX Rivet oil pump chain

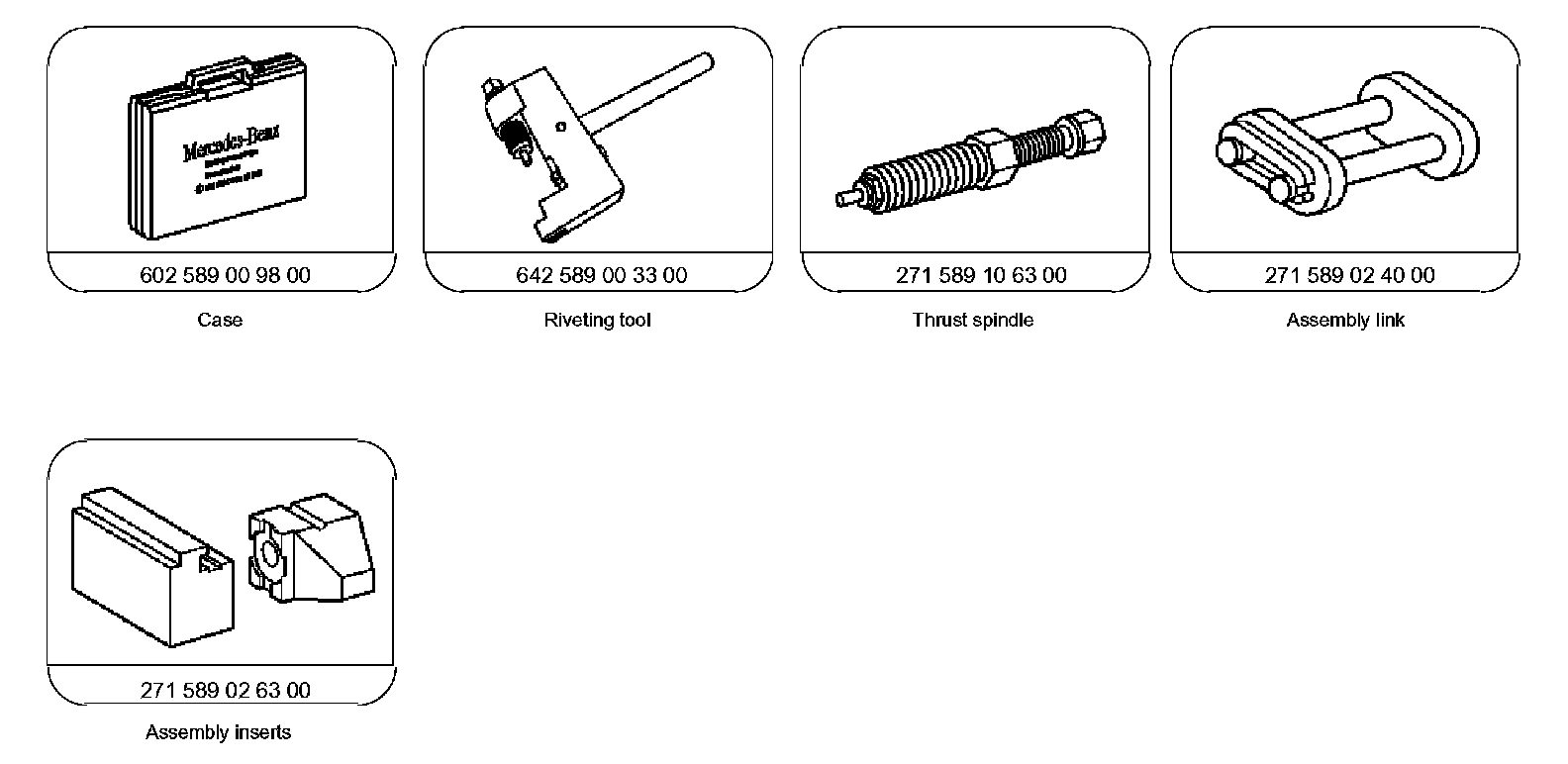

Special Tools:

Component Identification:

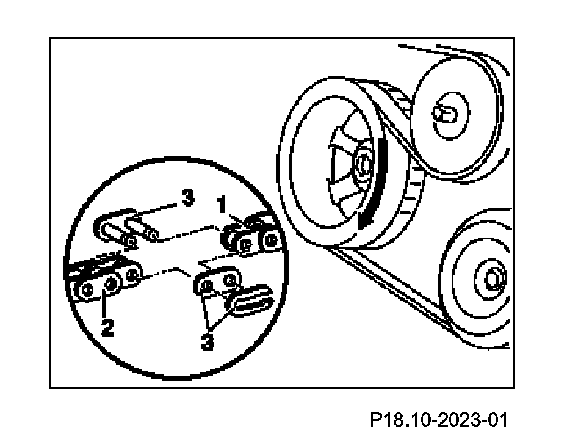

1 Connect new oil pump chain (2) and old oil pump chain (1) together using an assembly link (3).
2 Slowly rotate crankshaft in the direction of engine rotation (arrowed) until it is possible to connect both ends of the new oil pump chain (2).
3 Remove assembly link (3) and old oil pump chain (1).

Component Identification:

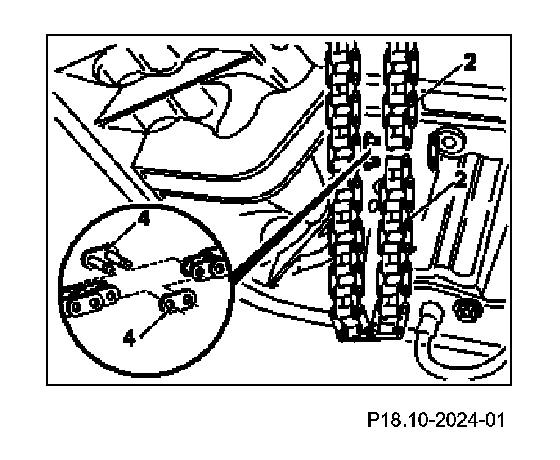

4 Connect ends of new oil pump chain (2) using a riveted link (4).

Insert riveted link (4) from front.

Component Identification:

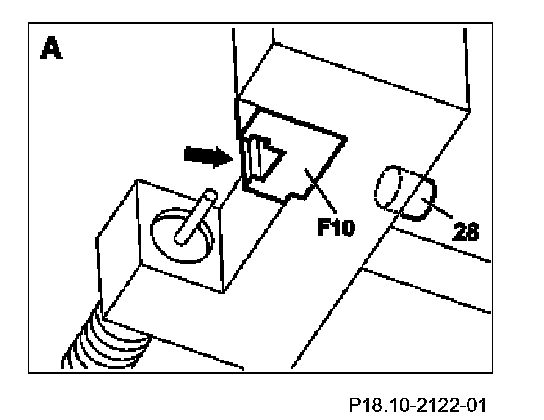

5 Place assembly insert with digit F10 into rivet press tool (arrow) and fix in place by a bolt (28).

Component Identification:

6 Place moveable assembly insert with digit D10 into rivet press tool (arrow).

Component Identification:

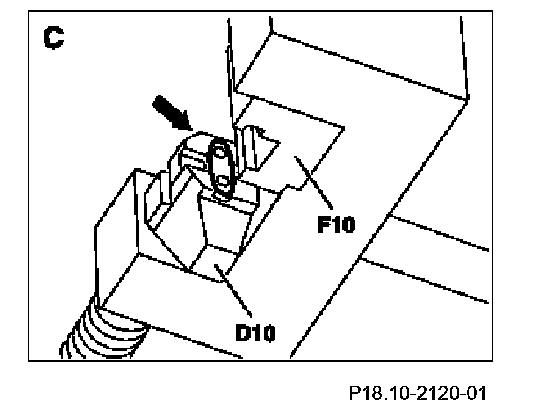

7 Insert outer plate (5) of the rivet link (4) into the assembly insert with the digit D10 (arrow).

Component Identification:

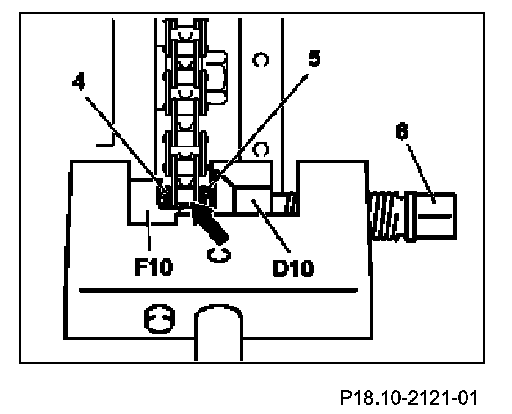

8 Place rivet press tool on the new oil pump chain (2).

Fit in such a way that the rollers of the riveted link (4) rest on the spacer web (arrow).

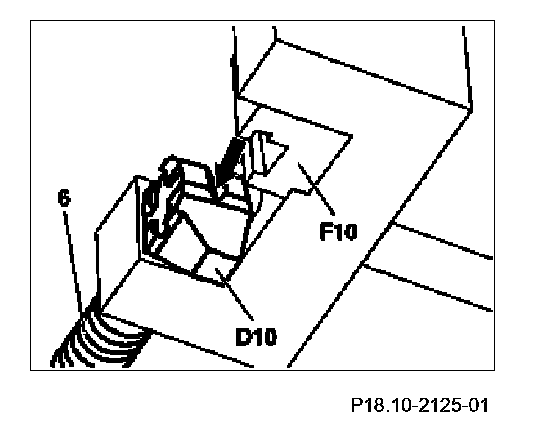

9 Tighten pressure screw (6) until a firm resistance is felt.

While turning the pressure screw (6), ensure that pin in rivet link (4) is inserted in holes in the external mounting link (5).

10 Remove rivet press tool.

Component Identification:

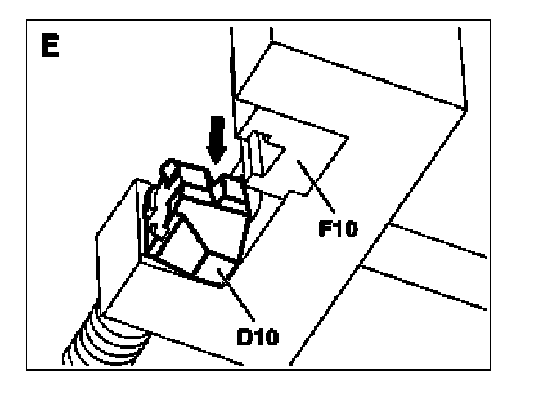

11 Move assembly insert with digit D10 onto rivet profile (arrow).

Component Identification:

12 Place rivet press tool on new oil pump chain (2) riveted link (4).

Fit the in such a way that pins for the riveted link (4) are located exactly in the center of prism support (arrow).

13 Tighten pressure screw (6).

The torque applied to pressure screw (6) is about 30 to 35 Nm (reference value).

14 Rivet bolts for riveted link (4) individually.

Component Identification:

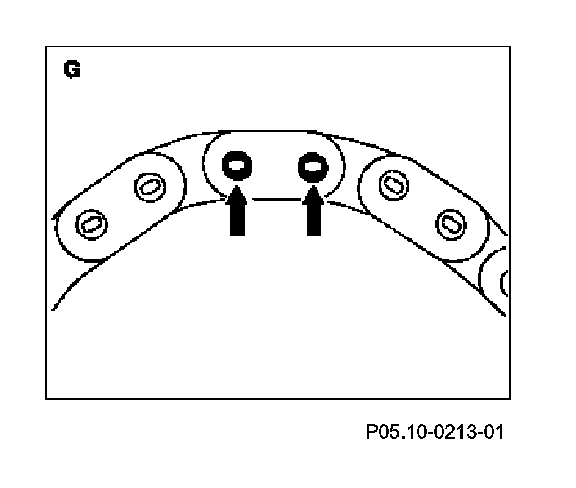

15 Test riveted joints (arrow) and rivet the pins again if necessary.
