AR18.10-P-2140-01TX Separate Oil-Pump Chain

AR18.10-P-2140-01TX Separate Oil-pump Chain





602 589 00 98 00
Case





271 589 10 63 00
Thrust spindle





602 589 02 33 00
Chain separating tool





1 with the pressure pin (Screw the pressure screw (02) 02a) into the chain separating tool (03).

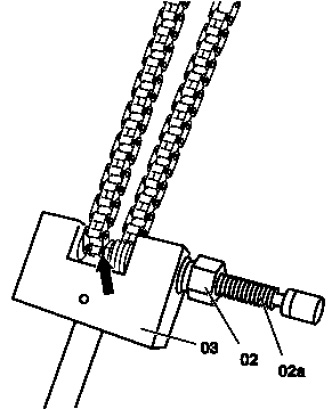

2 Fit chain separating tool (03) onto oil pump chain.

3 Turn in pressure screw (02).
Turn in until the pressure pin (02a) contacts the bolt on the oil pump chain (arrow).

4 Turn in pressure pin (02a) and press out bolt of oil pump chain.





5 Unscrew pressure screw (02) and remove chain separating tool (03).

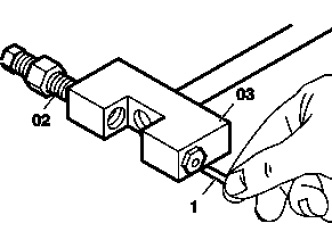

6 Remove bolt (1) of oil pump chain from chain separating tool (03).
