AR33.10-P-0100-01VA Attach Engine Supporting Frame and Lifting Engine

AR33.10-P-0100-01VA Attach Engine Supporting Frame and Lifting Engine





240 589 00 61 00
Engine lifting fixture





Model 171

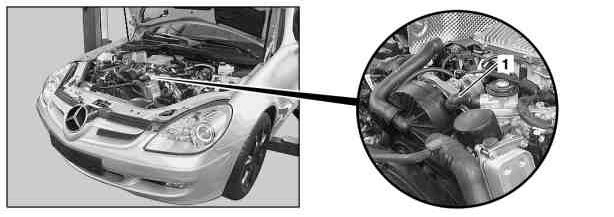

1 Hose





Shown on model 171

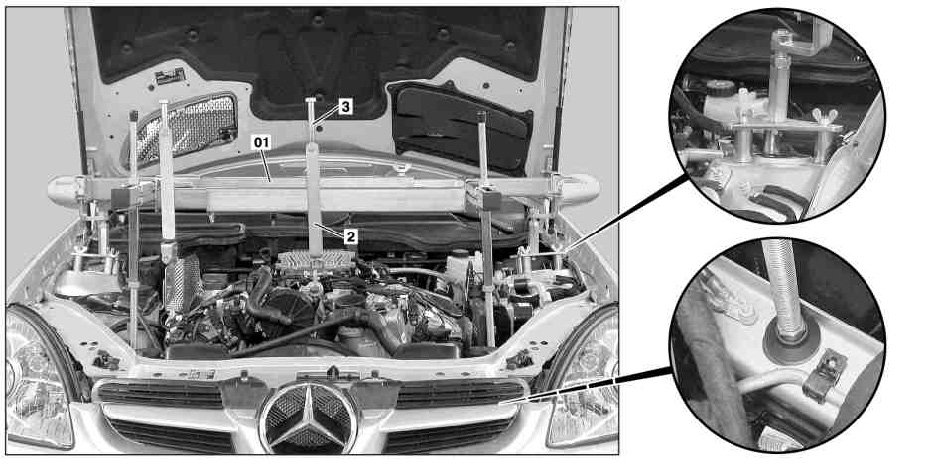

01 Engine hoisting device
2 Lifting device
3 Clamping bolt

Observe the manufacturer's assembly specifications and safety information on the engine lifting device (01), in order to avoid assembly faults.

1 Pull front engine cover up and out.
2.1 Remove hose (1).
Model 171
2.2 Unclip wiring harness from left longitudinal member.
Model 172
3 Mount preassembled engine lifting device (01) onto suspension strut towers and longitudinal members.
When mounting the engine lifting device (01), ensure that in the area of the longitudinal members suspension and strut towers no lines or hoses are pinched and that the paintwork is not damaged.
4 Adjust the engine lifting device (01) and tighten the bolted connections.
5 Mount lifting device (2) onto engine's front lifting eye.
6 Tighten clamping bolt (3) and raise engine far enough to relieve the front engine mount.
