AR01.00-P-2410-02VB Disconnect Engine Wiring Harness

AR01.00-P-2410-02VB Disconnect engine wiring harness
- TRANSMISSION 722.9

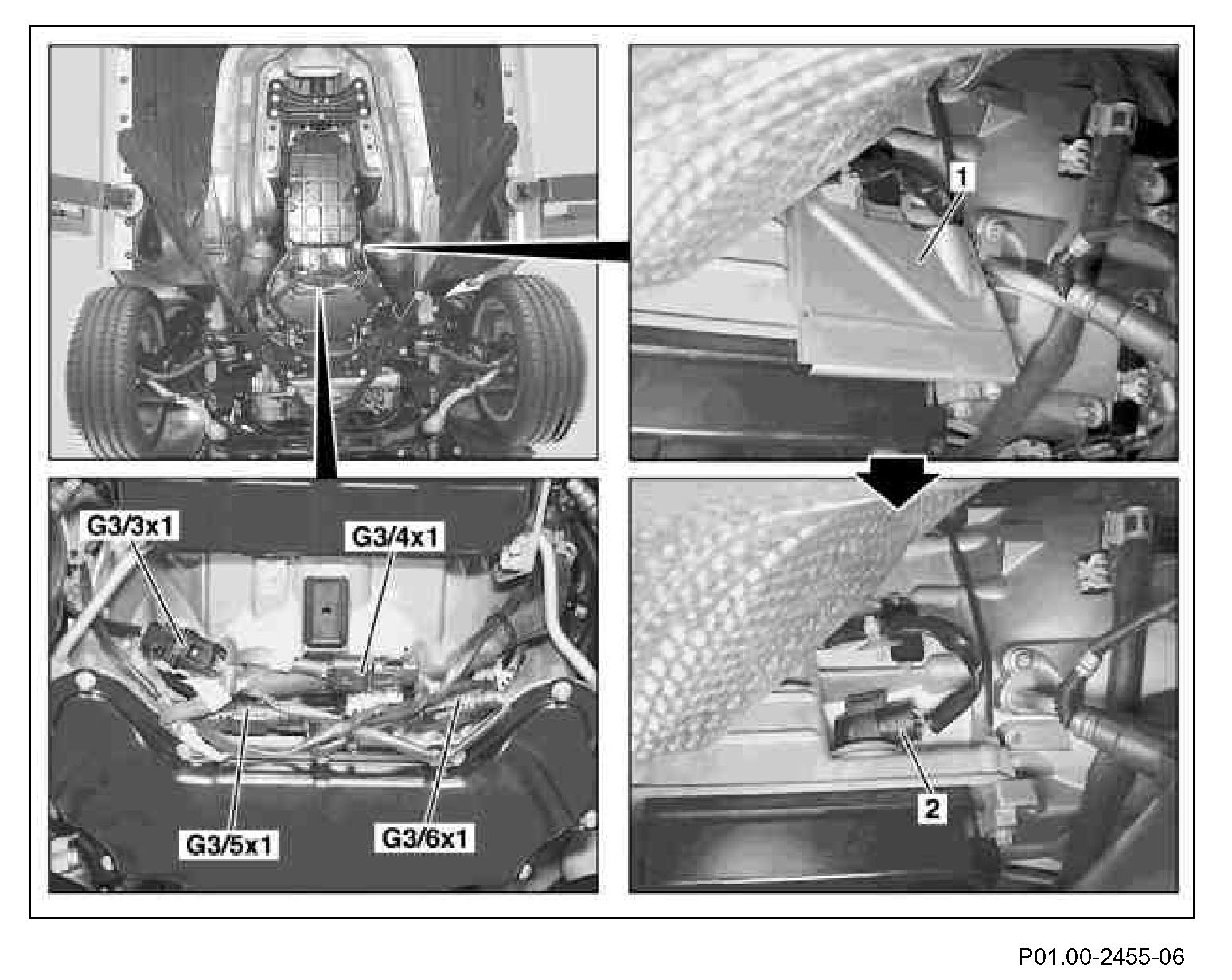

Component Identification:

1 Unclip electrical connectors (G3/3x1, G3/4x1, G3/5x1, G3/6x1) and electrical lines for O2 sensors out of retaining clamps.
2 Disconnect electrical connector (G3,mk3xl, G3/4x1, G3/5x1, G3/6x1) for O2 sensors.
3 Detach the heat shield (1) and disconnect plug (2) from the automatic transmission.

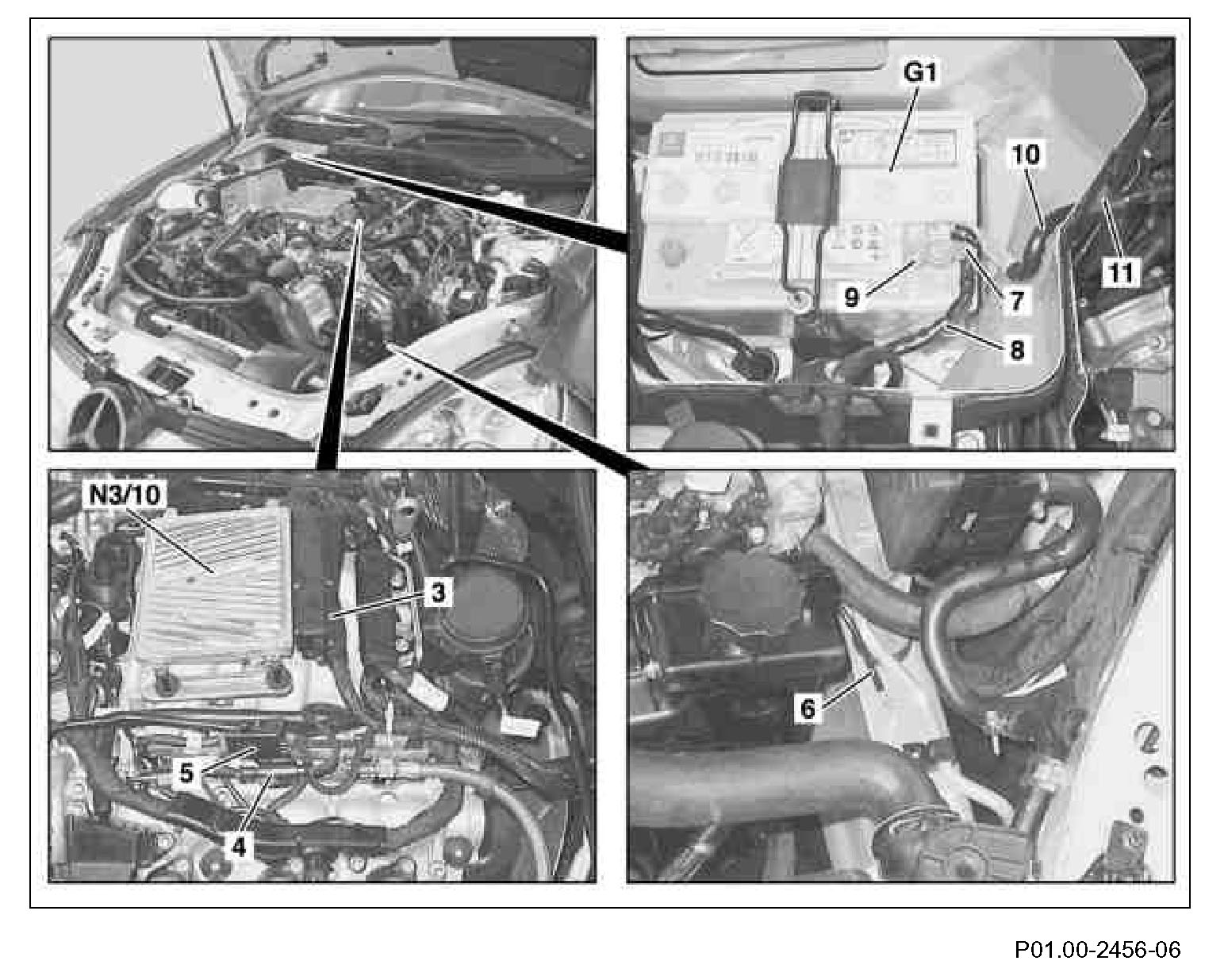

Component Identification:

4 Release plug (3) and disconnect from the ME-SFI [ME] control unit (N3/10).
5 Disconnect electrical connectors (4, 5).
6 Loosen engine wiring harness and place aside.
7 Detach ground line (6) from longitudinal member.
8 Remove nut (7) and electrical line for circuit 30 (8) for battery (G1).
9 Loosen nut (9) and remove electrical line for circuit 30 (10) from battery (G1).
10 Detach sealing (11) from partition wall and lay engine wiring harness on cylinder head cover.
