AR49.10-P-5531-01DA Replacing Rivet Nuts In Exhaust Manifold

Replace rivet nuts in exhaust manifold


103 589 01 39 00 Caulking screw

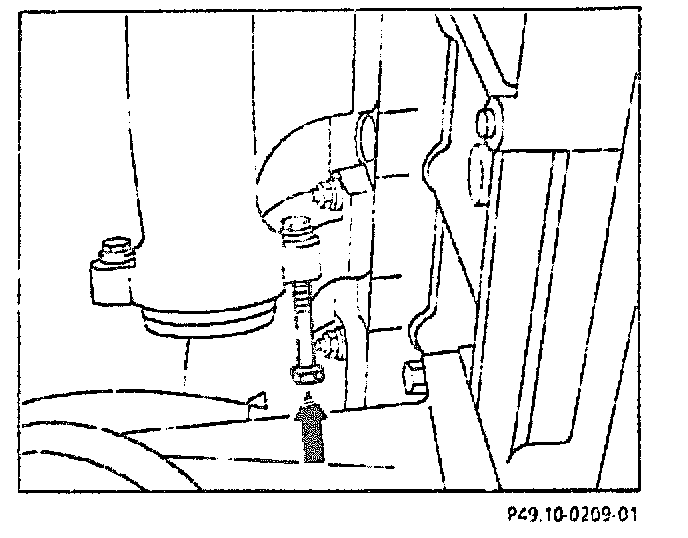

1 Use a suitable bolt (arrow) to knock rivet nuts out of the holes in the exhaust manifold.


NOTE: Screw in bolt by hand only.

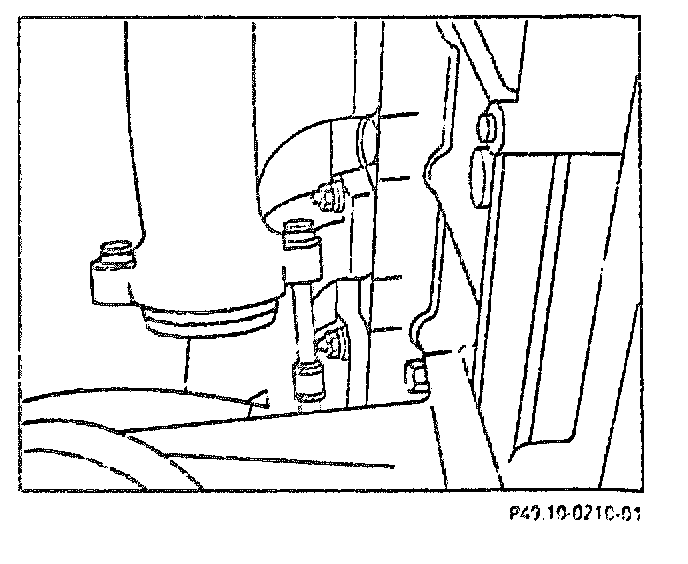

2 Insert new rivet nut into hole of the exhaust manifold.
3 Screw In caulking bolt and tighten to about 30 Nm.
