AR83.30-P-1760V Draining, Evacuating and Refilling Air Conditioning, Checking Function and Checking For Leaks

AR83.30-P-1760V Draining, Evacuating And Refilling Air Conditioning, Checking Function And Checking For Leaks
- with CODE (580) Automatic air conditioning
- with CODE (581) Convenience automatic air conditioning

component Identification:

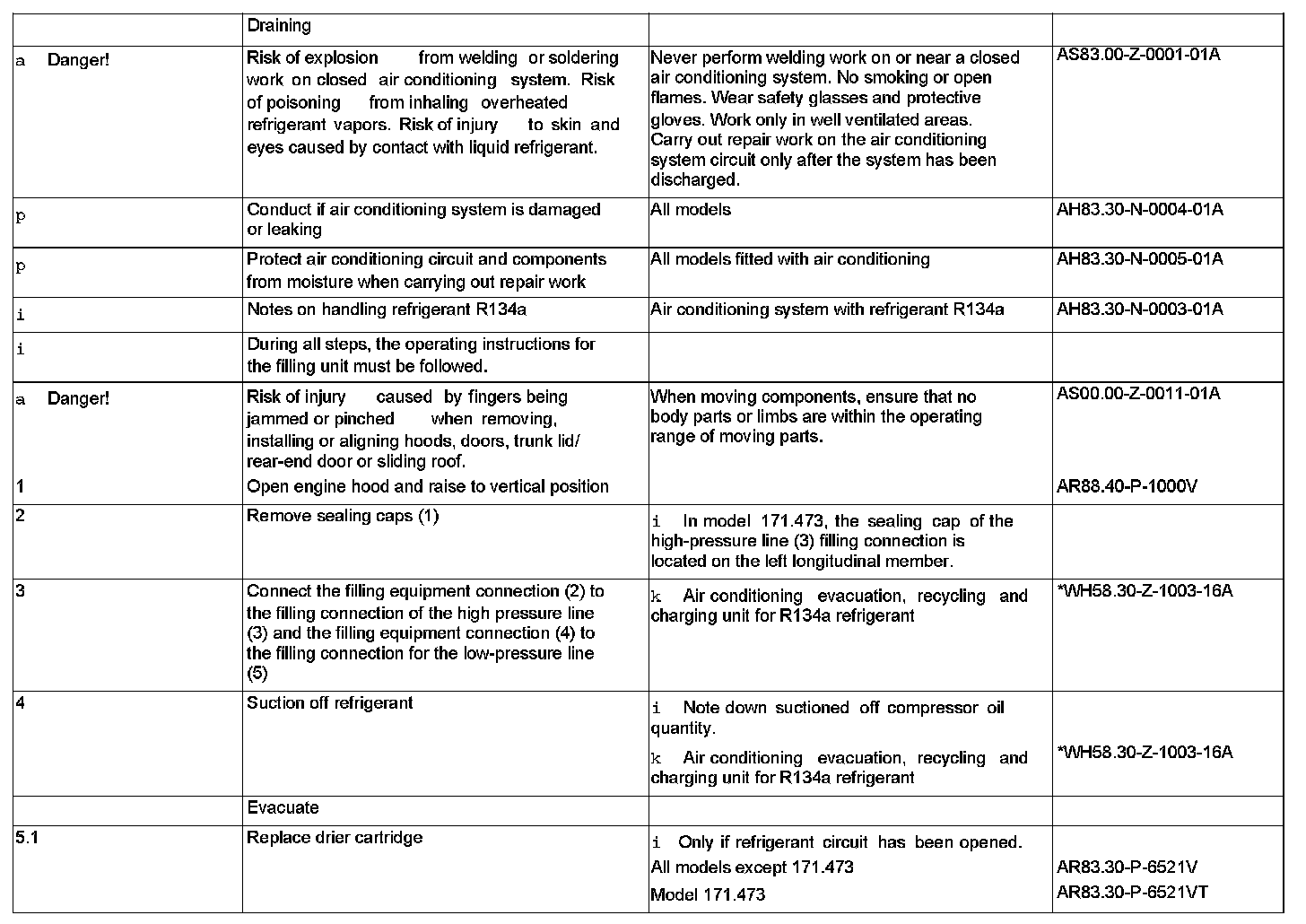

Steps 1 - 5.1:

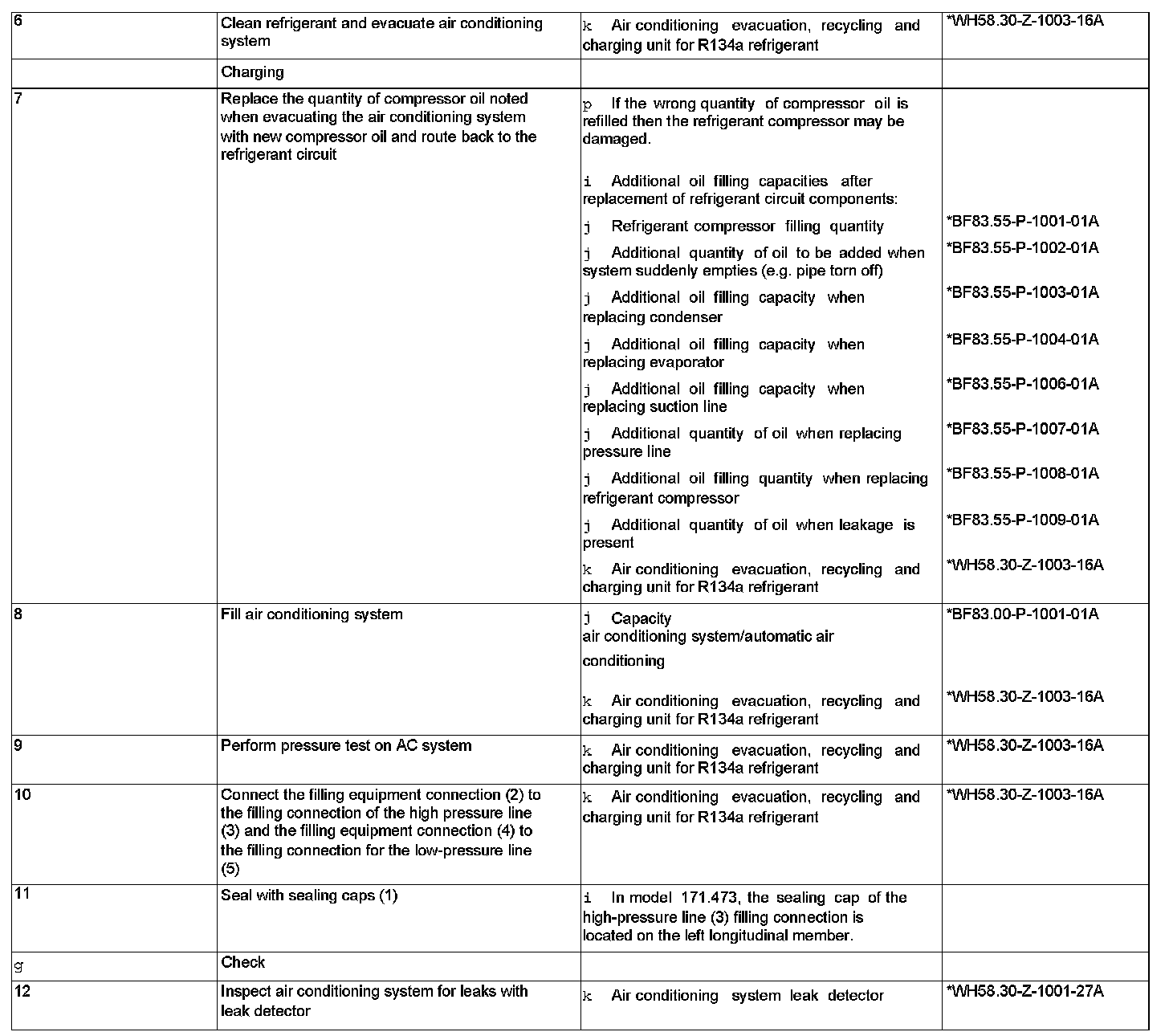

Steps 6 - 12:

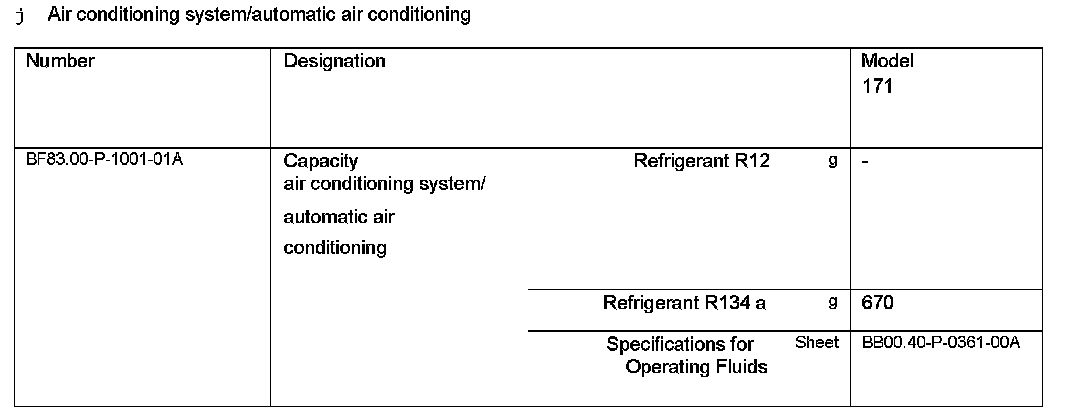

Air Conditioning System/Automatic Air Conditioning:

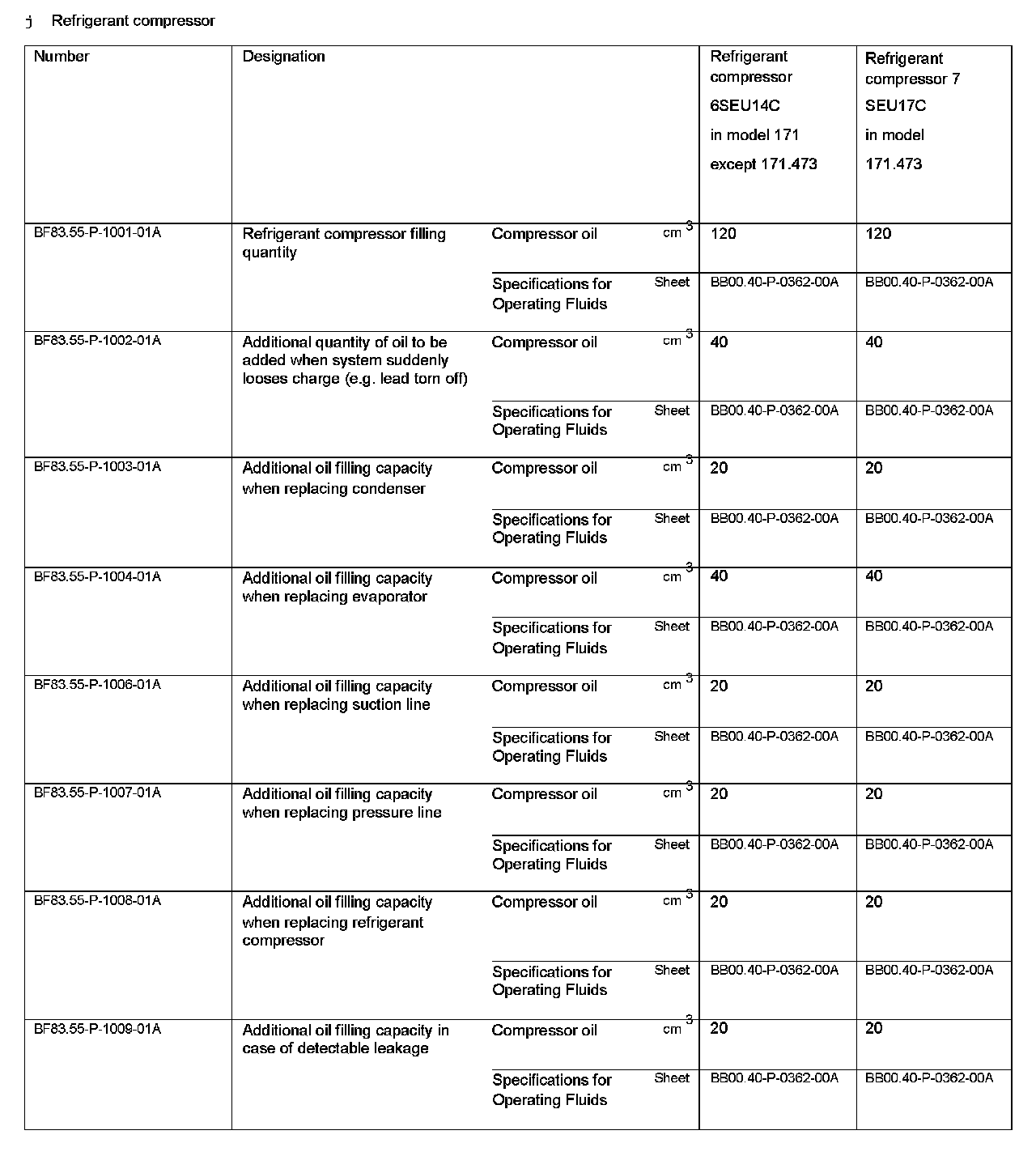

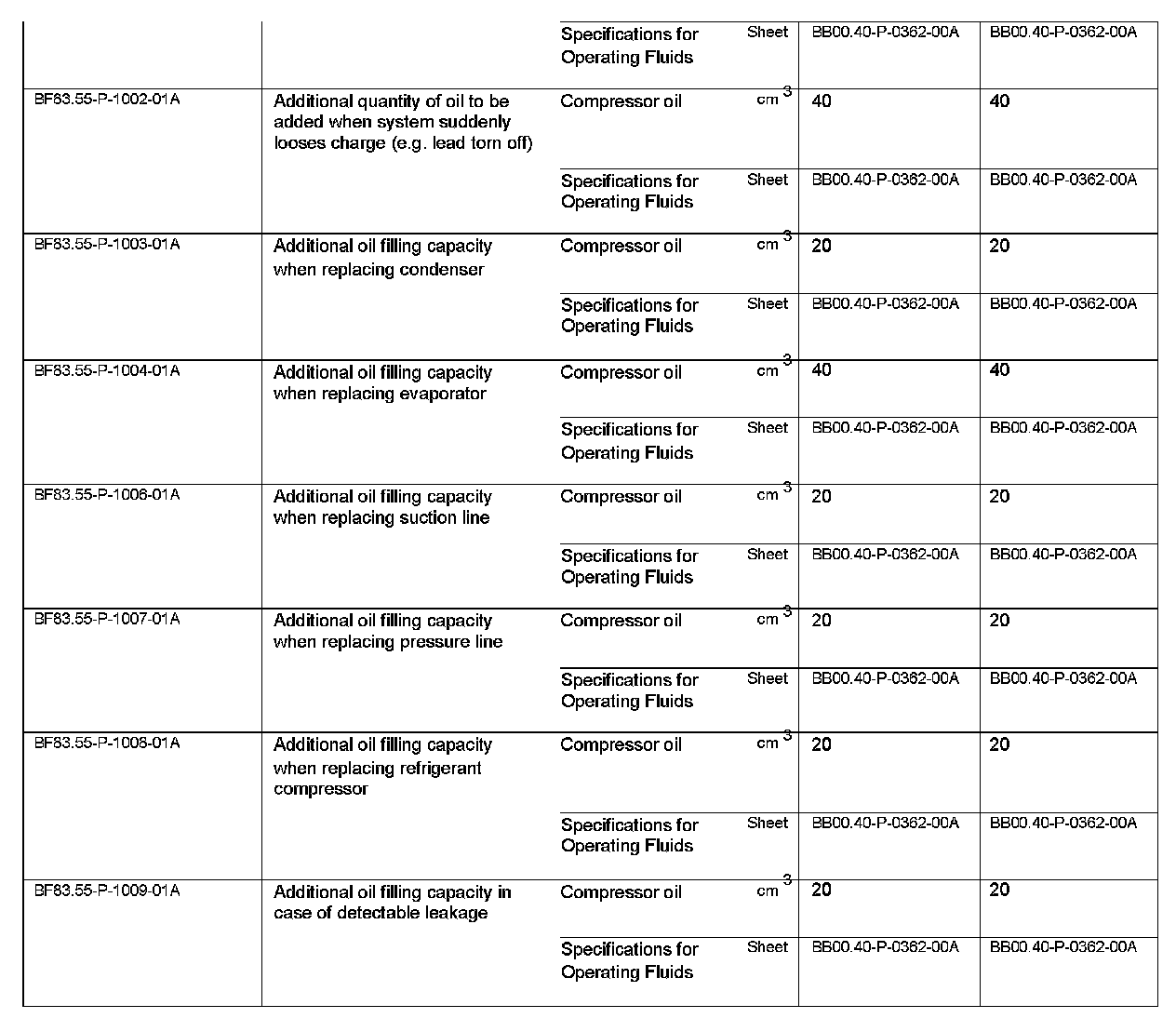

Refrigerant Compressor:

Commercially Available Tools:
