Heating/A/C - Right Footwell Air Outlet Can't Be Closed

Check routing of wiring harness for glove box illumination on air duct/footwell flap in model R171 (affects left-hand drive vehicles). Possible fault codes are 94A8, fault code 95A8.

Topic number LI83.20-P-053516

Version 1

Design group 83.20 Heating

Date 03-28-2012

Validity R 171 affects left-hand drive vehicles (LHD) only.

Reason for change

Complaint:
Right Footwell Air Outlet can not be closed.





Attachments

Cause:
Wiring harness for glove box illumination trapped.

Possible fault code 94A8 "Electrical fault - footwell flap", 95A8 "Mechanical fault - footwell flap" stored in DAS.

Remedy:
1. Remove right footwell paneling.

2. Visual inspection with flashlight.

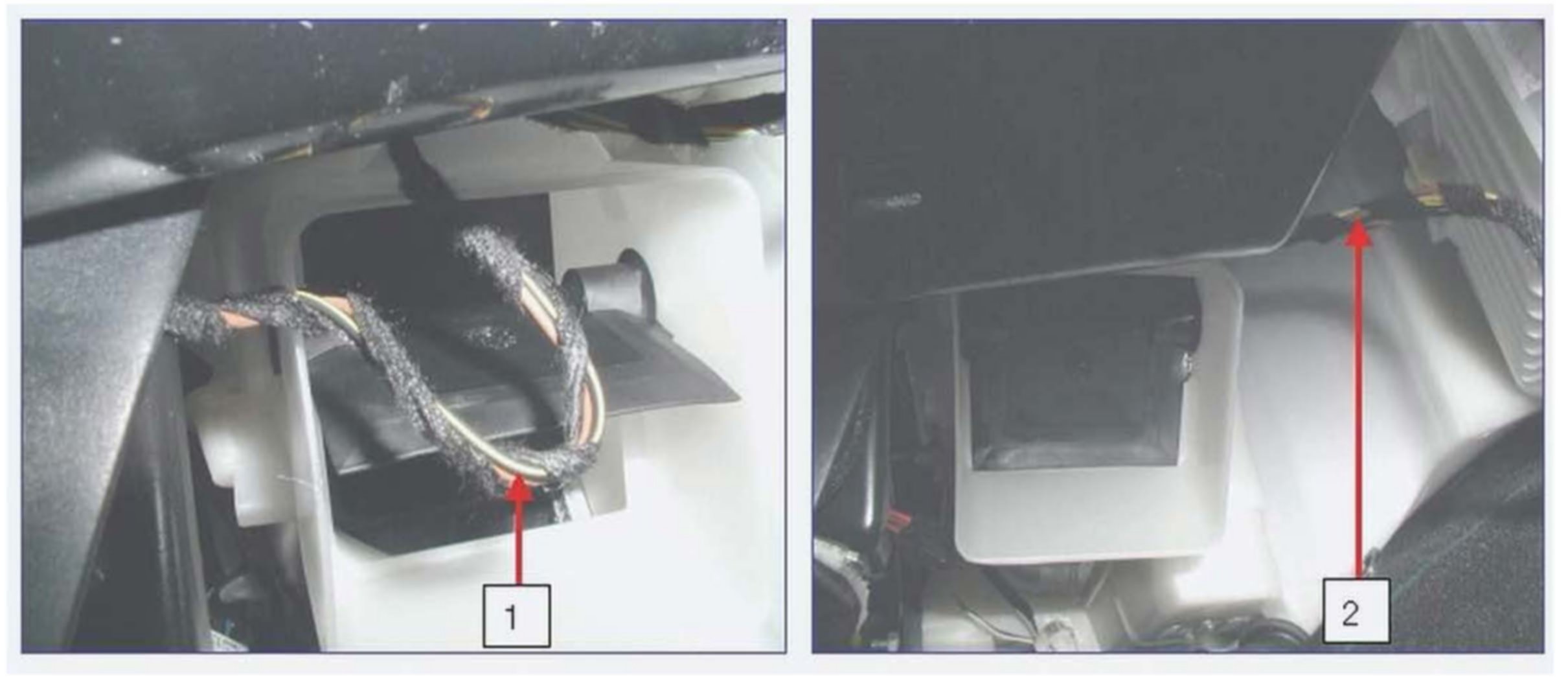

3. The vehicle is NOT OK if the wiring harness is visible in the air duct (see item 1 in attachment).

4. The vehicle is OK if the wiring harness is NOT visible in the air duct (see item 2 in attachment).

5. Reroute wiring harness above air duct and fasten to air duct with self-adhesive felt.

6. Perform function test on footwell flap.

7. Read/erase fault memory if necessary.

Operations: Route wiring harness of glove compartment illumination correctly

WU: 004

Category family: 00.35

Operation number: 02/4346

Vehicles as of VIN: 171...1F008167 are OK.

See: AF54.18-P-6003A.

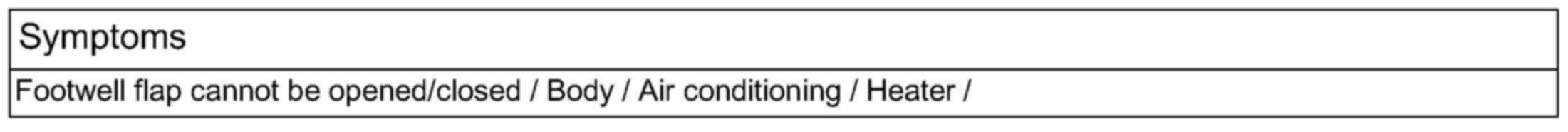

Symptoms

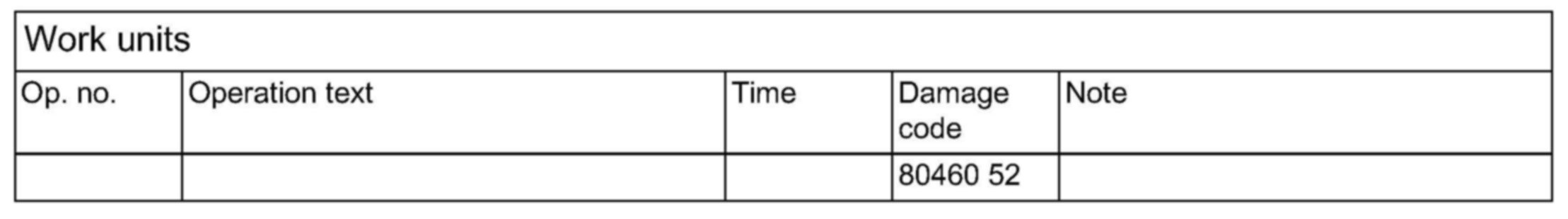

Work units
