GF40.15-P-0002-03SK Tire pressure loss warning (RDW) Mercedes-Benz Driver Information Service
- with CODE (477) Tire pressure loss warning

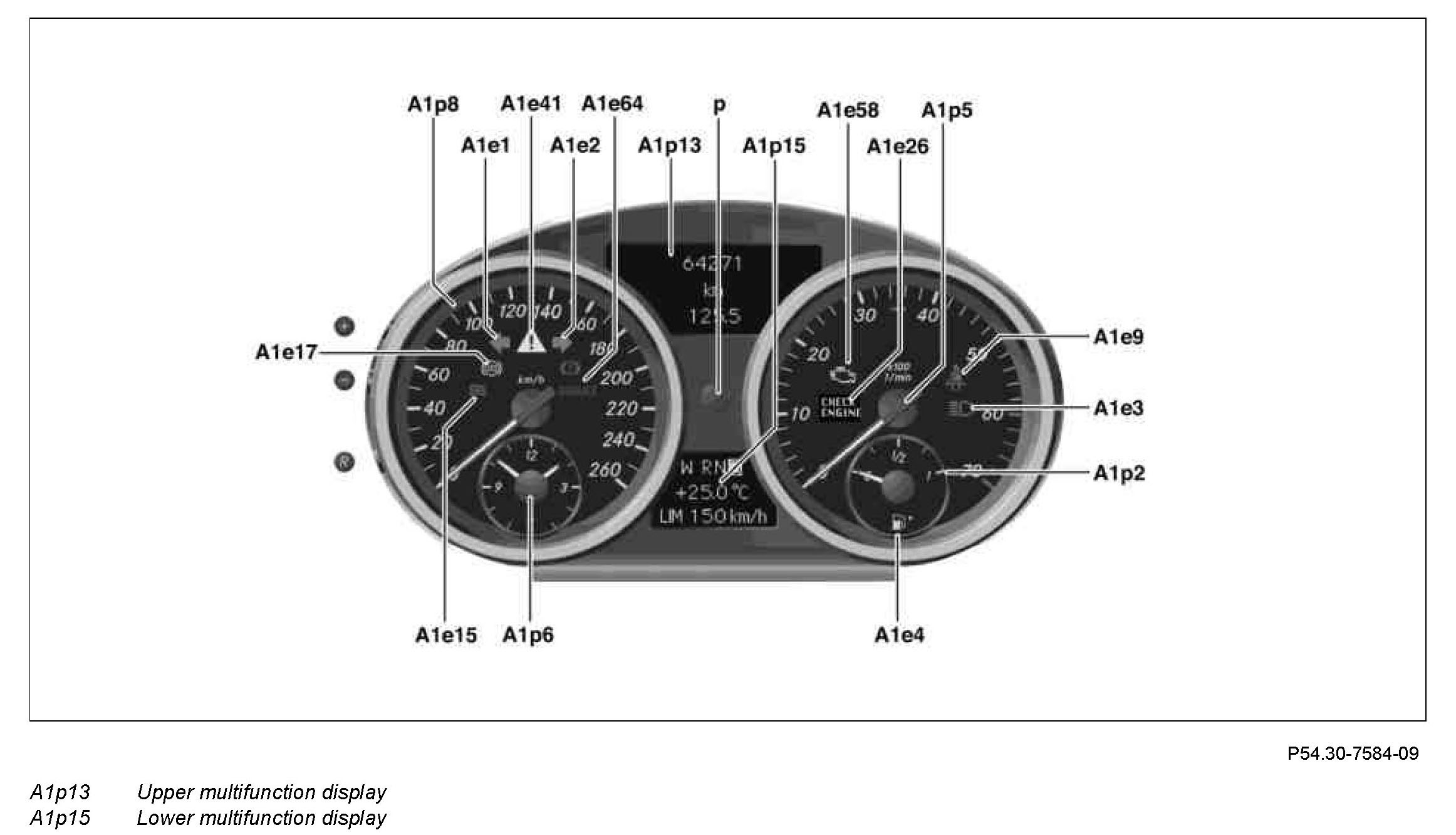

Component Identification:

The tire pressure loss warning (RDW) can be displayed in the top multifunction display (A1p13) in the instrument cluster (A1).

These can be shown as follows:
^ Warning messages
^ Information displays

The messages in the top multifunction display (A1p13) can be shown against a colored background, are acknowledgeable or are not acknowledgeable.

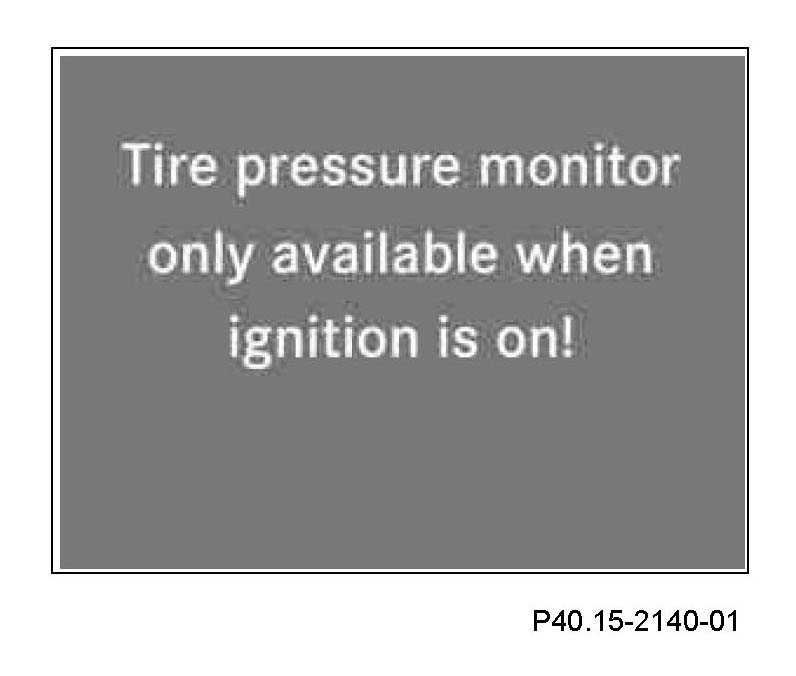

System information
The tire pressure loss warning (RDW) is first available as of "circuit 15 ON".

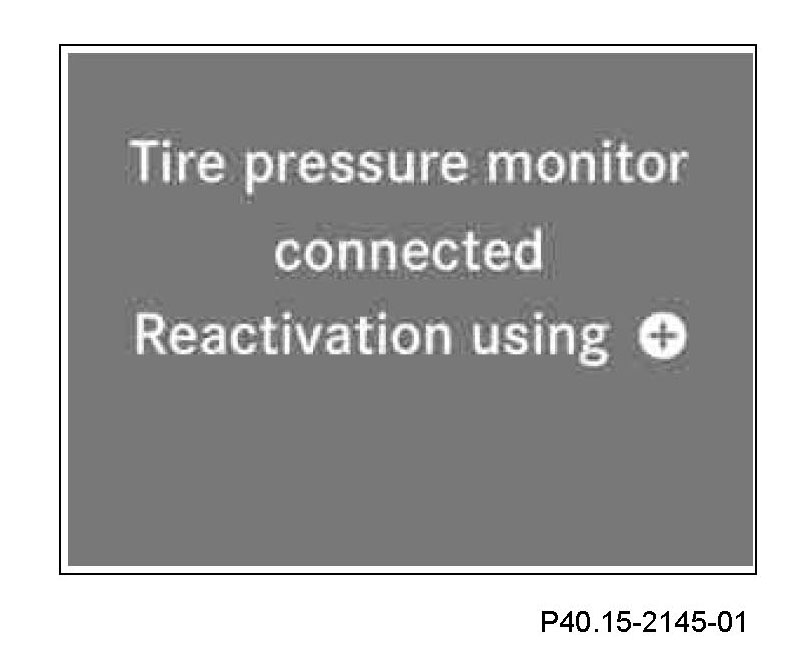

Selection screen
This display appears when a reactivation is performed.

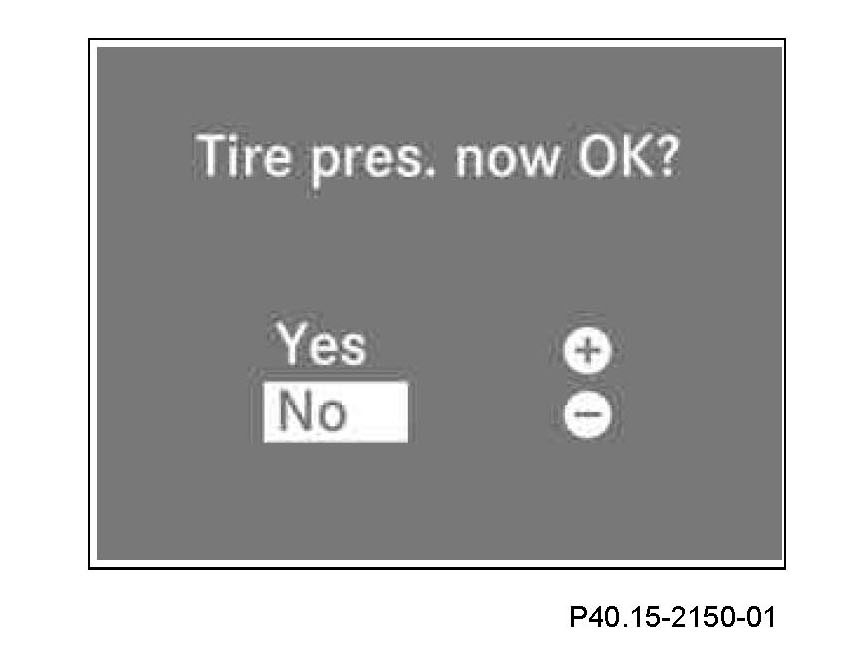

Selection screen
Once the tires have been checked, the confirmation for the tire pressure loss warning (RDW) is given in this display.

If this confirmation does not follow, the tire pressure loss warning (RDW) is not active.

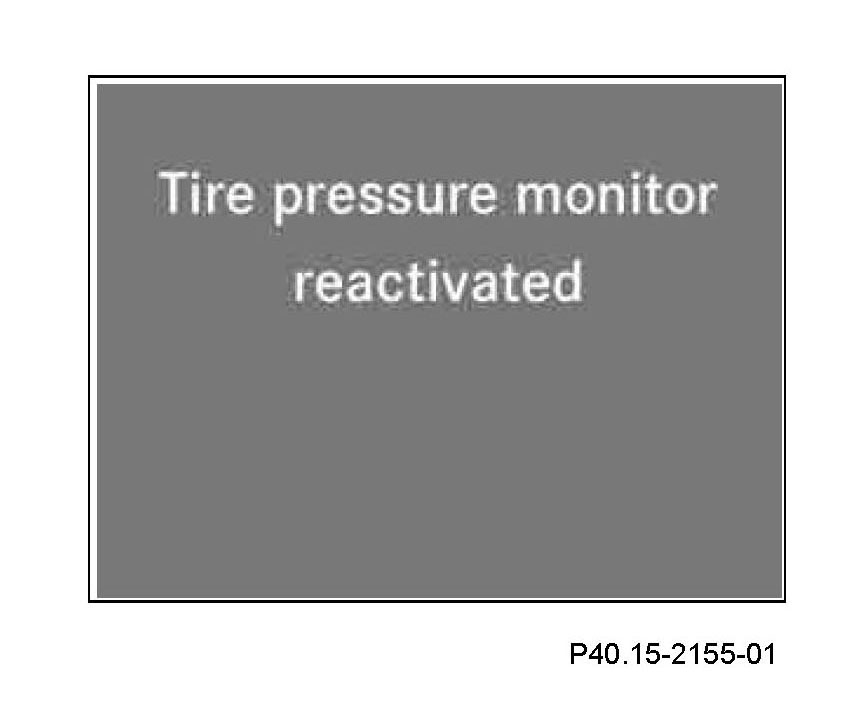

Confirmation screen
This display appears as confirmation that the tire pressure loss warning (RDW) is active.





Warning message
Warning message while driving. The tire pressure loss warning (RDW) has established that the rolling circumferences of the wheels have changed relative to each other. Checking the wheels is necessary.

The message can be acknowledged.





System reminder
The tire pressure loss warning (RDW) has not yet been restarted since the last red warning.

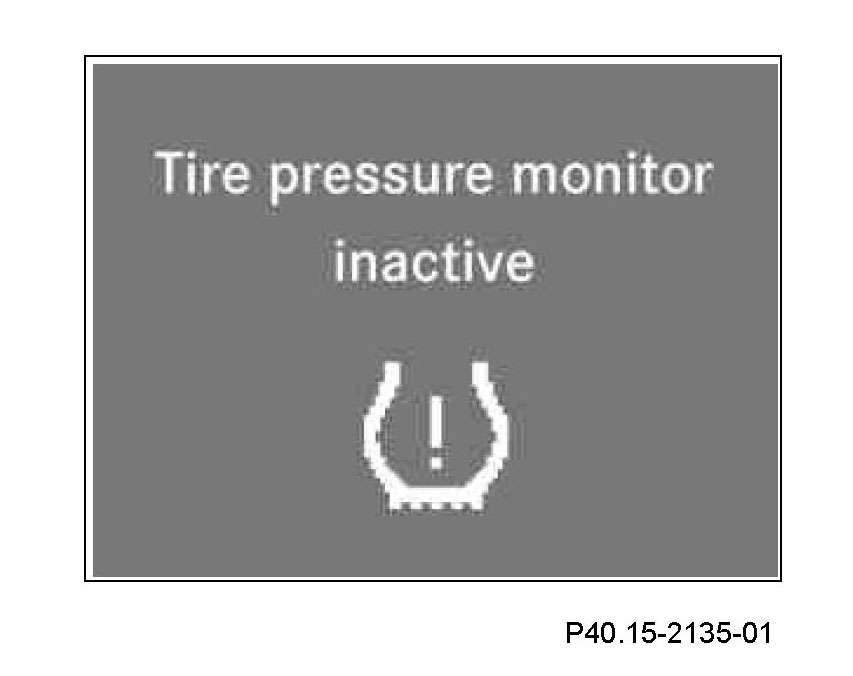

System message
The tire pressure loss warning (RDW) has found a fault in the system. In this display a driver's acknowledgment is no longer possible.

Activation is only possible in the workshop via STAR DIAGNOSIS.
