AR01.00-P-1300-01VA Connect Cylinder Leakage Testing Unit

AR01.00-P-1300-01VA Connect cylinder leakage testing unit

Special Tools:

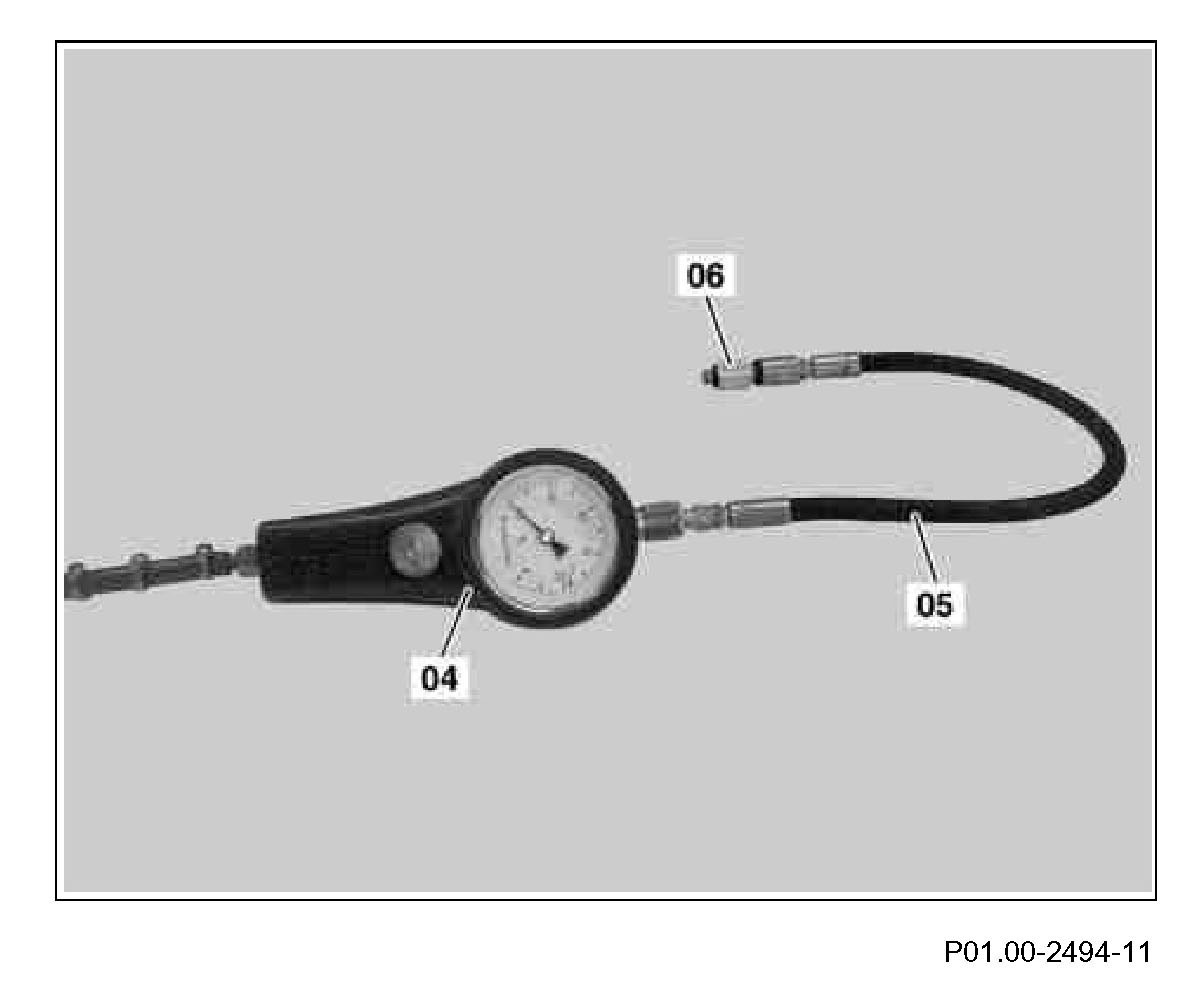

Component Identification:

1 Calibrate cylinder leakage tester (04). tester (pressure loss).
2 Screw threaded adapter (06) to high-pressure testing hose (05).

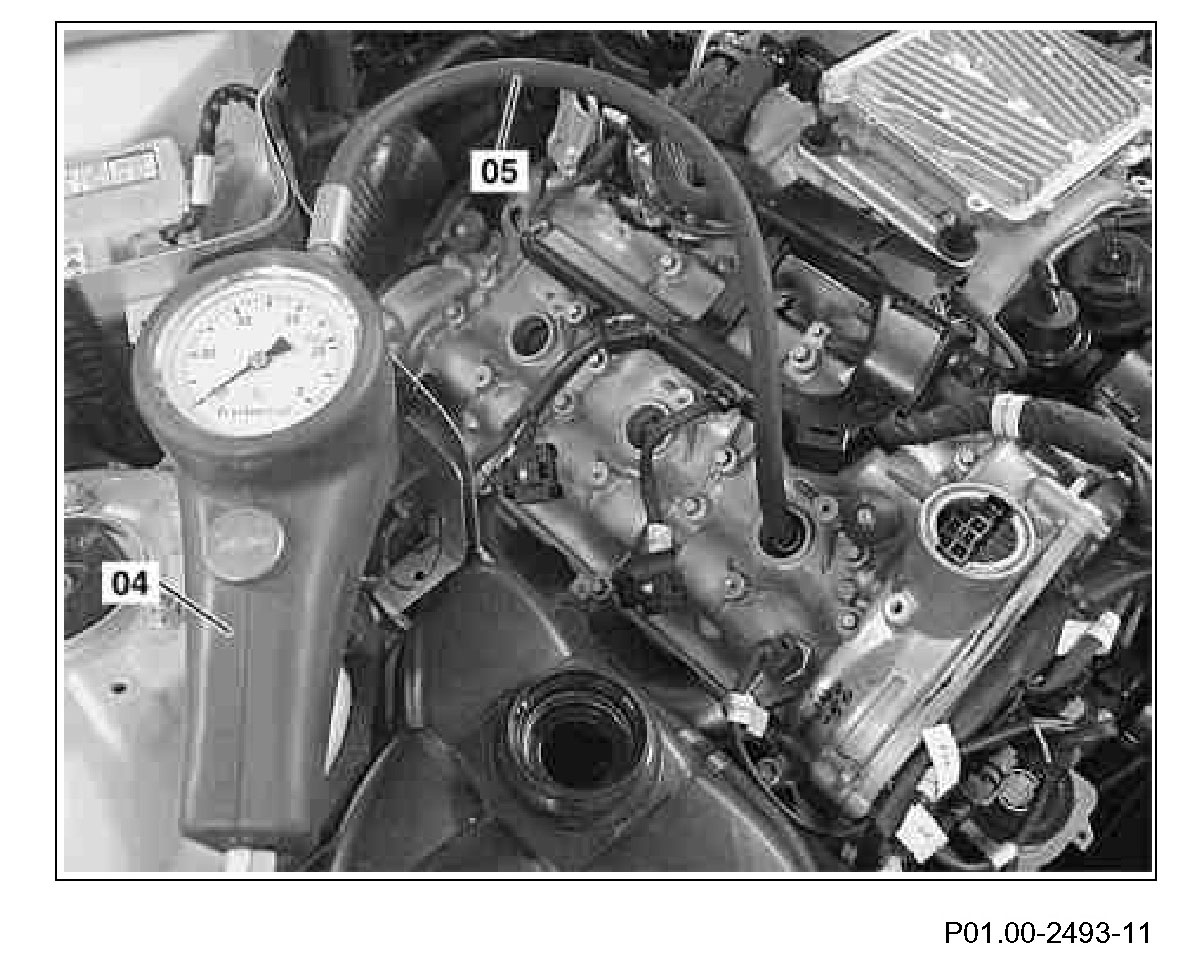

Component Identification:

3 Turn threaded adapter (06) with high-pressure testing hose (05) in tapped bore for spark plug.
4 Mount high-pressure testing hose (05) on cylinder leakage tester (04).
