AR03.10-P-6111-02VA Tighten Connecting Rod Bolts

AR03.10-P-6111-02VA Tighten connecting rod bolts

Connecting rod:

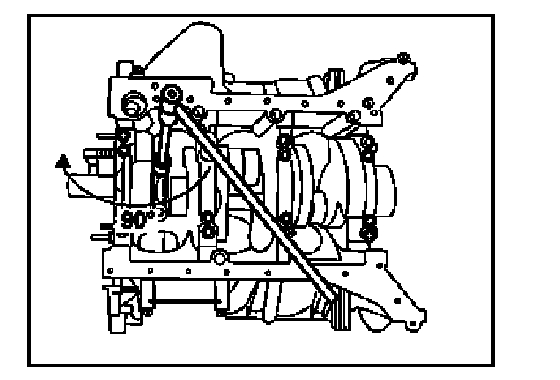

Shown on engine 272:

1 Lubricate the bolt thread and head contact surface with engine oil.
2 Tighten connecting rod bolts to step 1.
3 Tighten connecting rod bolts to step 2.
4 Tighten connecting rod bolts to step 3.
If no angle tightener is available, continue turning the connecting rod bolts to the specified angle using a socket wrench and locking handle.
Do not use a flexi-rod torque wrench for tightening in order to avoid any angle errors.
