AR40.30-P-0420A Measuring Rear Axle Steering/Suspension Components (on Car)

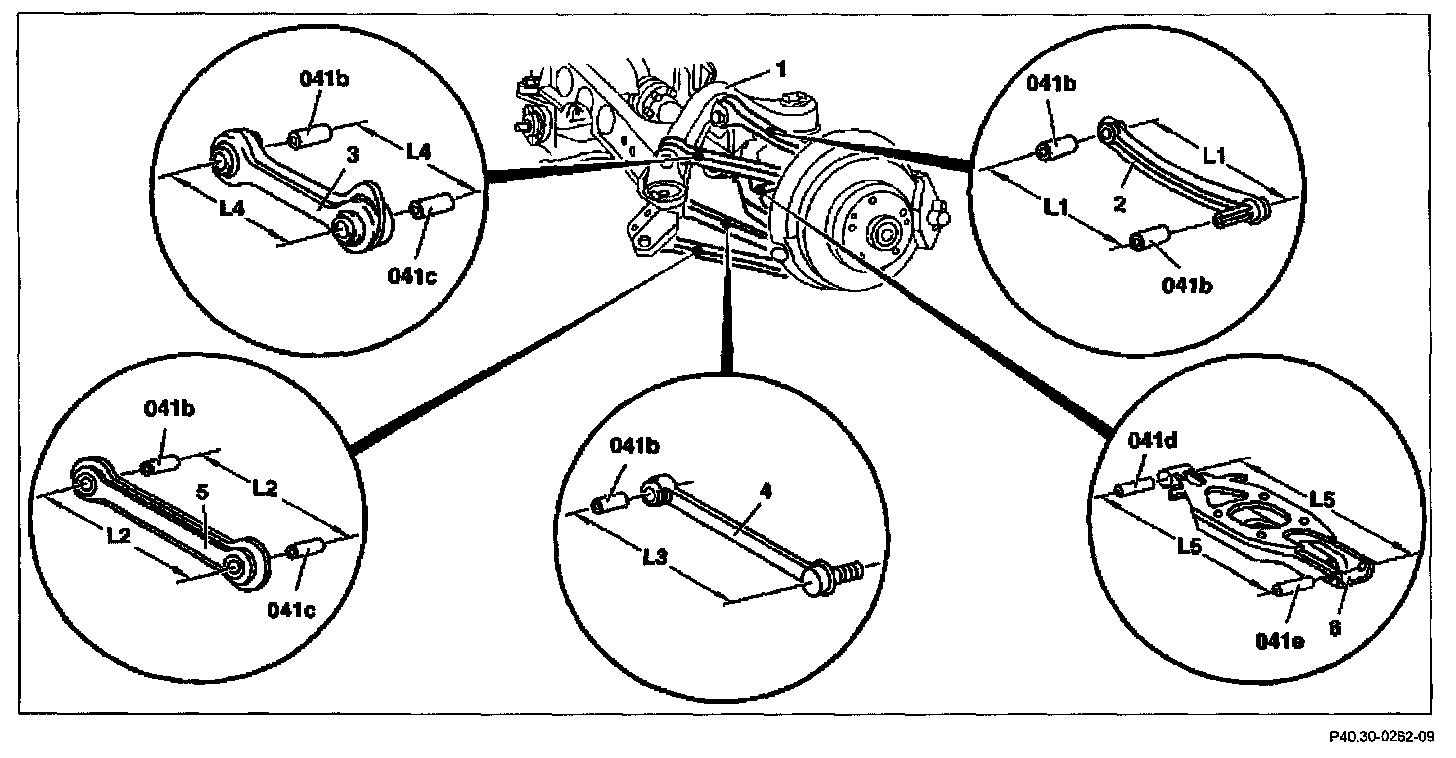

Measuring Spring Link, Camber Strut, Torque Strut, Thrust Arm and Tie Rod on Rear Axle







1 Remove/install camber strut (2)
2 Insert/remove plug gauges (041a, 041b)
3 Measure dimension "L1" on both sides
4 Remove/install torque strut (3)
5 Insert/remove plug gauges (041b, 041c)
6 Measure dimension "L4" on both sides
7 Remove/install tie rod (4)
8 Insert/remove plug gauge (041b)
- Mark center point of tie rod end
9 Measure dimension "L3"
10 Remove/install thrust arm (5)
11 Insert/remove plug gauges (041b, 041c)
12 Measure dimension "L2" on both sides
13 Remove/install spring link (6)
14 Insert/remove plug gauges (041d, 041e)
15 Measure dimension "L5" on both sides
