GF27.10-P-3020SK Locking of Selector Lever Position "P", Function

GF27.10-P-3020SK Locking of selector lever position "P", function
- Transmission 722.6

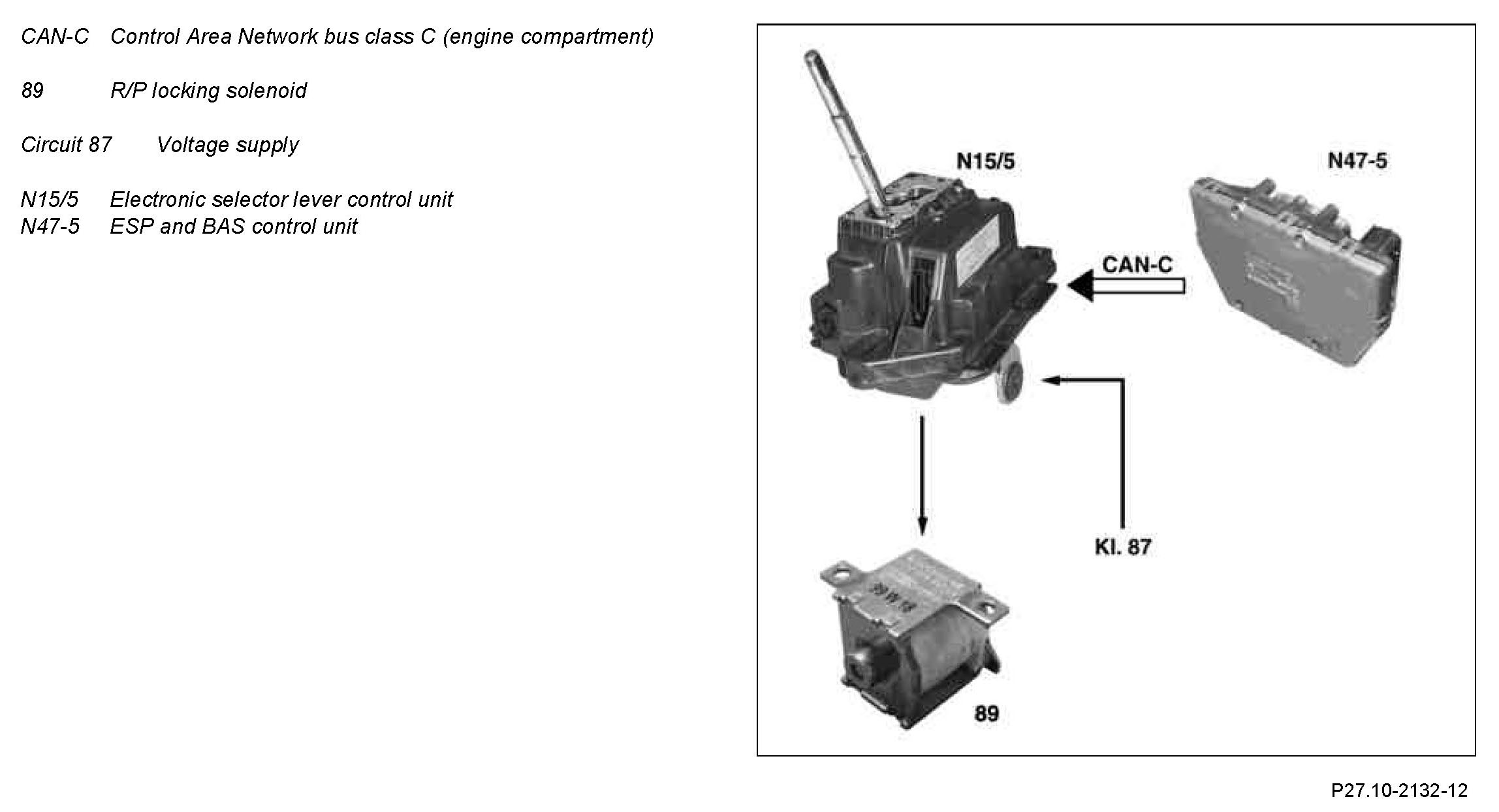

Component Identification:

One of the functions of the shift lock is to lock the selector lever in position "P". The selector lever is locked electronically. The selector lever remains locked in position "P" when the brake is not operated or there is no voltage supply (circuit 87) to the electronic selector lever module control unit (N15/5).

As of "ignition ON" the electronic selector lever module control unit (N15/5) actuates the R/P locking magnets (89) when the brake pedal is pressed and selector lever position "P" is detected. The R/P locking magnet (89) releases the selector lever thus allowing the selector lever to be moved away from position "P".
