GF27.19-P-5127-02O Speed Sensor - Function

GF27.19-P-5127-02O Speed sensor - Function
- Transmission 722.9
- Output speed sensor

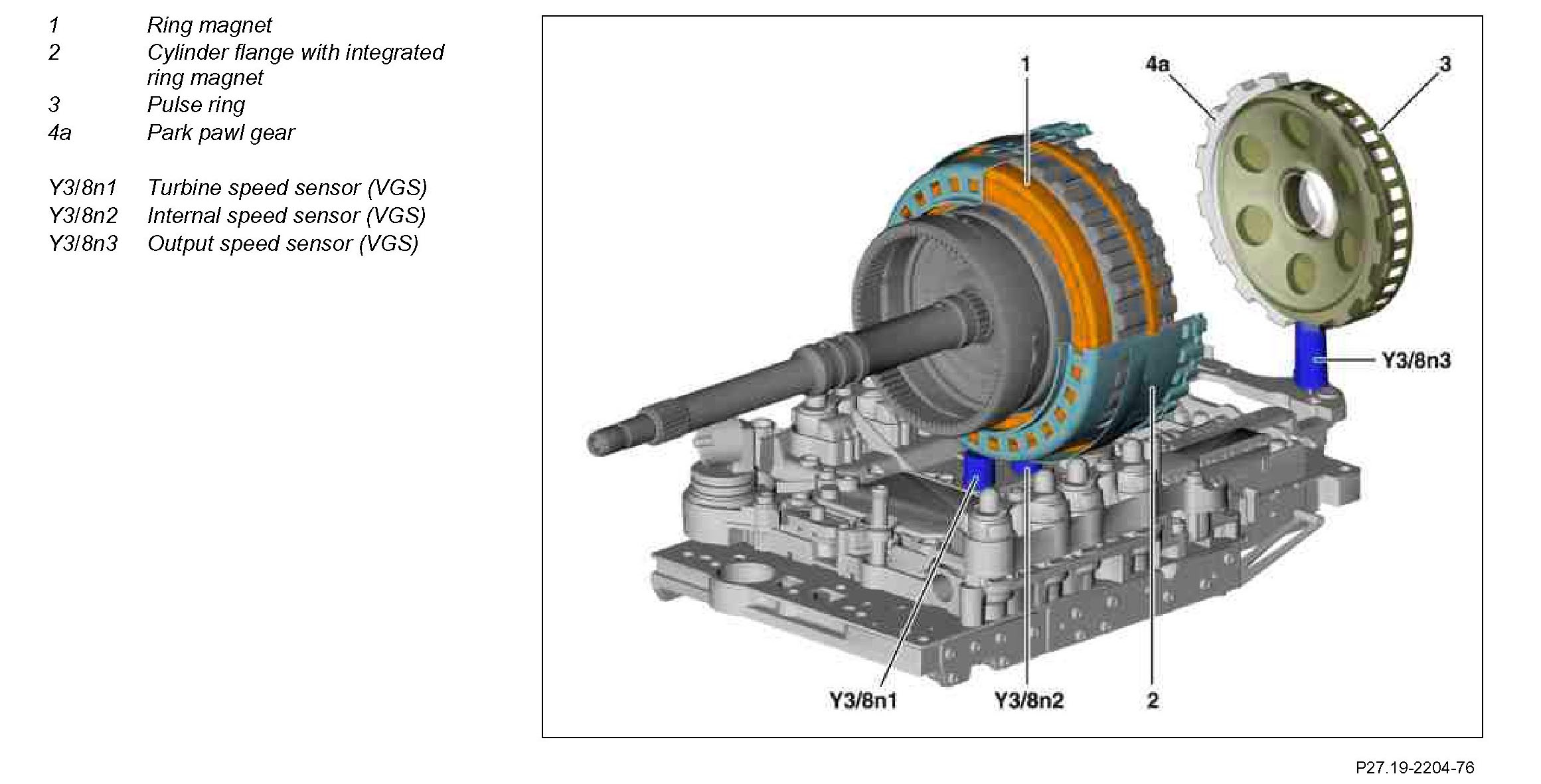

Component Identification:

The output speed sensor (VGS) (Y3/8n3) records the transmission output speed at the park pawl gear (4a) for the fully integrated transmission control (VGS).

Together with the information from the turbine speed sensor (VGS) (Y3/8n1) and from the internal rpm sensor (VGS) (Y3/8n2) this rpm is processed as an input signal by the fully integrated transmission control unit (VGS) (Y3/8n4). This contributes to shortening the reaction time during shift operations.
