GF27.19-P-5137-04SKB Steering Wheel Gear Shifter, Function

GF27.19-P-5137-04SKB Steering wheel gear shifter, function
- Transmission 722.6
- with CODE (428) Steering wheel shift buttons

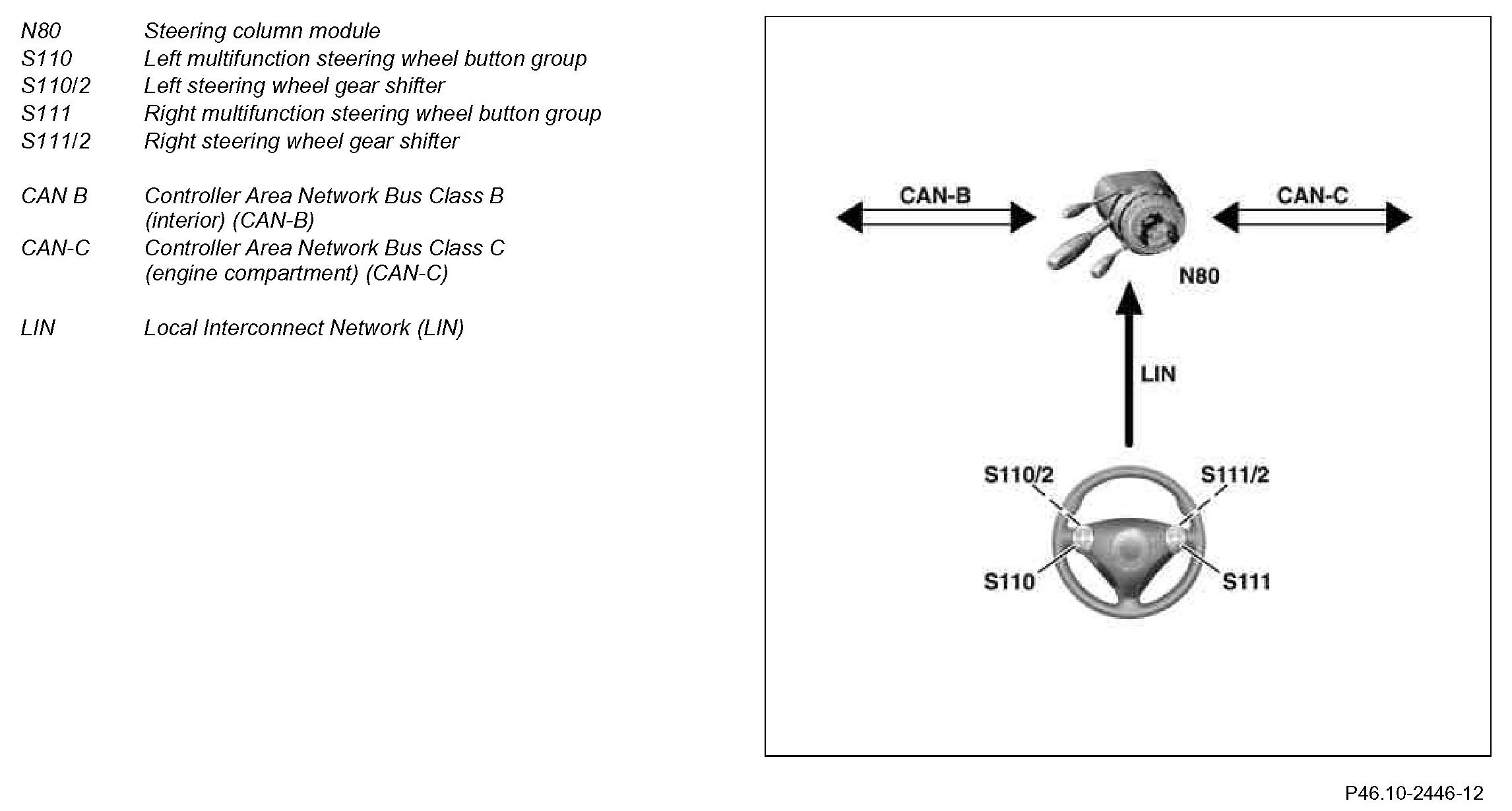

Component Identification:

The status of the left steering wheel gear shifter (S110/2) and right steering wheel gear shifter (S111/2) is read by the steering column module (N80) via LIN (LIN). The steering column module (N80) places the request "Upshift" or "Downshift" on the CAN-C (CAN-C).

The ETC [EGS] control unit receives the request and initiates the gear change.

Gear changes which could result in impermissibly high or low engine speeds are not performed.
