GF27.51-P-5103-03N Multi-Disk Clutch, Design

GF27.51-P-5103-03N Multi-disk clutch, design
- Transmission 722.9

Component Identification:

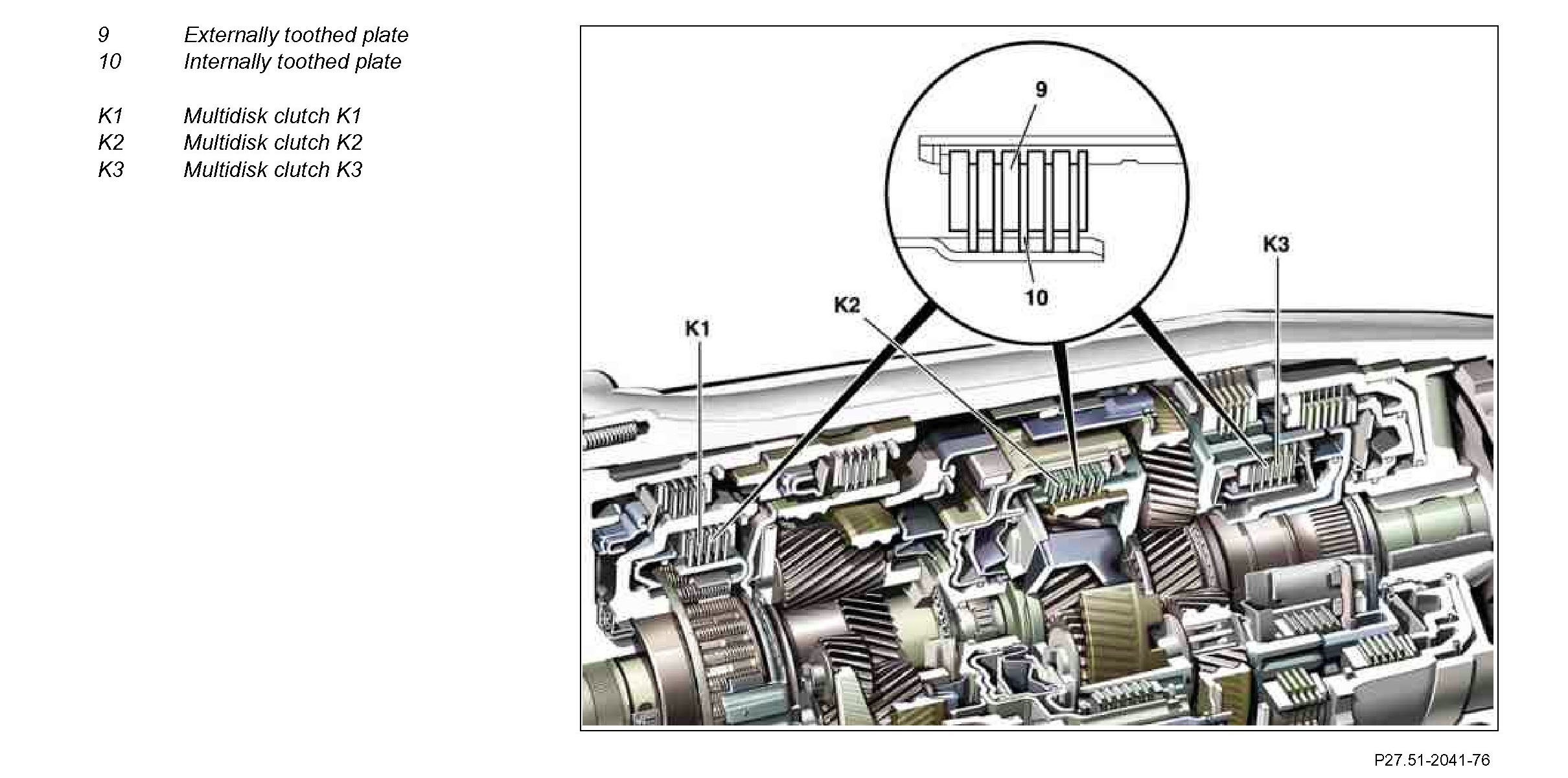

A multi-disk clutch consists of a number of internally toothed plates (10) on an internal plate carrier and externally toothed plates (9) on an externally toothed plate carrier. Single-sided lamella are used on the K1 multidisk clutch (K1), on the K2 multidisk clutch (K2) and on the K3 multidisk clutch (K3).

On this type of lamella the friction lining is only applied on one side. Among other things, this improves heat distribution in the disk pack, the design of the disk pack is more compact, the load bearing capacity is increased and the mass is reduced.
