AR35.31-P-0530-04P Measure and Note Down Total Friction Torque of Drive Pinion

AR35.31-P-0530-04P Measure and note down total friction torque of drive pinion
- rear axle center assembly dia. 198

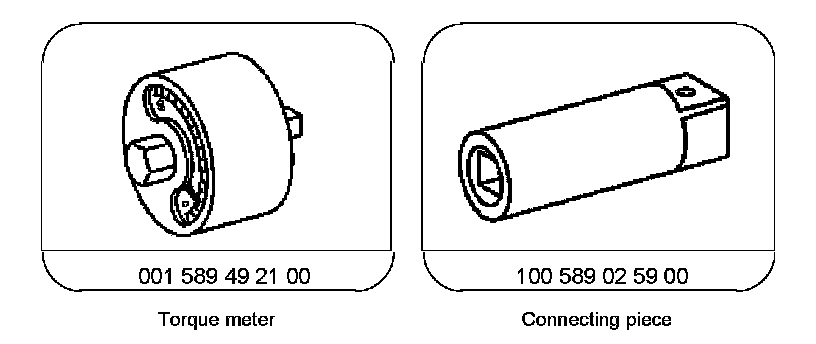

Special Tools:

Component Identification:

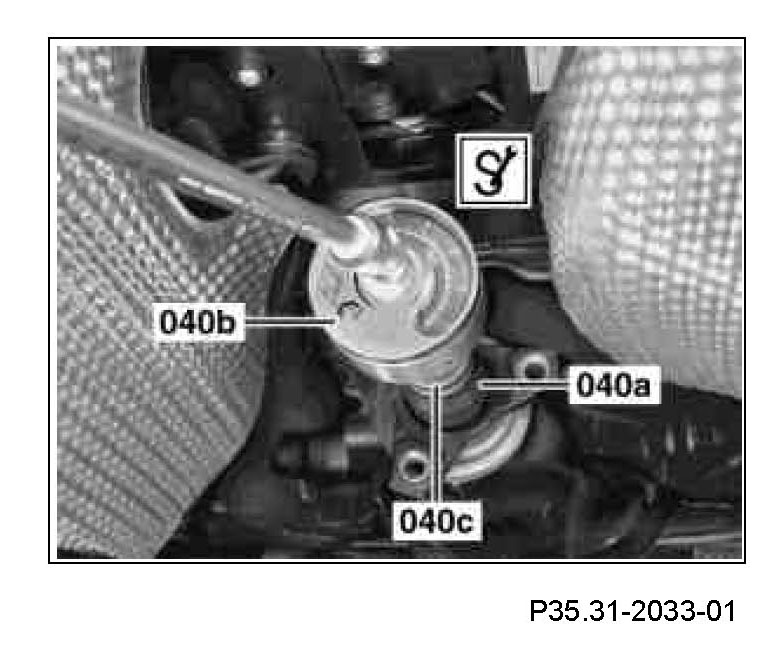

1 Measure and note total friction torque with socket (040a), connection piece (040c) and torque meter (040b) on twelve-point collar nut.

The friction value before slacking and after tightening the twelve-point collar nut must be the same.
