AR35.31-P-0550-04T Pulling Tapered Roller Bearing Inner Races Off Differential

AR35.31-P-0550-04T Pulling tapered roller bearing inner races off differential
- Rear axle center assembly dia. 198 [models 171.456, 211.056/256 up to 31.5.06, 211.065/082/087]

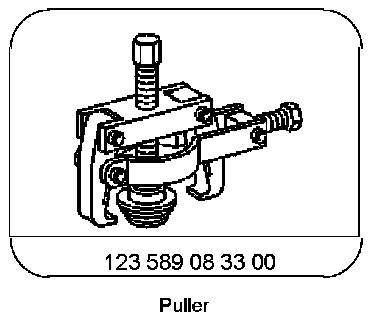

Special Tools:

Component Identification:

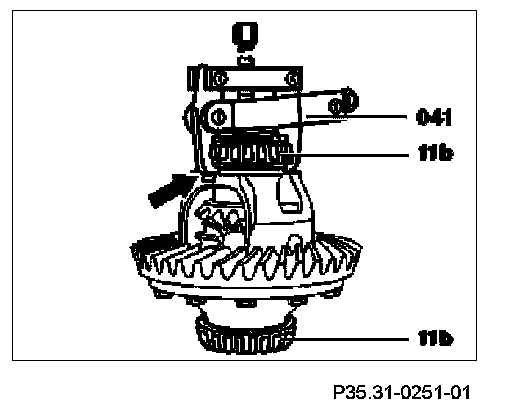

1 Fit puller (041) to the recesses (arrow) and detach both tapered roller bearings inner races (11b) from the differential.
2 Mark tapered roller bearing inner races (11b).
