AR35.31-P-0550-14T Pull Tapered Roller Bearing Outer Races Into Rear Axle Housing

AR35.31-P-0550-14T Pull tapered roller bearing outer races into rear axle housing
- Rear axle center assembly dia. 198 [models 171.456, 211.056/256 up to 31.5.06, 211.065/082/087]

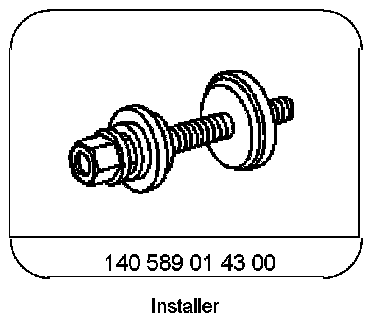

Special Tools:

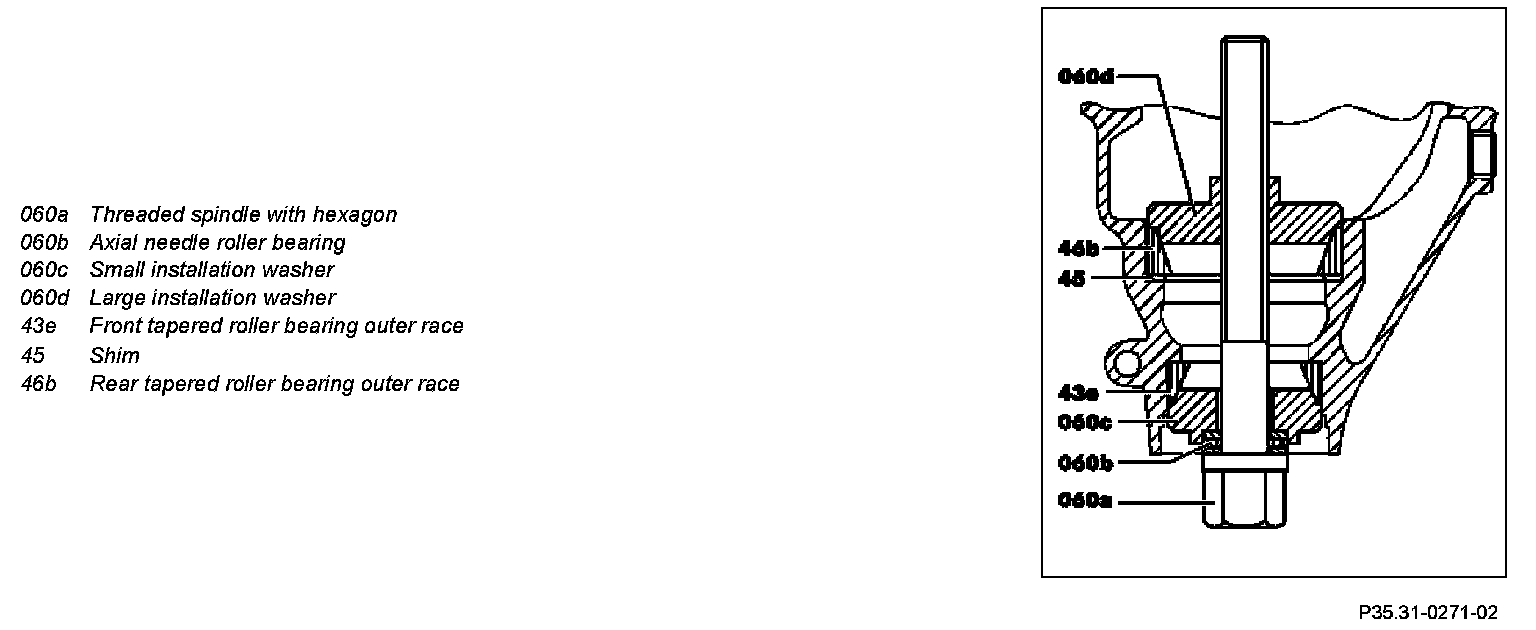

Component Identification:

1 Pull in the front tapered roller bearing outer race (43e) and rear tapered roller bearing outer race (46b) all the way into the rear axle housing using the installer (060a to 060d).

Ensure that the shim (45) is inserted. Do not tilt the tapered roller bearing-outer races (43e, 46b) when pulling in.
