AR35.31-P-0550-19T Mounting Crown Wheel on Differential

AR35.31-P-0550-19T Mounting crown wheel on differential
- Rear axle center assembly dia. 198 [models 171.456, 211.056/256 up to 31.5.06, 211.065/082/087]

Modification Notes:

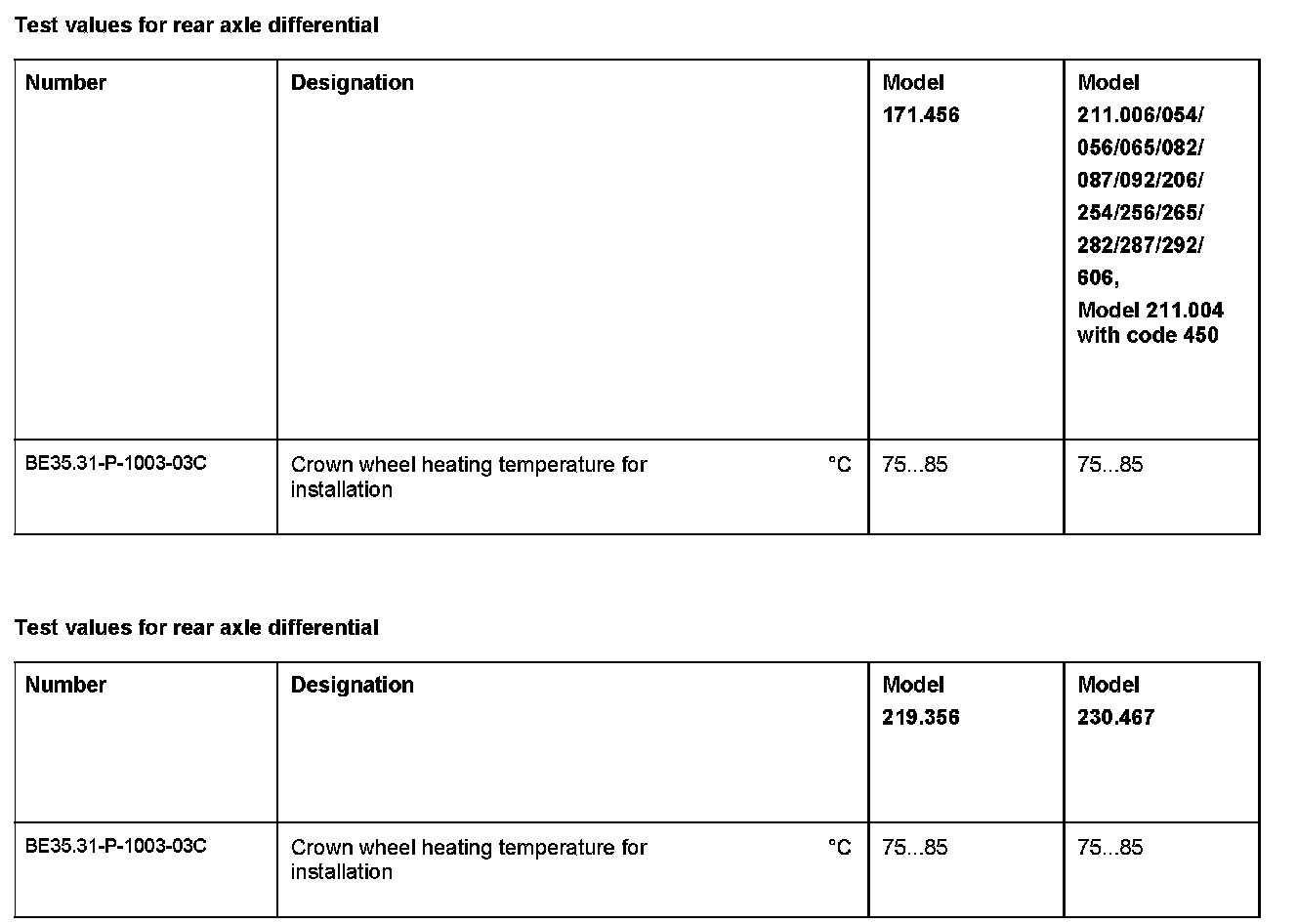

Test Values For Rear Axle Differential:

Rear Axle Center Assembly Crown Wheel:

Special Tools:

Component Identification:

1 Carefully clean the ring gear bore as well as the ring gear seat on the differential case.

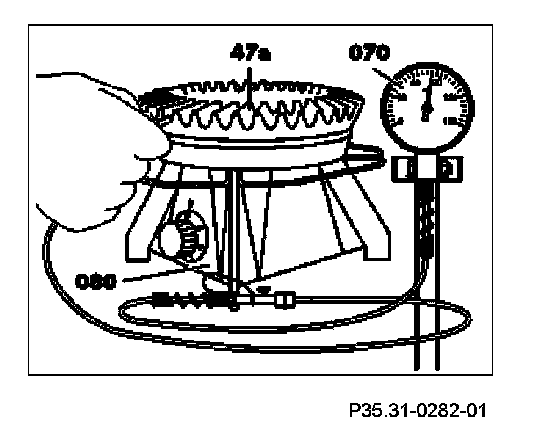

2 Heat ring gear (47a) to installation temperature using heating plate (080). Check temperature constantly using remote thermometer (070).

Component Identification:

3 Using assembly mandrel (046), clamp differential case in vise.
4 Put on suitable heat protection gloves, mount ring gear (47a) on the differential case and apply some light hammer blows (rubber-headed hammer) if necessary.

Pay attention to any markings (arrow) applied to the ring gear (47a) and differential case.

Component Identification:

5 Tighten ribbed retaining bolts (13a) for securing the ring gear (47a) evenly and in a cross pattern.

Safety bolts with ribs (13a) must always be replaced after being used once.
