AR35.31-P-0550-29T Securing Hexagon Collar Nut on Drive Pinion Joint Flange

AR35.31-P-0550-29T Securing hexagon collar nut on drive pinion joint flange
- Rear axle center assembly dia. 198 [models 171.456, 211.056/256 up to 31.5.06, 211.065/082/087]

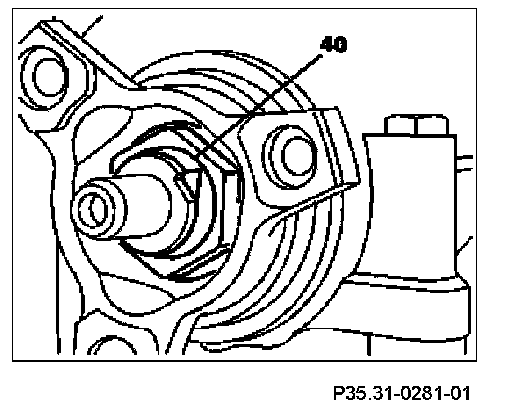

Component Identification:

1 Using a caulker, caulk the hexagon-collar nut (40) into one of the two grooves of the drive pinion such that there is no longer a gap between the groove and the locking tab. Do not apply heavy axial blows in order to avoid damage.
