AR35.31-P-0560-02T Driving Out and Driving In Differential Pin and Roll Pin

AR35.31-P-0560-02T Driving out and driving in differential pin and roll pin
- Rear axle center assembly dia. 198 [models 171.456, 211.056/256 up to 31.5.06, 211.065/082/087]

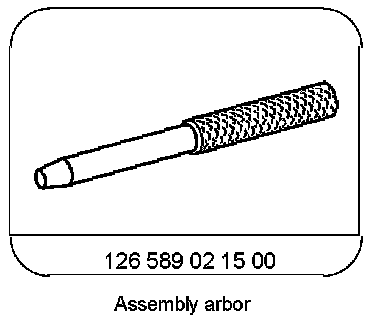

Special Tools:

Removal:

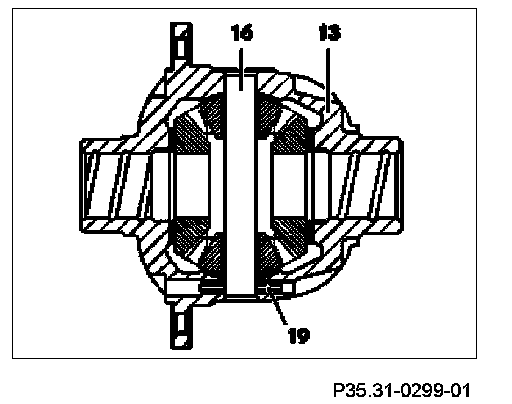

Component Identification:

1 Using a suitable drift, hammer roll pin (19) for the differential pinion shaft (16) out of the differential case (13).
2 Use assembly arbor to knock differential pinion shaft (16) out of differential case (13).

Installation
3 Use assembly arbor to knock differential pinion shaft (16) into differential case (13).

In the process pay attention to the bore for the roll pin (19).

4 Knock in new roll pin (19) until it is seated centrally in differential pinion shaft (16).
