AR35.31-P-0560-04T Installing Differential Side Gears and Differential Bevel Gears

AR35.31-P-0560-04T Installing differential side gears and differential bevel gears
- Rear axle center assembly dia. 198 [models 171.456, 211.056/256 up to 31.5.06, 211.065/082/087]

Special Tools:

Component Identification:

1 Insert assembly arbors (046) 116 589 18 61 00 into drill holes of differential case.
2 Mount both rear axle side gears (17) with thrust plates (18) on the assembly arbor (046) in the differential case.

Component Identification:

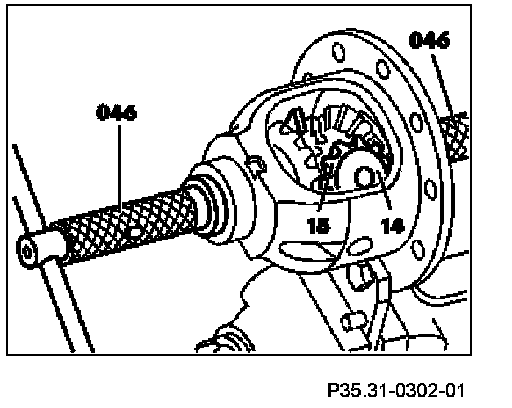

3 Position both differential bevel gears (15) and spherical washers (14) together and exactly opposite in the differential case and screw in using assembly arbors (046).

Component Identification:

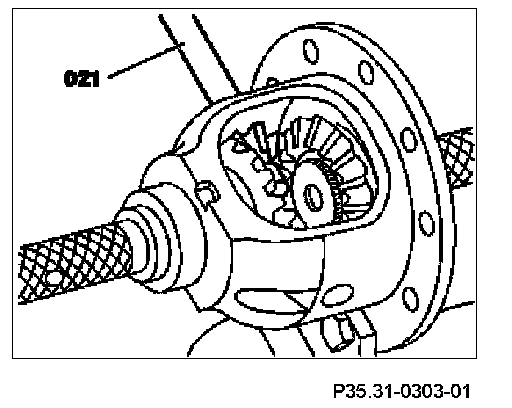

4 Instead of differential pinion shaft, push assembly arbor (021) 126 589 02 15 00 into differential case to secure differential pinions and spherical washers.
