AR35.31-P-0560-05T Check Friction Torque of Differential

AR35.31-P-0560-05T Check friction torque of differential
- Rear axle center assembly dia. 198 [models 171.456, 211.056/256 up to 31.5.06, 211.065/082/087]

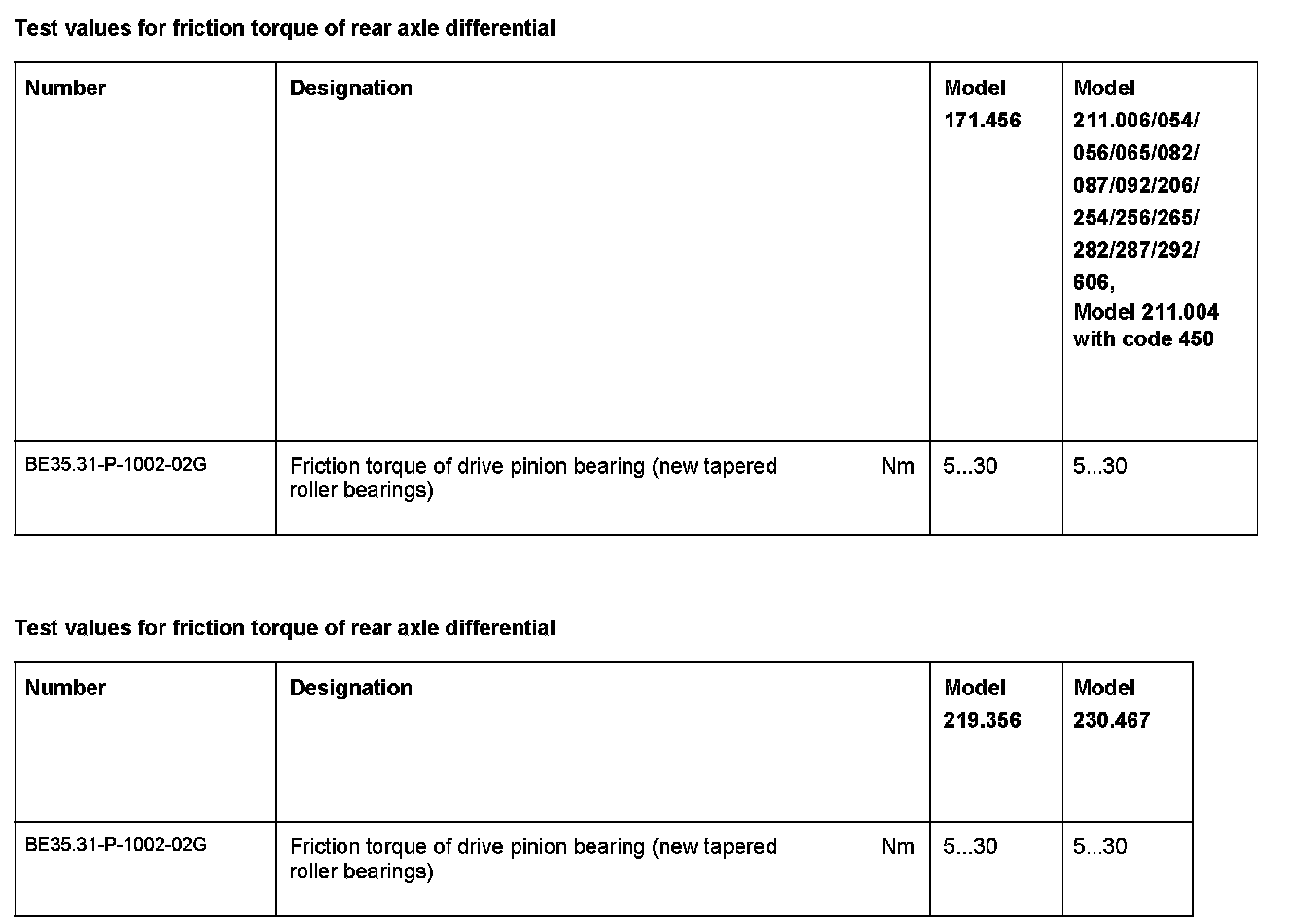

Test Values For Friction Torque Of Rear Axle Differential:

Component Identification:

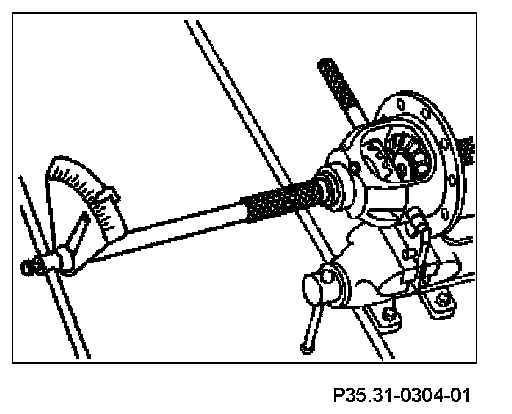

1 Check friction torque.

If the friction torque differs from the specified value, thrust washers of a different thickness must be installed.
