AR67.10-P-1000-02V Replace Window Rubber Spacers

AR67.10-P-1000-02V Replace Window Rubber Spacers

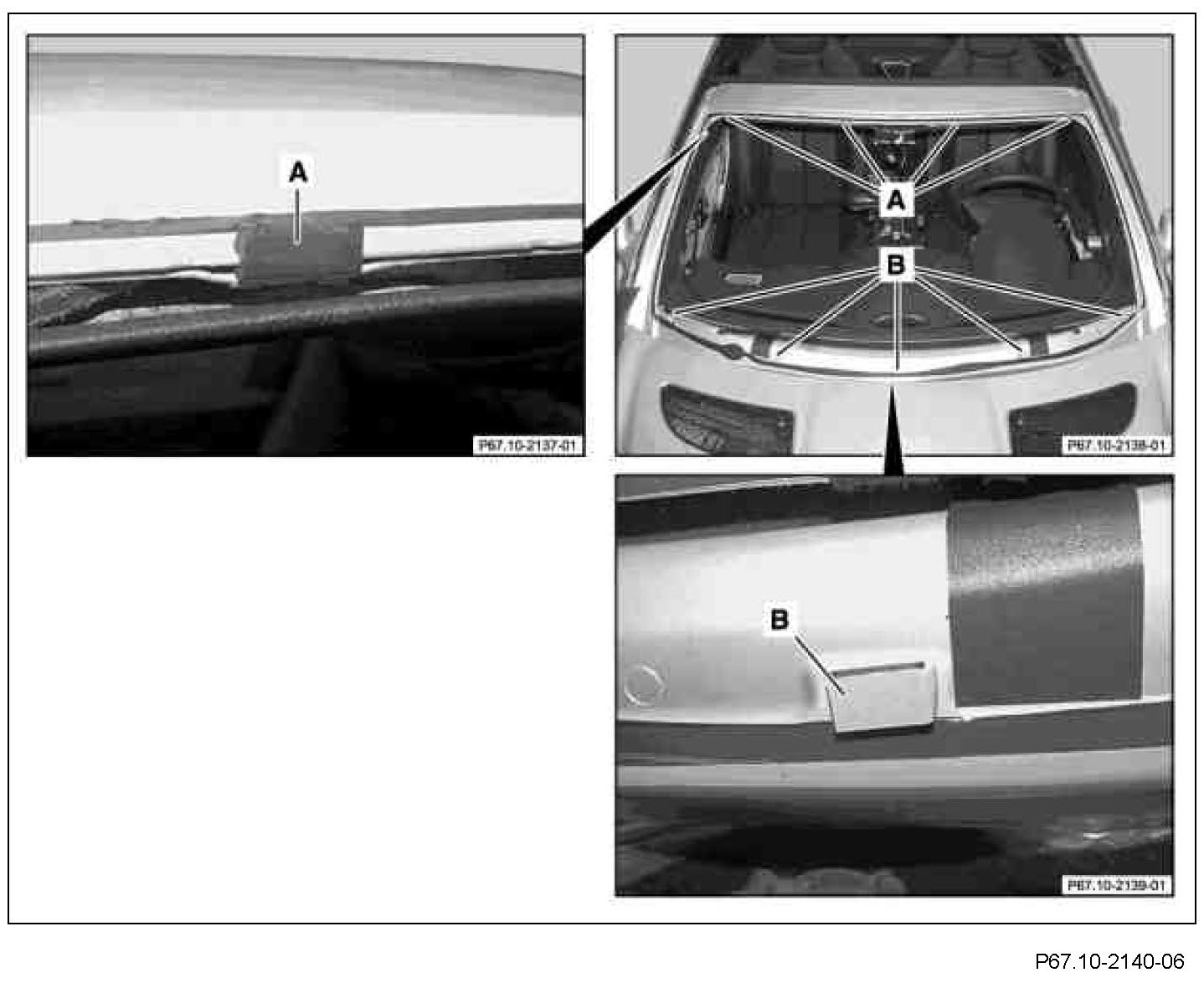

1. Press spacer bracket "A" into gap on upper body flange.
2. Glue rubber window spacers "B" onto elevations on bottom body flange.
Do not remove protective foil
Location of spacer bracket and rubber window spacers (see figure at top right).
