Procedures

AR54.30-P-1000-02OPM Perform Adjustments to the Control System
Check Engine Oil Level

The vehicle must be horizontal for at least 5 minutes with the engine switched off at operating temperature.
Otherwise measurement errors can occur.
1 Switch on ignition.

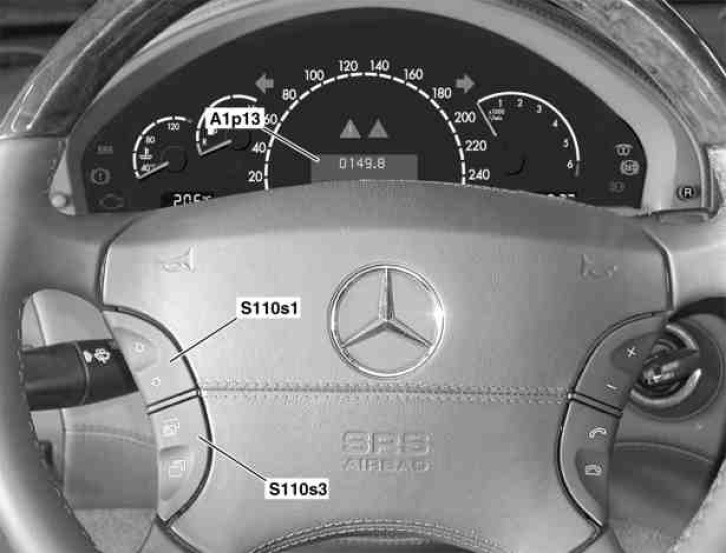

Shown on model 220
A1p13 Multifunction display (model 215, 220)
A1p13 Left multifunction display (model 230)
S110s1 Scroll forward/back button
S110s3 System selection button

2 Press the system selection button (S110s3) repeatedly until the kilometer reading is displayed in the multifunction display (A1p13).
3 Press the scroll back and forward button (S110s1) repeatedly until "CORRECT MEASUREMENT ONLY WHEN VEHICLE IS STATIONARY AND ON THE LEVEL" appears in the multifunction display (A1p13).
After 3 seconds "ENGINE OIL MEASUREMENT RUNNING" is displayed.
4 Refill the engine with the engine oil quantity shown in the multifunction display (A1p13) and check the engine oil quantity again.
5 Switch off ignition.
