GF07.61-P-0001-06SM Engine Electronics (ME-SFI) Fuel Injection and Ignition System Control Unit Input Signals
GF07.61-P-0001-06SM Engine Electronics (ME-SFI) Fuel Injection And Ignition System Control Unit Input Signals

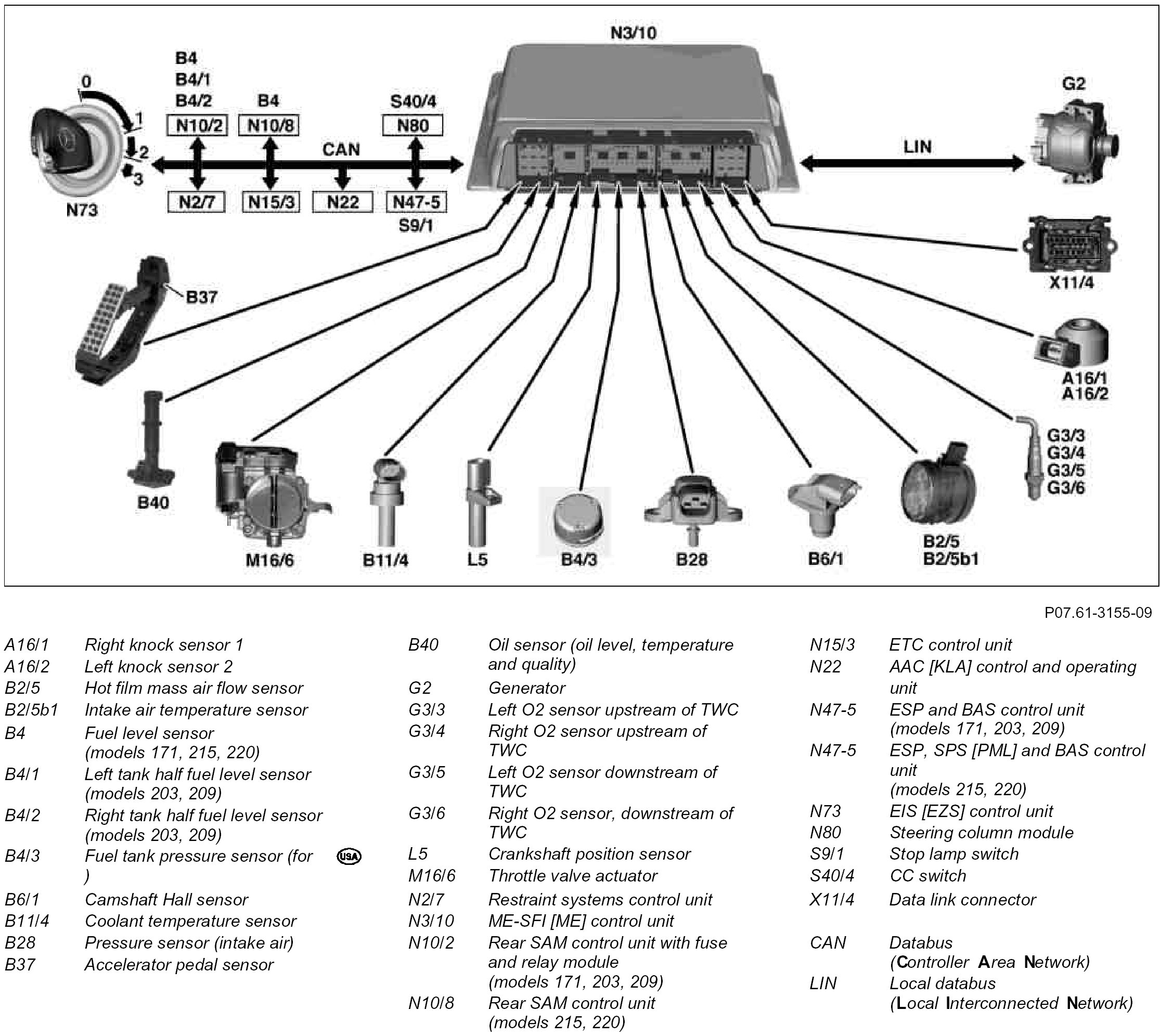

Component Identification:
